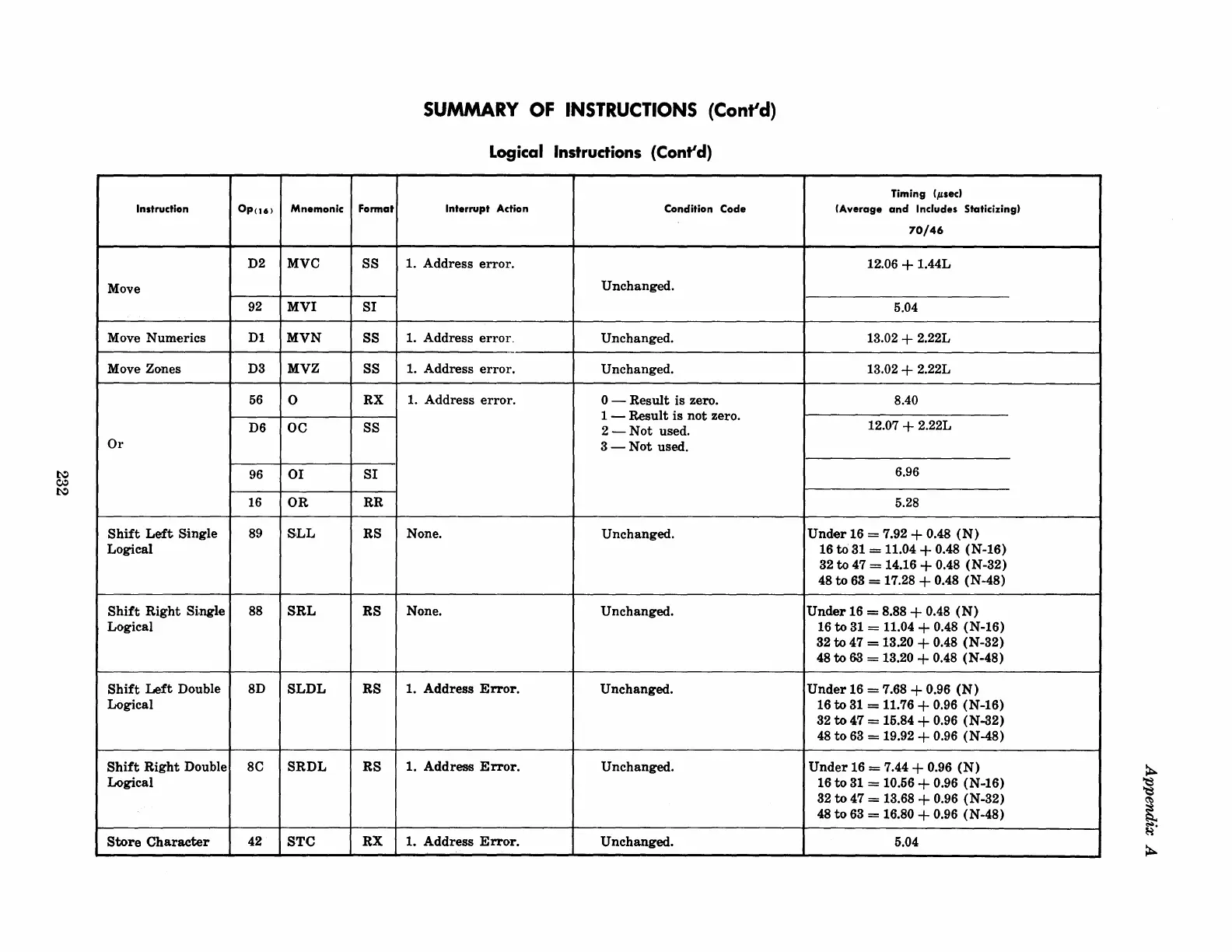

SUMMARY OF INSTRUCTIONS (Cont/d)
Logical Instructions (Cont'd)
Timing (/Lsed
Instruction
OP(6)
Mnemonic Format
Interrupt Action
Condition Code (Average and Includes Staticizing)
70/46
D2
MVC SS
1. Address error.
12.06 + 1.44L
Move
Unchanged.
92
MVI SI
5.04
Move Numerics
D1
MVN
SS
1. Address error <
Unchanged.
13.02 + 2.22L
Move Zones
D3
MVZ
SS
1. Address error.
Unchanged.
13.02 + 2.22L
56
0
RX
1. Address error.
o - Result is zero. 8.40
1 - Result is not zero.
12.07 + 2.22L
D6
OC SS
2-Not used.
01'
3-Not used.
96
01 SI
6.96
16
OR
RR
5.28
Shift Left Single
89 SLL
RS
None.
Unchanged.
Under 16 = 7.92 + 0.48 (N)
Logical
16
to 31 = 11.04 + 0.48 (N-16)
32 to 47 = 14.16 + 0.48 (N-32)
48
to 63 = 17.28 + 0.48 (N-48)
Shift Right Si,ngle
88
S,RL
RS
None. Unchanged.
Under 16 = 8.88 + 0.48 (N)
Logical
16
to 31 = 11.04 + 0.48 (N-16)
32 to 47 = 13.20 + 0.48 (N-32)
48
to 63 = 13.20 + 0.48 (N-48)
Shift Left Double
8D
SLDL RS
1. Address Error.
Unchanged.
Under 16 = 7.68 + 0.96 (N)
Logical
16
to 31 = 11.76 + 0.96 (N-16)
32 to 47 = 15.84 + 0.96 (N-32)
48 to 63 = 19.92 + 0.96 (N-48)
Shift Right Double 8C SRDL RS
1. Address Error. Unchanged.
Under 16 = 7.44 + 0.96 (N)
Logical
16
to 31 = 10.56 + 0.96 (N-16)
32
to 47 = 13.68 + 0.96 (N-32)
48
to 63 = 16.80 + 0.96 (N-48)
Store Character
42
STC
RX 1. Address Error.
Unchanged.
5.04
