Location of Controls
AUDIO IN and VIDEO IN Jacks
Receives audio and video signals from another
component, like a VCR or camcorder when it is
connected to these jacks.
To select these front panel jacks, press 00 to
display VIDEO1. (Pressing 00 once selects the
rear input jacks.)
CH
^
and v (Channel up and down)
Selects next higher or lower channel in the
TV/VCR’s channel memory.
Used for manual tracking when a tape is playing.
F. FWD (Fast Forward)
Fast forwards the tape when the VCR is stopped.
Searches the picture forward during playback.
Headphone Jack (3.5mm jack)
Connect headphones (not supplied) to this jack.
PLAY/PAUSE
Press once to begin playback of a tape. During
playback, press to pause. Press again to resume
playback.
POWER
Turns the TV/VCR on or off.
POWER Indicator
Lights when the power is on.
REC Indicator
Lights when the TV/VCR is recording.
Remote Sensor
Receives signals from the remote. Aim remote at
this sensor with no objects between them.
REW (Rewind)
Rewinds the tape when the TV/VCR is stopped.
Searches the picture in reverse during playback.
STOP/EJECT
Stops normal functions such as record, play,
rewind, fast-forward, or pause.
Press when a tape is stopped to eject the cassette.
TIMER Indicator
Lights when a timer program has been set
and a cassette with safety tab in place is in
the TV/VCR.
Flashes when a timer recording has been set and
the TV/VCR is turned off with no cassette
inserted, a cassette with no safety tab has been
inserted, or there has been a power interruption.
VOL + and – (Volume up and down)
Raises and lowers the sound.
Note:
To disable Front Panel Buttons, see Front Panel Block
on page 11.

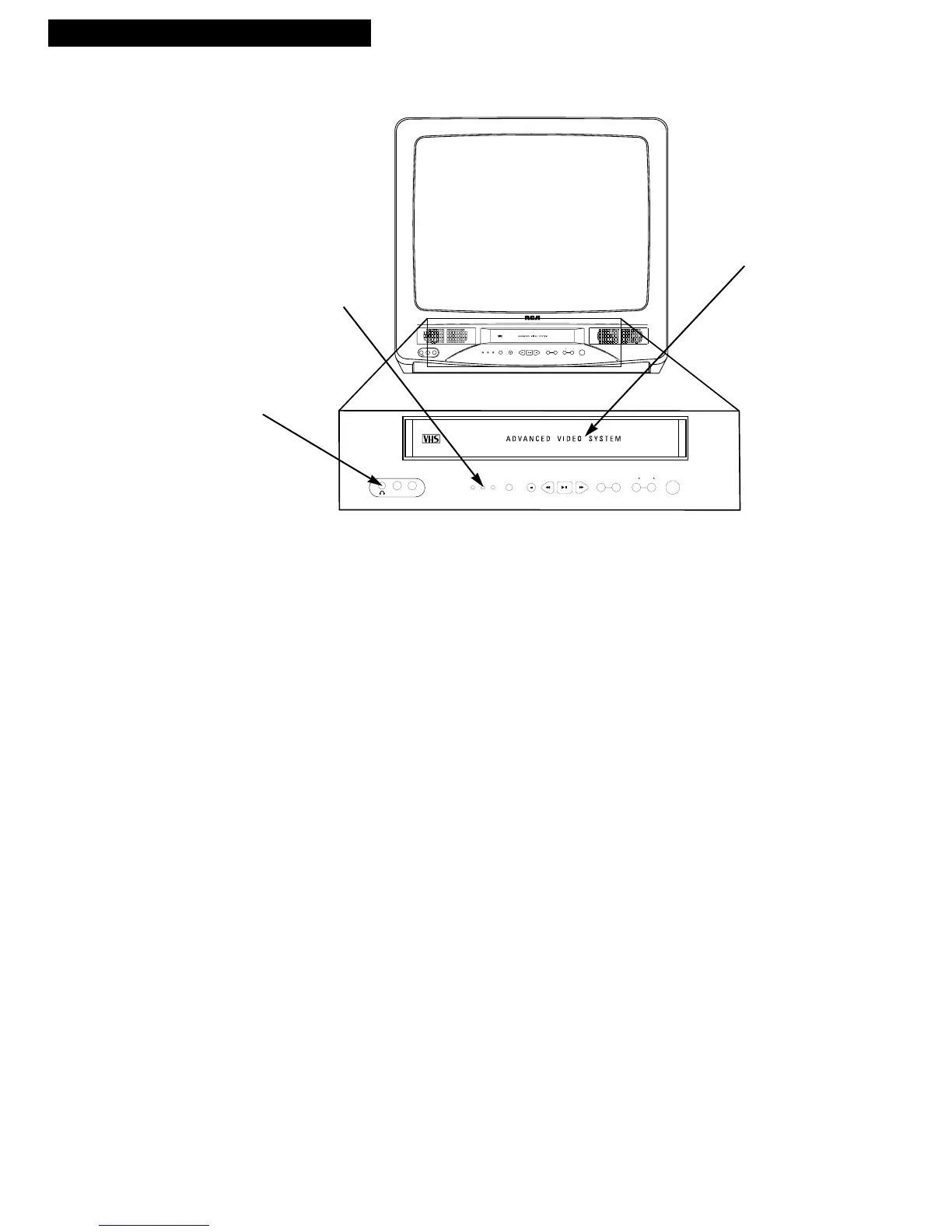

Front Panel
Remote Sensor
Tape Compartment
Headphone Jack
