RCF spa ART 9-AX Reference Guide 5

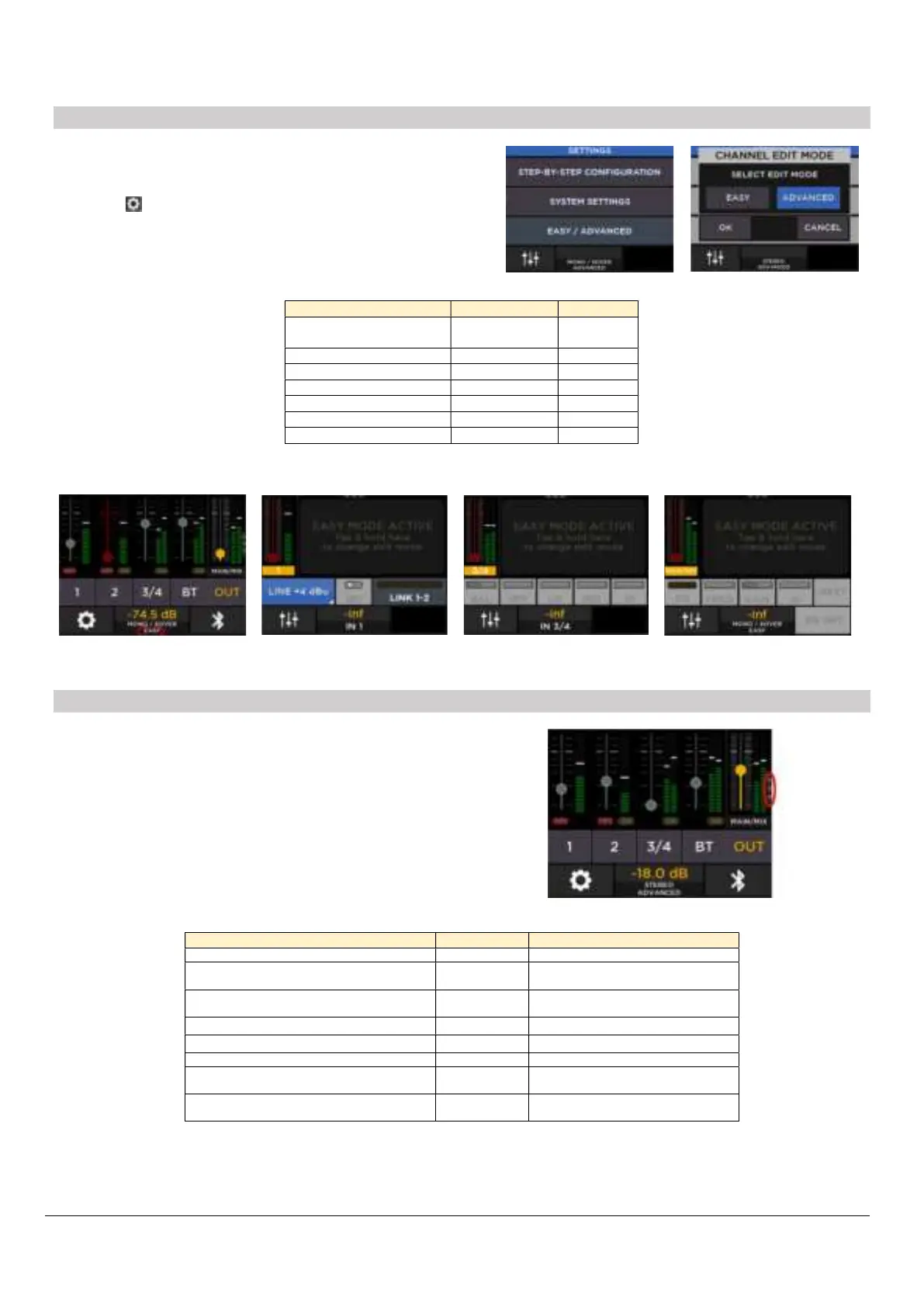

3. MIXER EDIT
Channel Edit modes: Easy and Advanced
The internal digital mixer is a versatile processing system that in some
cases may be too complex for immediate operation; therefore, the EDIT
mode can be set in EASY or ADVANCED; to modify the EDIT mode, go to
SETTINGS ( )from the Home Page, and press EASY/ADVANCED, a popup
will appear, with confirmation required.
The EASY EDIT mode is assuming the user is operating in MONO MIX OUT
mode, without full processing control:
MIX OUT mode
MONO XOVER
All modes
Input 48 V, sensitivity set
The current mode is displayed on MIXER view, at the center lowest row, and also in the edit pages backround:
Mixer View CH 1 or 2 Edit Ch 3/4 or 5/6 Edit MAIN Edit
Touch Screen Gestures
On some pages, gestures are enabled to allow a faster navigation. A 3-dot graphical
element helps in understanding if a gesture is available.
As an example, on the MIXER view, a right-to-left swipe is available for jumping to
the Reverb page, as shown on the right.
In this document, when a gesture is available, it will be detailed for each of the
pages affected.
Here is a summary of available gestures:
Mixer View (home page) Right to Left Reverb page
Reverb page
(only if reached with the gesture above)
Left to Right Mixer View (home page)
Input Channel Edit, page 1 or 2 ((Ch. 1, 2)
Input Channel Edit (Ch. 3-4, BT)
Top to Bottom Mixer View (home page)
Input Channel Edit, page 1 (Ch. 1, 2)
Right to Left
Goes to page 2 (equivalent to > button)
Input Channel Edit, page 2 (Ch. 1, 2)
Left to Right
Returns to page 1 (equivalent to < button)
Output Edit Top to Bottom Mixer View (home page)
System Settings and subpages
(except LOAD/SAVE, CROSSOVER)
Top to Bottom
Mixer View (home page)
Step-by-Step Configuration
(not on subpages)
Top to Bottom
Mixer View (home page)
To Next Page
