GREEN
YELLOW
0
BLUE
BLUE
100 V
100 V - 10 W
100 V - 5 W
0
0
LOUDSPEAKER SET TO 10 W
LOUDSPEAKER SET TO 5 W

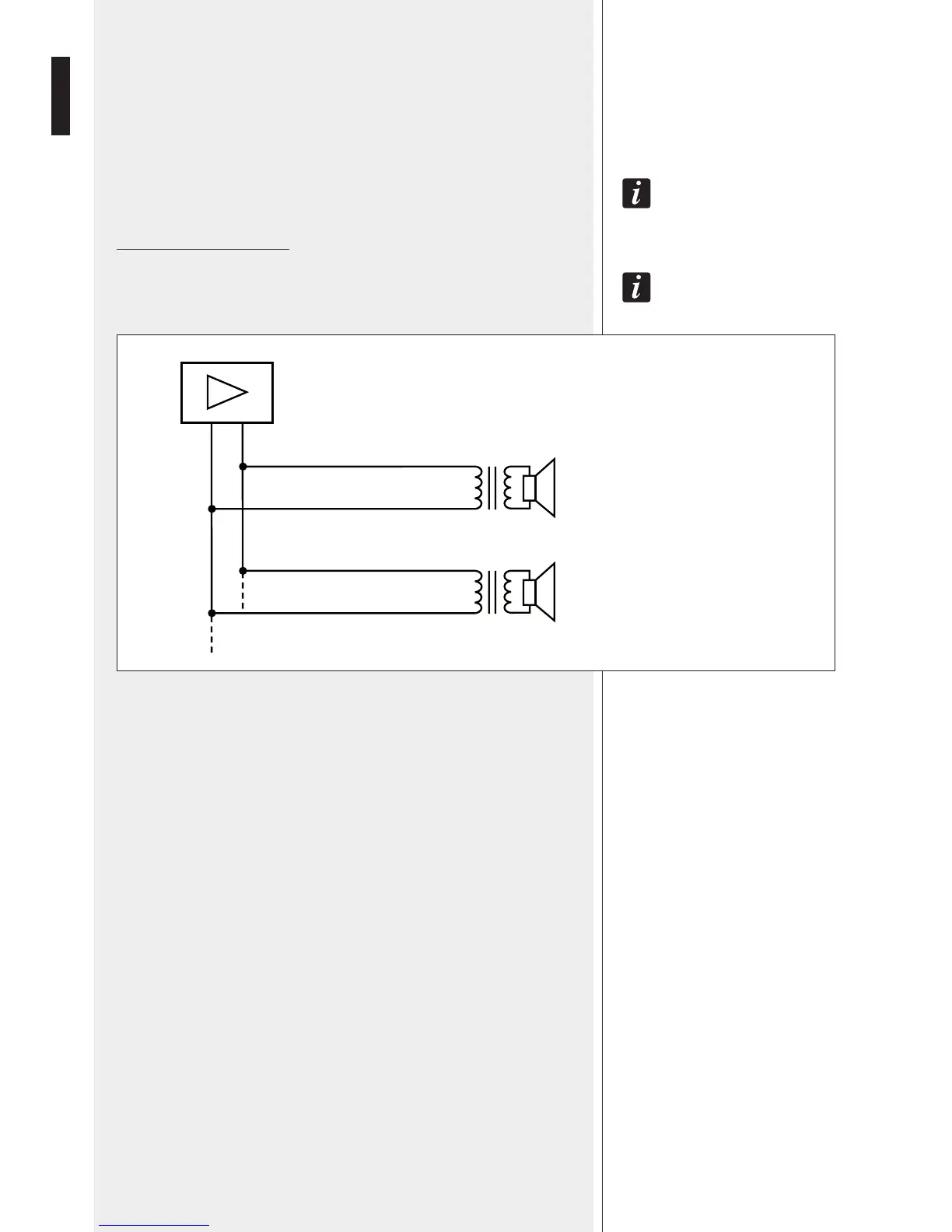

100 V CONSTANT VOLTAGE LINE:
Connect the amplifier output marked with ‘0’, ‘b’ or ‘COM’ to the
loudspeaker common input (BLUE wire).
Connect the amplifier 100 V output (terminal marked with ‘100 V’ or ‘a’) to
one (only) of the 2 loudspeaker 100 V input wires (according to the chosen
power): YELLOW (10 W) or GREEN (5 W).
Note: Do Not coNNect the 100 V liNe to the louDspeaker low impeDaNce iNput
(reD
wire).
iNsulate the two uNuseD wires.
N
ote: if the louDspeaker is coNNecteD to a 70 V liNe (iNsteaD of 100 V), its
power will be halVeD (5 / 2.5 w).
LOW IMPEDANCE CONNECTION:
Connect the amplifier ‘–’ output to the loudspeaker common input (BLUE wire).
Connect the amplifier ‘+’ output to the loudspeaker 8 Ω input (RED wire).
100 V CONSTANT VOLTAGE LINE
LOW IMPEDANCE CONNECTION
