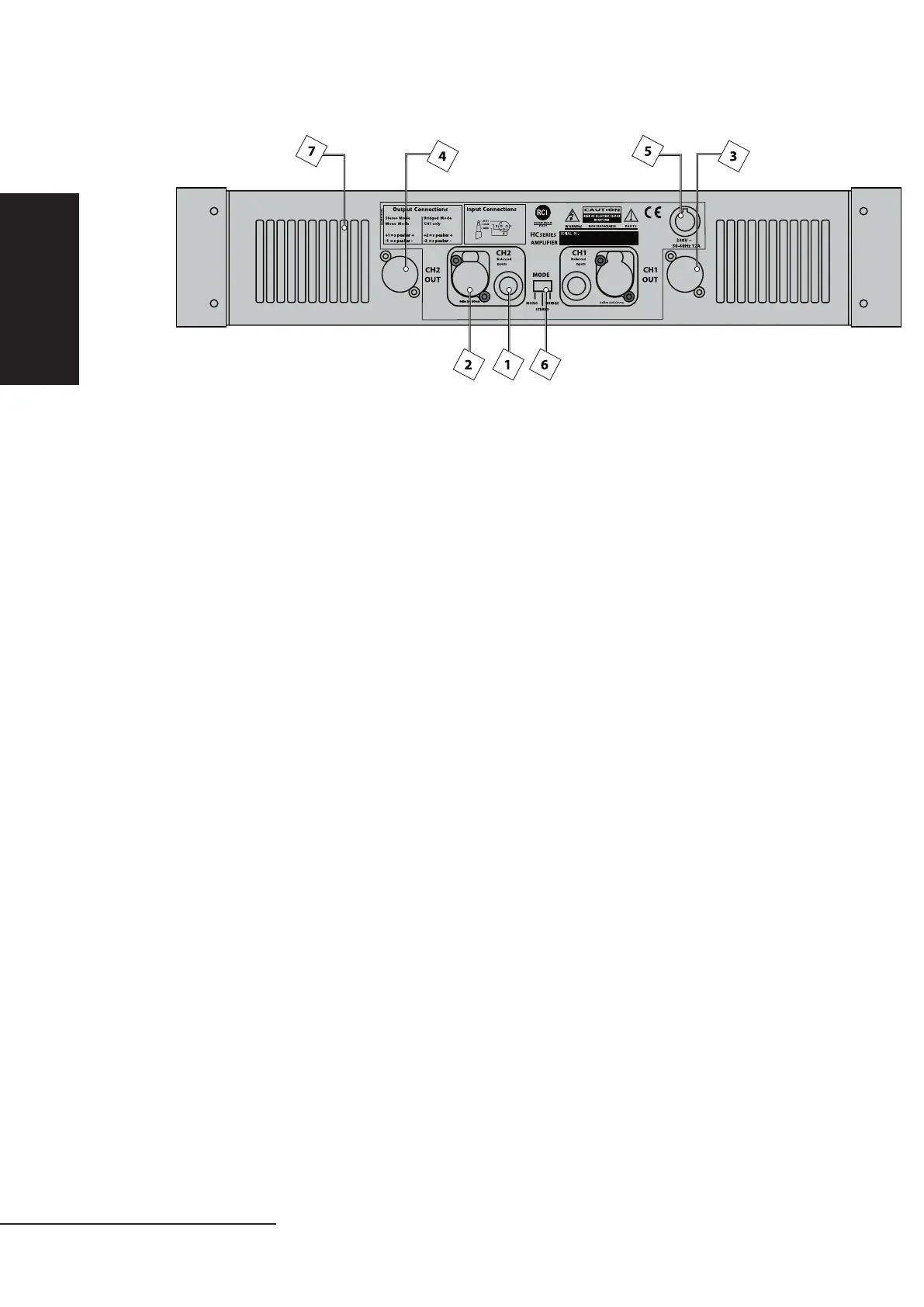

REAR PANEL
1. BALANCED 1/4” (6.3mm) JACK INPUT
Balanced audio input with stereo (TRS) jack connector.
Use a mono (TS) jack connector for an unbalanced signal.
In MONO and BRIDGE modes, use the input CH1 only.
2. BALANCED XLR INPUT
Balanced audio input with XLR connector.
When an unbalanced signal is used, pin 1 (gnd) and pin 3 are to be connected together; use pin
2 for the signal.
In MONO and BRIDGE modes, use the input CH1 only.
3. SPEAKON CONNECTOR – CH1 output
CH1 amplified signal output to loudspeakers in STEREO and MONO modes; to be used (as single
output) in BRIDGE mode.
4. SPEAKON CONNECTOR – CH2 output
CH2 amplified signal output to loudspeakers in STEREO and MONO modes
(note: in MONO mode, CH2 output is driven by CH1 input).
5. POWER SUPPLY CABLE (from mains)
6. MODE SWITCH
Three-way switch to change the mode among STEREO, MONO, BRIDGE
7. AIR INTAKE GRILLE
It allows the amplifier cooling.
Do not obstruct its access and clean the air filter when necessary.
