OPERATION MODES
FOUR INDEPENDENT CHANNELS

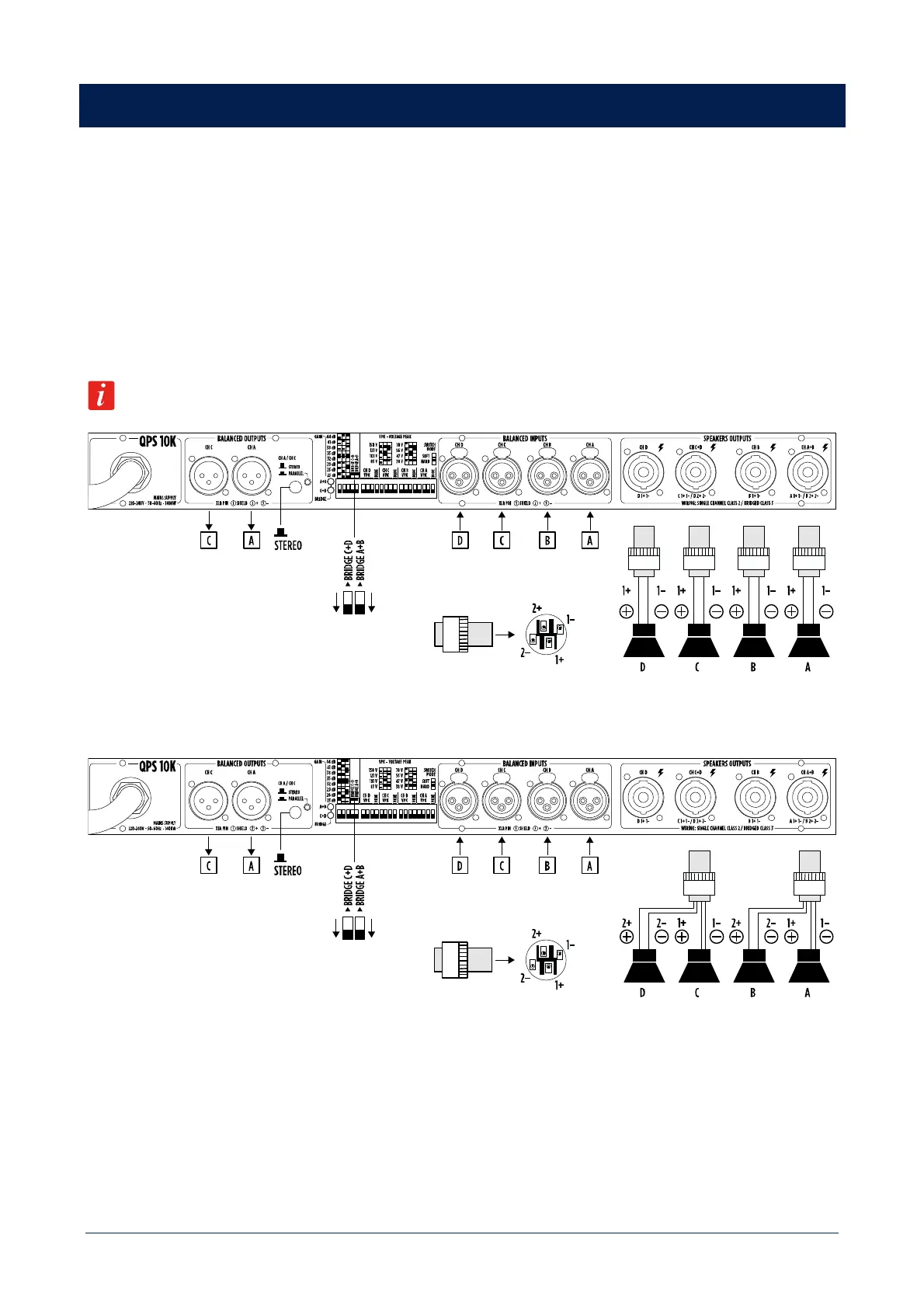

Make sure the amplifier is switched off before setting:
- BRIDGE A+B switch to OFF;
- BRIDGE C+D switch to OFF;
- switch [14] to STEREO.
All the four channels are independent, and each front panel level control affects its respective speakers’ output.
This mode can be used to implement four mono channels or two stereo channels configurations.
Minimum load impedance is 2 Ω on each speakers’ output.
As alternative wiring, it is possible to use just a pair of SPEAKON connectors (by using all the four pins): one for the
channels A and B, one for the channels C and D.
