15

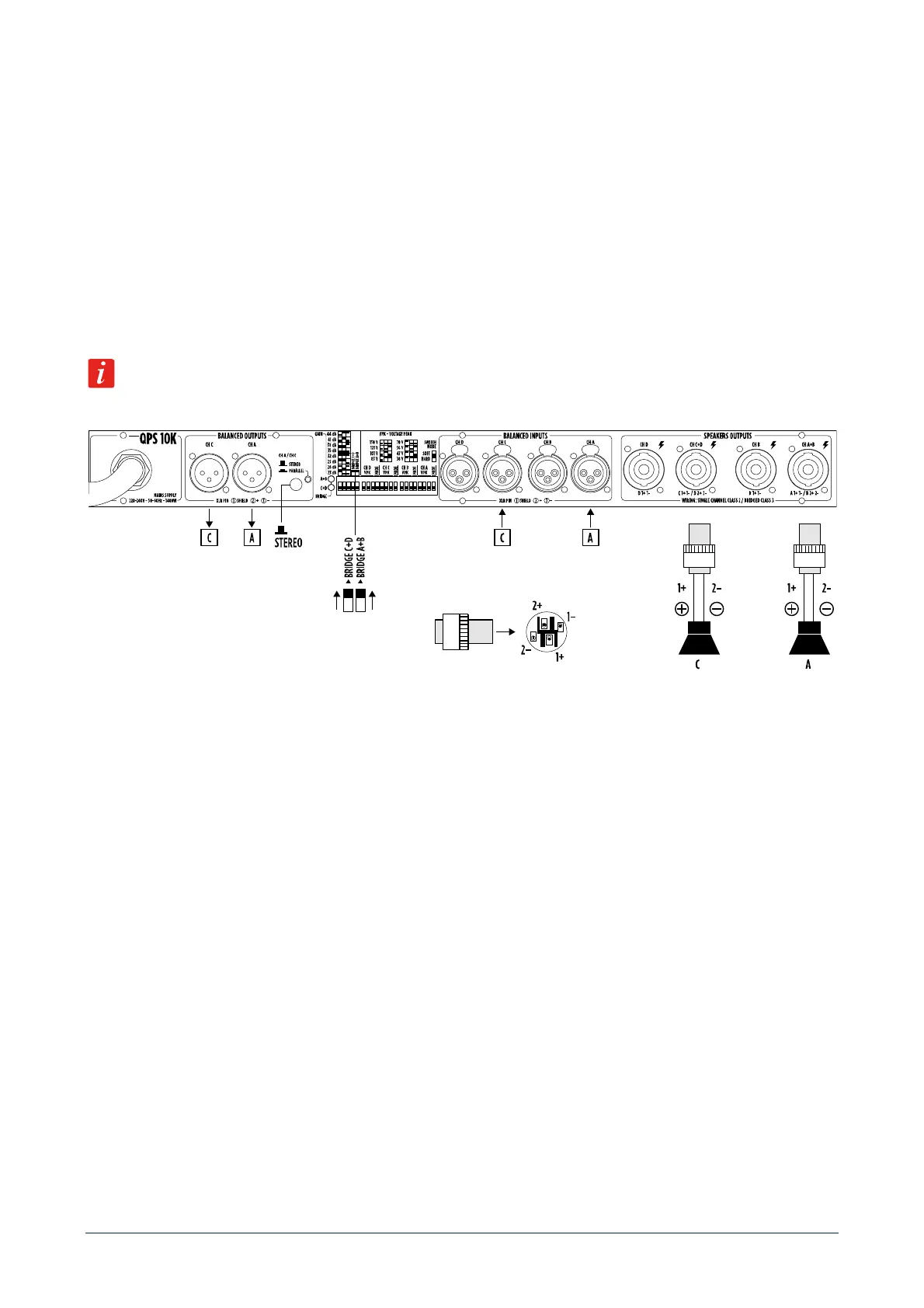

TWO BRIDGED OUTPUTS PAIRS
Make sure the amplifier is switched off before setting:
- BRIDGE A+B switch to ON;
- BRIDGE C+D switch to ON;
- switch [14] to STEREO.
All channels are bridged (two pairs): the result is a doubling of the output voltage in order to get a double power (on a
double impedance load). Each pair works with the same input signal: channel A input for A-B channels, channel C input
for C-D channels. The output levels are adjusted by the channel A and C front panel controls (turn fully counterclockwise
the channel B and D controls).
Do NOT connect the channel B and D speakers’ outputs. Minimum load impedance is 4 Ω per speakers’ output
channels A and C. Pay attention to the SPEAKON wiring: pin 1+ positive, pin 2- negative.
