SAME INPUT SIGNAL TO ALL THE FOUR CHANNELS
Make sure the amplifier is switched off before setting:
- BRIDGE A+B switch to ON;
- BRIDGE C+D switch to ON;
- switch [14] to PARALLEL.
In PARALLEL mode connect input A or input C only. Do not used them simultaneously.

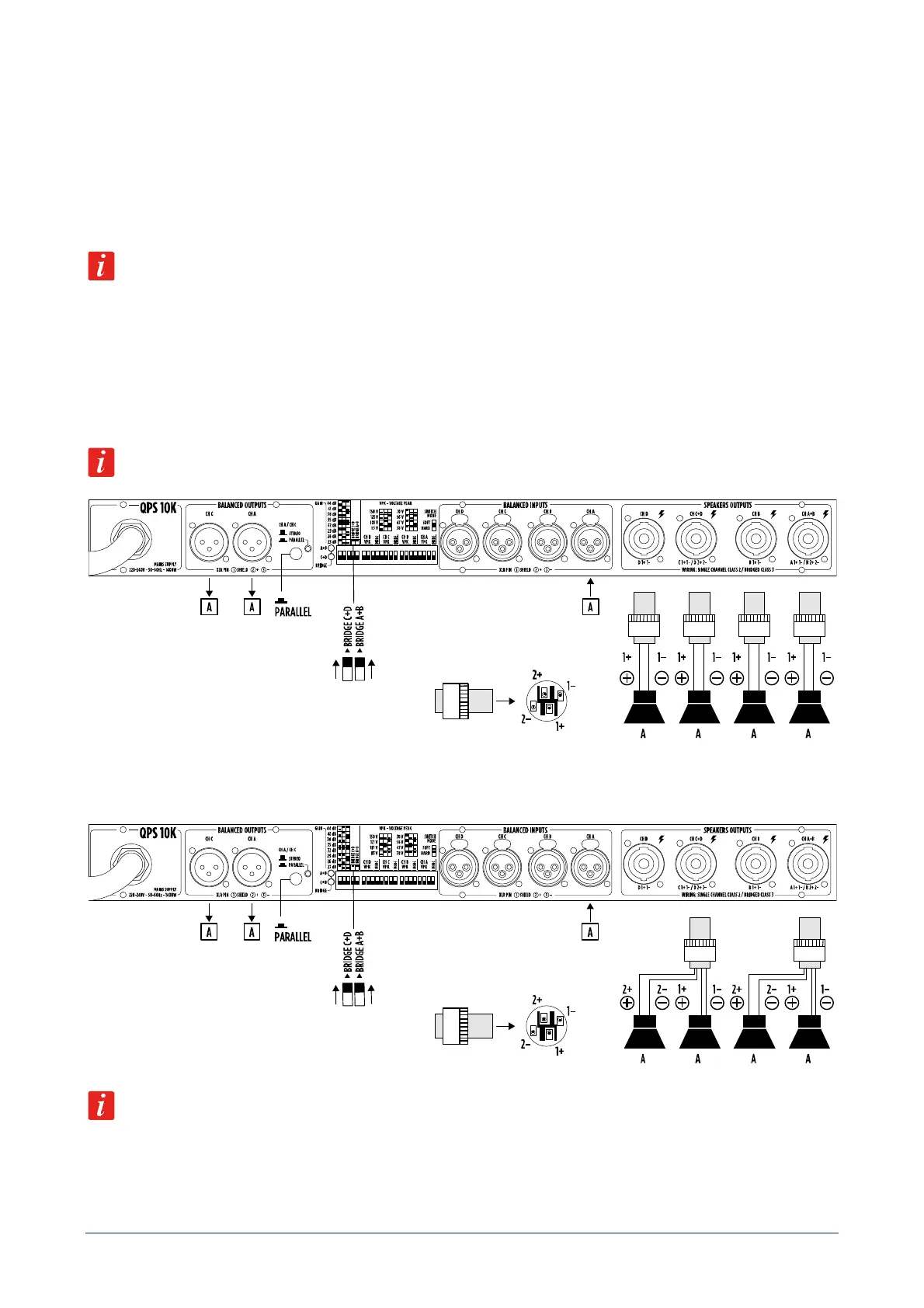

This mode can be used to send the same input signal to all the four speakers’ outputs. Each front panel level control
affects its respective speakers’ output.
In this configuration, single channel maximum power is available on each speakers’ output, despite the BRIDGE command
is activated.
Minimum load impedance is 2 Ω on each speakers’ output.
As alternative wiring, it is possible to use just a pair of SPEAKON connectors (by using all the four pins): one for the
channels A and B, one for the channels C and D.
The same configuration can be done using input C instead of input A.
