● To avoid permanent damage to the electronic ignition system, never rotate the propeller
on your RCGF engine with the electronic ignition system switched on and the plug not
installed in the plug cap.
Installation Instructions
Prepare the engine for installation
Before beginning installation it’s a good idea to plan location of the various components
of the engine. Many of the following steps may need to be completed in a different order
than listed.
1. Check to see that all screws and bolts are tight. Check carefully for any cracks, broken,
or missing parts. Tighten or replace any damaged or missing parts before proceeding.

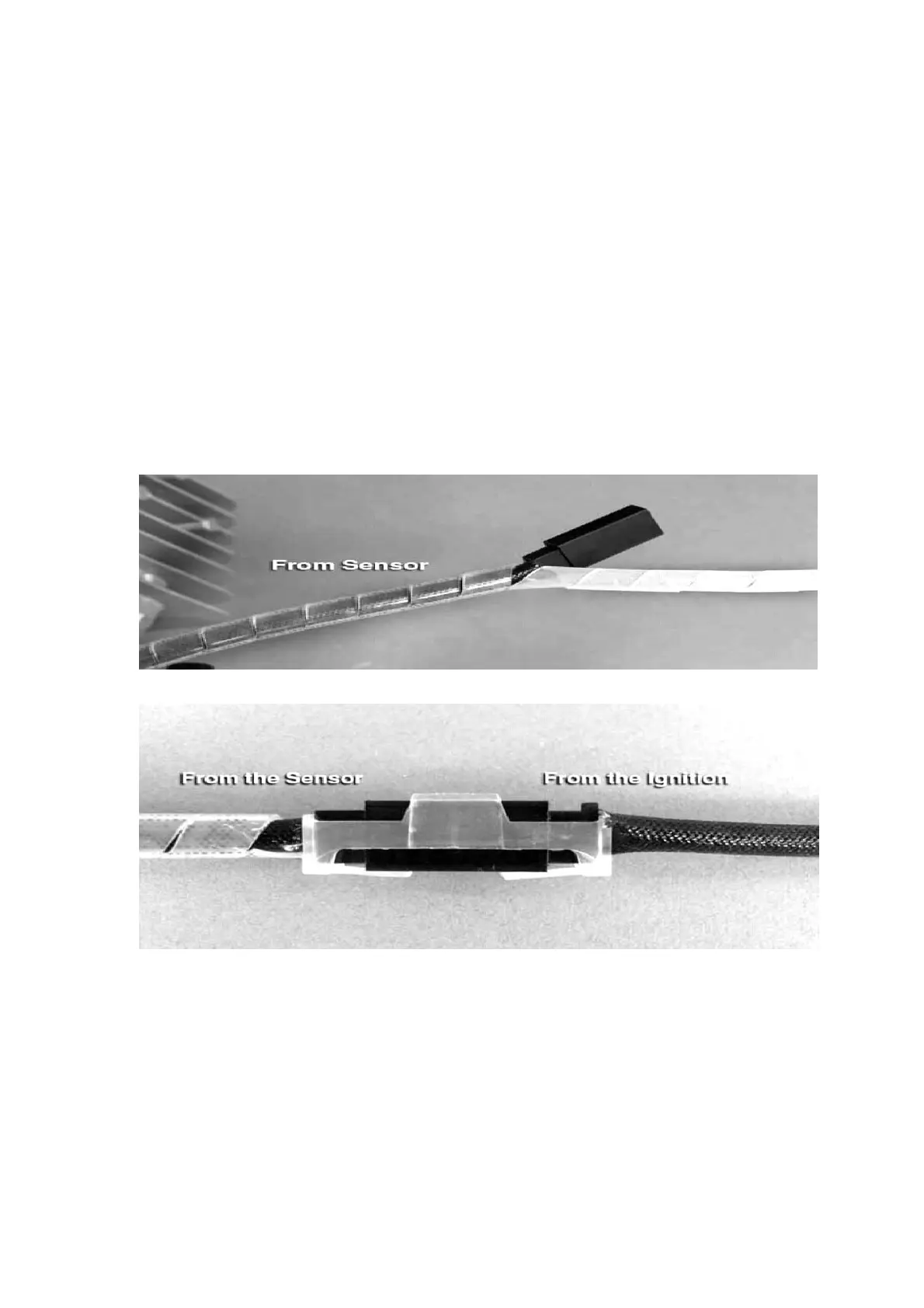

2. Install the silicone wire cover over the pick up lead coming from the engine (cut the
excess silicon wire cover) and connect the lead to the pick–up lead from the Electronic
Ignition Module. Secure the connection with the included three pin connector securing
clip.
