DCN: 141-01060-13 1/05 TS40 Manual
16
Main Menu > User Settings > Sensor Calibration
Sensor Calibration
The Sensor Calibration screen allows you to change the temperature calibration for the internal and any
external remote temperature sensors attached to the TS40 WDU. You can change the temperature
calibration by +/- 7 degrees. Each Remote Sensor has an address, 1 to 4, that defines its function.
When the Sensor Calibration screen is selected it will show the internal and all detected remote sensors
attached to the WDU. Each sensor found will show the current temperature, like the (75) in the example
screen below. Next to the current temperature is the current number of degrees of offset being applied (1
deg in the example). N/a means that no remote sensor is attached. If the sensor’s actual temp is (74)
with 0 degrees of offset and you want it to be 75, then press + to add 1 deg and it will show (75). This is
what the example shows.
To change the temperature calibration, use the scroll buttons to select the Internal or a Remote Sensor.
Once selected, use the + and – buttons to change the temperature calibration to the desired setting.
The temperature shown in the (xx) is the adjusted temperature that will be displayed or used.

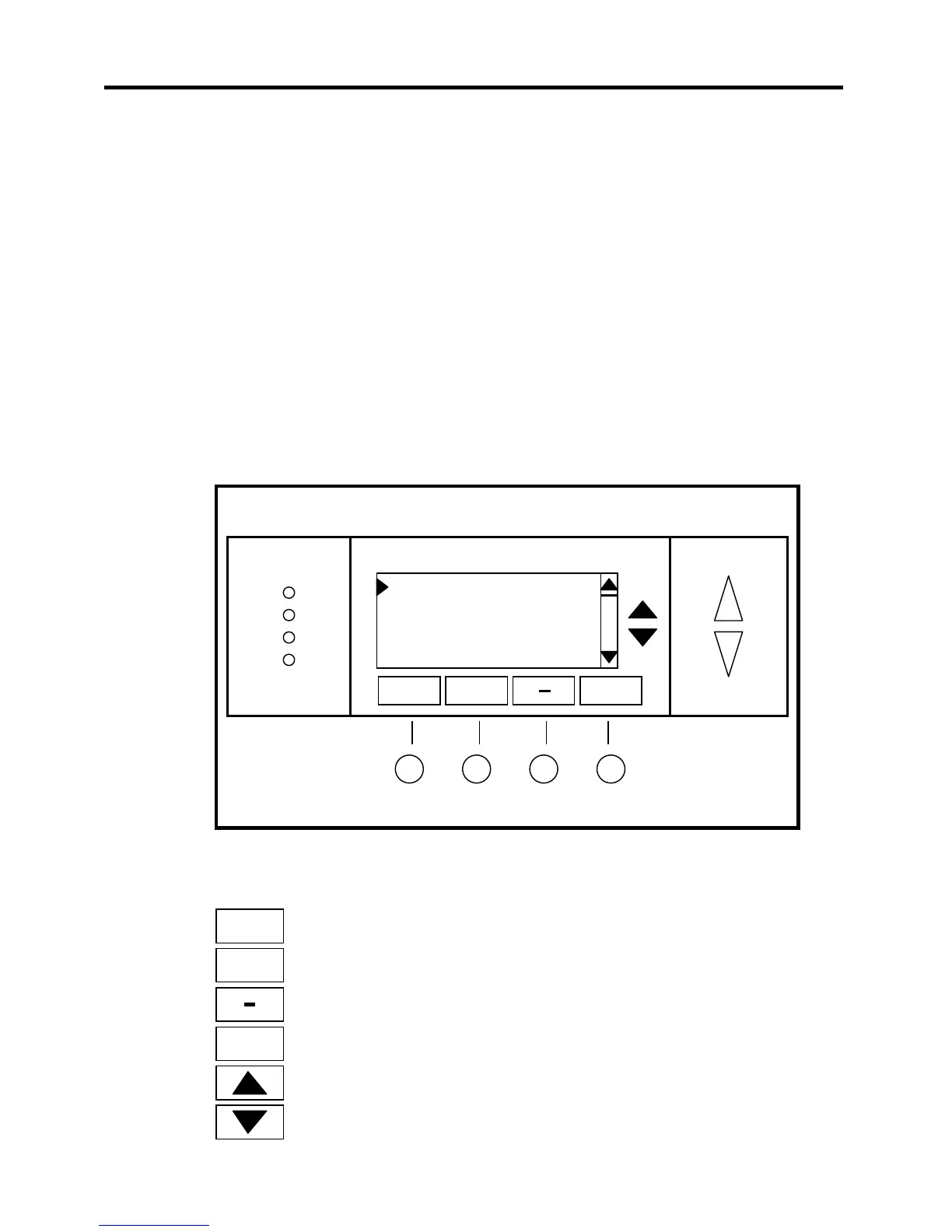

Sensor Calibration Screen
Sensor Calibration navigation buttons:
Sensor Calibration
Internal (75) 1
Remote 1 n/a 0
Remote 2 n/a 0
Remote 3 n/a 0
Done +
Done
+
Return to Main Menu Screen
Increase the temperature by 1 deg
Decrease the temperature by 1 deg
Not used
Scroll Up
Scroll Down
