Main Menu > Thermostat Info
Thermostat Info
The Thermostat Info screen displays the current configuration of the Thermostat Wall Display Unit and the
HVAC Control Unit. This is VIEW only screen and the configuration cannot be changed from this screen.
Some of the settings are dipswitch settings on the Control Unit and others are set in the Installers Setup
screen. This information is useful for quick check of firmware versions and HVAC system setup. It also
shows the network address setting.
Thermostat information displayed is:
• Wall Display Unit Type and Firmware version number.
• Control Unit Type and Firmware version number.
• System Type setting: Standard or Heat Pump HVAC system
• Fan Type setting for Standard systems: No Fan w/heat (Gas systems) or Fan w/heat (Electric systems)
OR
Changeover setting for Heat Pump systems: Changeover with cool or changeover with heat.
• Network address setting: 1-254 valid
When finished viewing this screen press the Done button to return to the main Menu screen or wait for
screen to timeout.

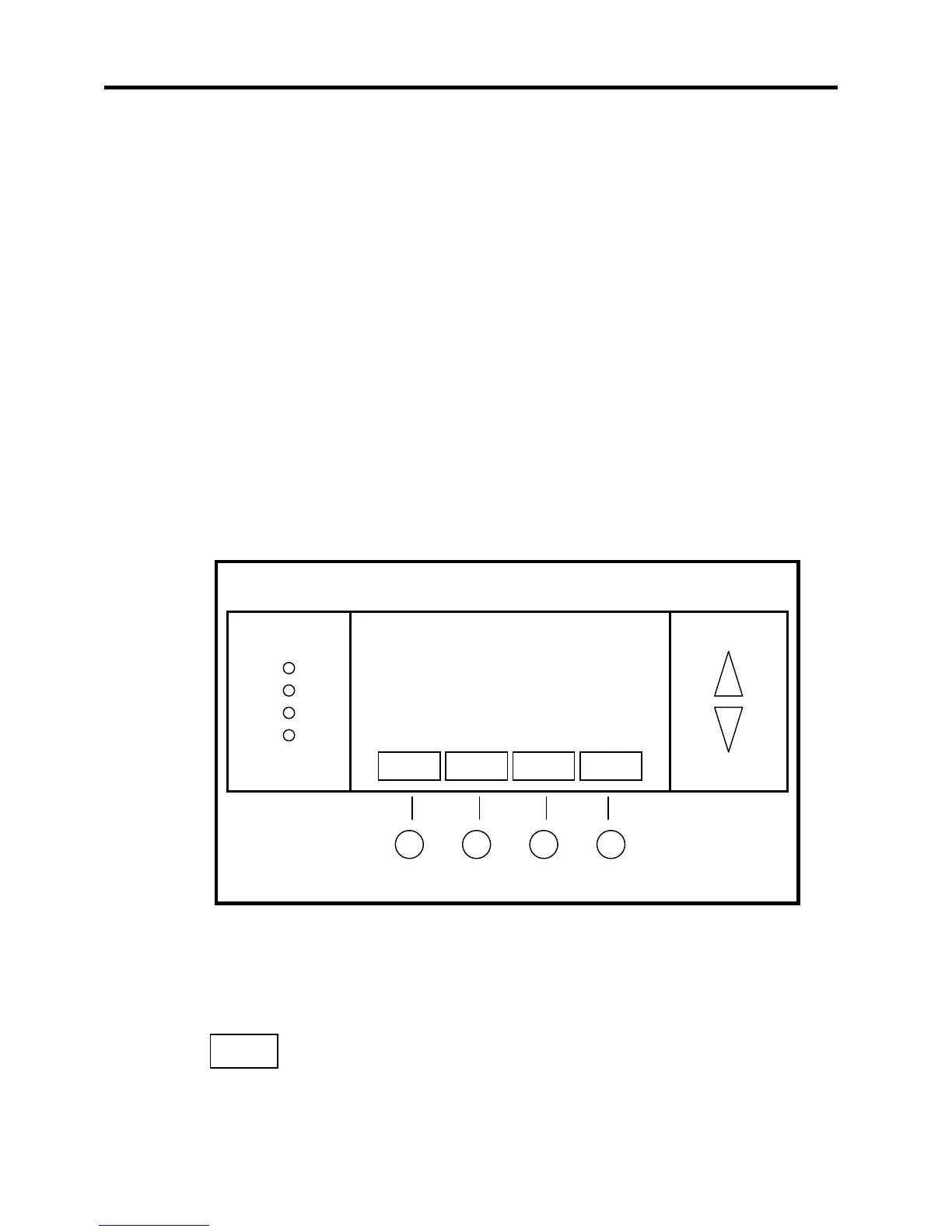

Thermostat Info Screen
Thermostat Info Screen navigation buttons:
Thermostat Info
TS40R Ver: 03.06.6
HCFRL Ver: 03.05.1
System Type: Standard
Fan Type: No Fan w/HT
Network Address: 01
Done
Done
Return to Main Menu screen.
To Next Page
