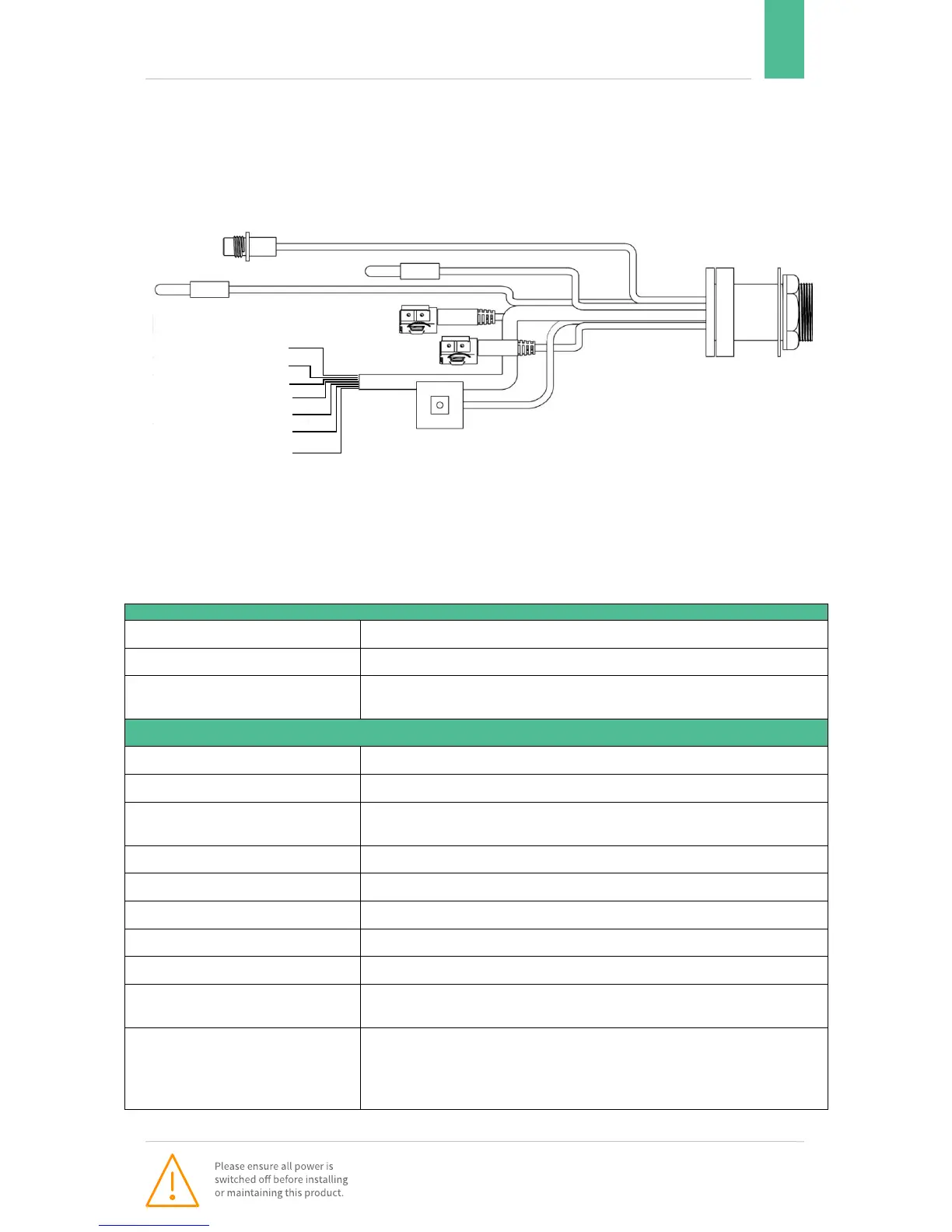

Wiring Loom (PR0024)
Specification
PR0029L ACF Brooklands Case Controller
Supply Voltage Range
240 Vac ±10%
Supply Frequency
50Hz
Typical supply current (Excluding
relay load)
<1 Amp
General
Operating temperature range
+5
0
C to +50
0
C
Storage temperature range
-20
0
C to +65
0
C
Environmental
Indoor use at altitudes up to 2000m, pollution degree 2, installation
category II. Voltage fluctuations not to exceed ±10% of nominal voltage.
Size
188mm (W) x 78.5mm (H) x 648mm (D)
Approx. Weight
4.13kg
Safety
EN61010-1: 2010
EMC
EN61326:2013
Ventilation
There is no requirement for forced cooling ventilation
Class 2 Insulation
No protective Earth is required and none should be fitted. Earth connection
is functional only.
Connections
Relay and probe: RDM wiring harness PR0024
Power: 3 pin GST18
Lights: 3 pin M12
Product Probe
Socket
RH Air Off Probe
LH Air Off Probe
Evap. In Probe
Evap. Out Probe
+24VDC Fan Supply (Brown)
+24VDC Fan Supply (Yellow)
Fan Supply Gnd (Blue)
LH Air On Probe (Orange)
RH Air On Probe (Green)
*Fan Fail Signal (Red)
Probe & Fan Fail Signal Gnd
(Purple)
Valve Connector DIN
Socket (24VDC)
Pin 1 +24v (Brown)
Pin 2 0v (Blue)
Pin 3 Earth
(Green/Yellow)
19 Way Harness
Connector Plug
(Connects to 19 way
harness socket on
tray)
*Fan fail alarm is generated when the fan fail signal
(red) is connected to fan fail ground (purple)
