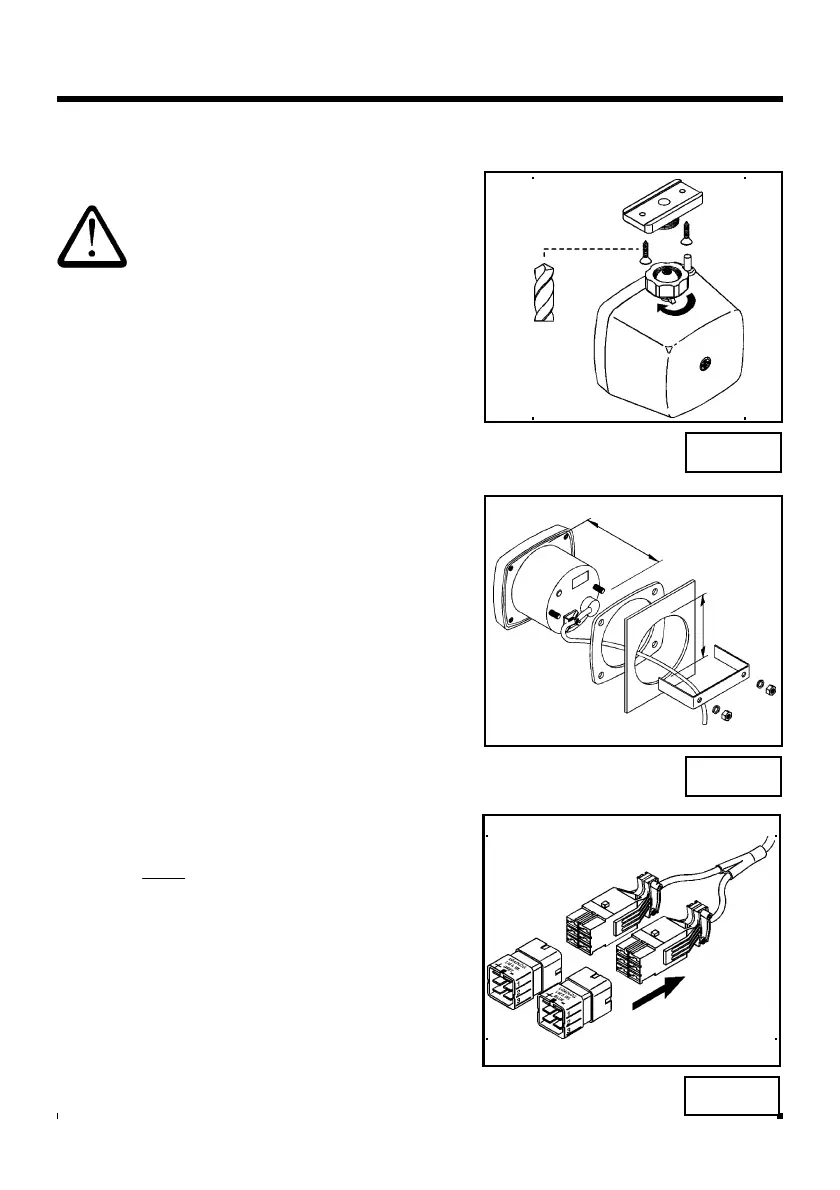

Installation
Fix the mounting plate to the cab with
the self tapping screws provided (drill
size - 5/64") (fig. 21).
Do not drill into a ROPS or FOPS
frame.
If you are fixing the mounting plate to
plastic e.g. the dashboard or other
cab moulding, it is recommended to
use M4 screws with "mudwing"
washers to strengthen the mounting
point.
Panel Mounting
Panel mount using the optional panel
mounting kit ref. K/PNL/MNTD.
Panel mounting requires a circular
cutout 85 mm (3-3/8" Ø).
Fit Harting Connectors
Fit the connector shells as shown (fig.
23). Note that the labels should face
away from the plug.
Fig. 21
Fig. 22
Fig. 23
85 mm
70 mm
