RDS Weighlog 2 - Remote Enter Switch

Installation
Remote Enter Switch
Mount the Remote Enter Switch either
on the lift lever using a hose clip, or
where it is easily accessible next to the
lift lever (fig. 16).
Route the cable back to the Harting
connectors.
Connection
Connect to the BLUE Harting connec-
tor as follows;
Colour Function Terminal #
Blue 0V BLUE 2
Brown Signal BLUE 6
NOTE: There is no provision for strain relief on
these connections. It is recommended
that sensor cables are cable-tied
securely out of the way.

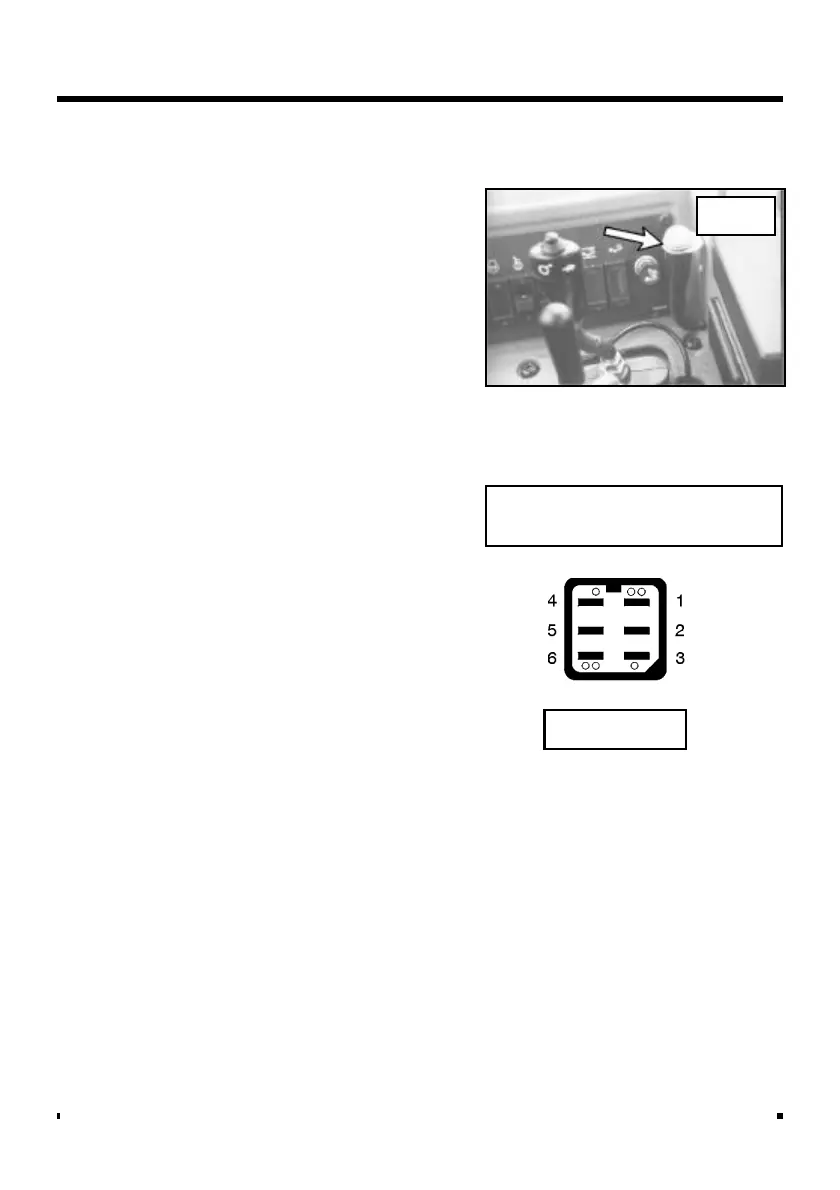

Fig. 16
Fig. 17 Remote Enter
Switch
Connections
Blue - 0V
Brown - Signal
Blue Harting
13
