Installation
The whole assembly can then be
bolted to the Angle Bracket at the
suitable angle for the specific installa-
tion, using the two M6 x 16mm bolts
and nuts provided.

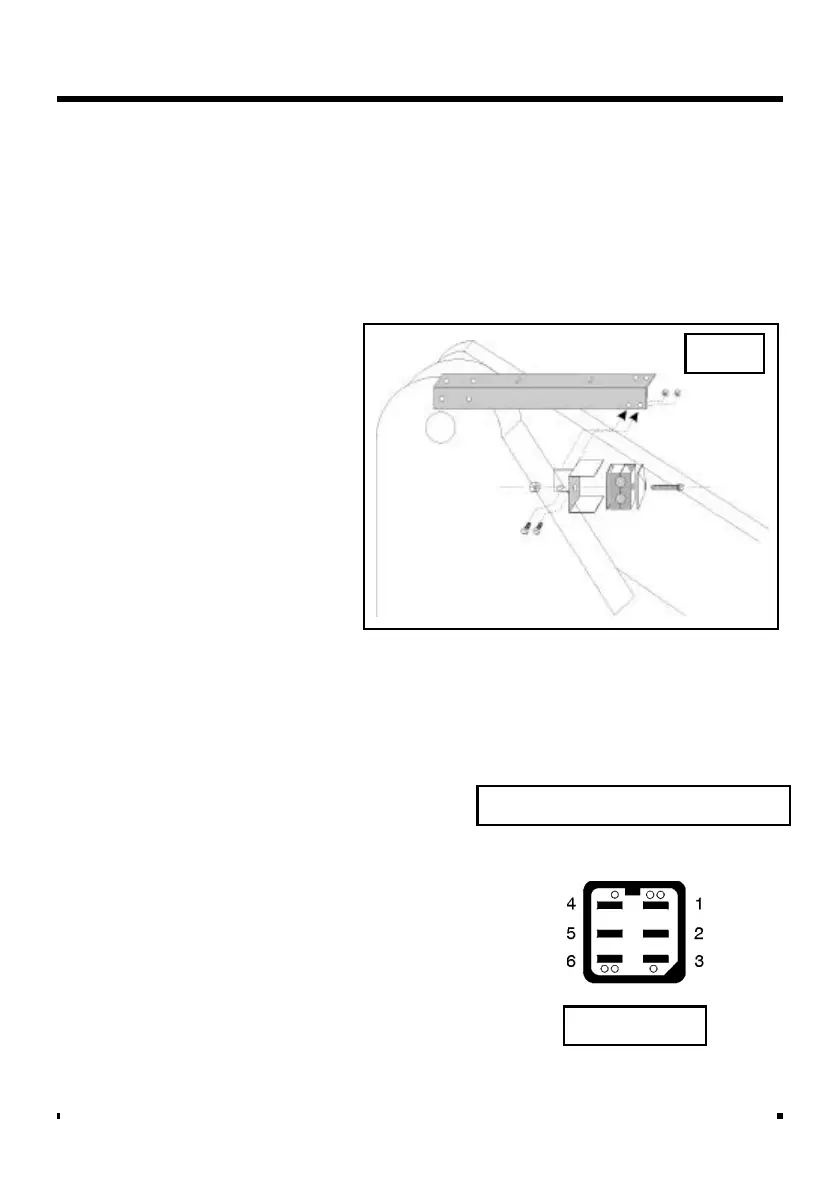

Install the angle bracket as shown in
figure 14.
Ref/Dir Sensor Connection
Connect the extension cable to the
"Weatherpak" connector on the sensor
lead route along with the Load Sensor
Lead back to Harting connectors
Connect to the GRAY Harting connec-
tor as follows;
Colour Function Terminal #
Blue Common GRAY 2
Brown Ref. Sig. GRAY 3
Yellow/Green Dir. Sig. GRAY 6
NOTE: There is no provision for strain relief on
these connections. It is recommended
that sensor cables are cable-tied
securely out of the way.
Fig. 14
Blue - 0V
Gray Harting
Brown -
Ref. Signal
Yellow/Green -
Dir. Signal
Fig. 15 Ref/Dir Sensor Connections
To Next Page
