Installation
External Alarm
An external alarm is optional. Mount
the alarm buzzer where it will stay dry.
Connect to the BLUE Harting connec-
tor as follows;
Colour Function Terminal #
Blue 0V BLUE 3
Brown +V BLUE 5

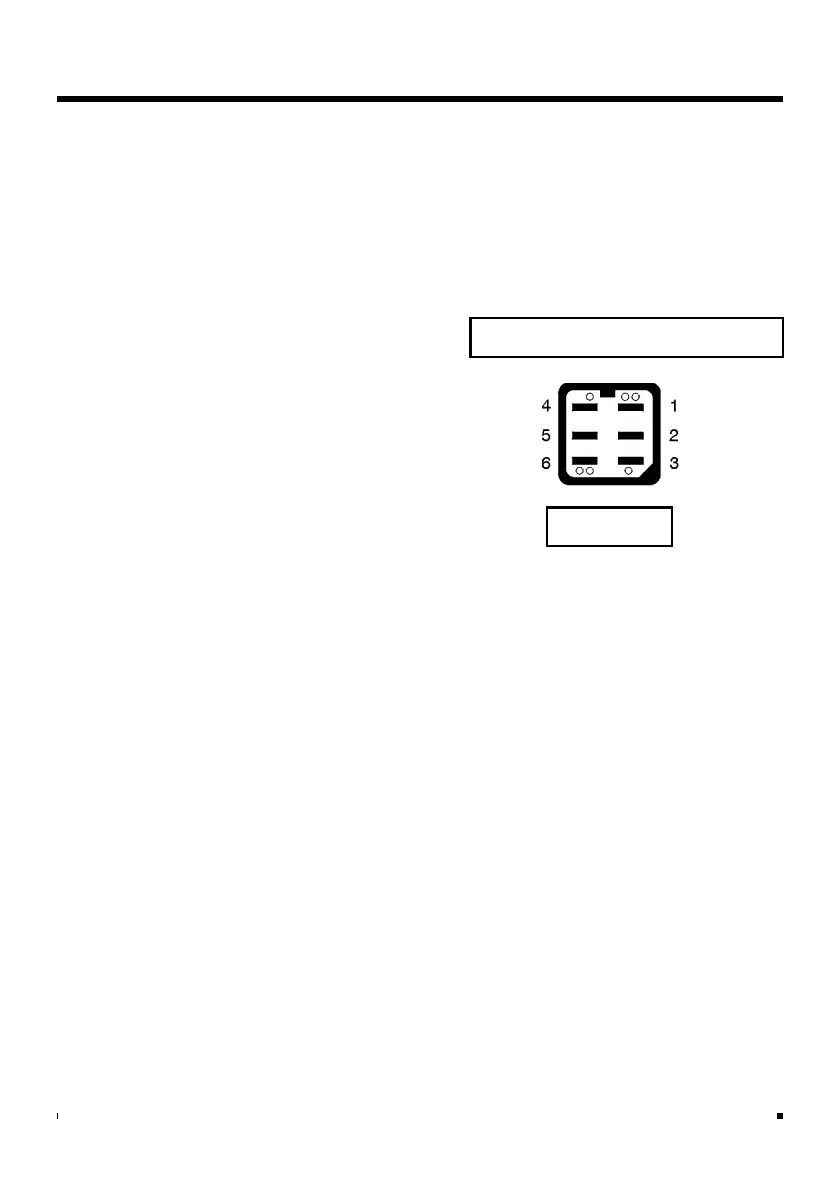

Fig. 27 External Alarm Connection
Brown +V
Blue - 0V
Blue Harting
19
