Overview
The Weighlog system is made up
of a number of standard kits, which
are designed to fit a wide range of
loaders.
Mounting positions will vary ac-
cording to the type of machine,
however this manual gives general
guidelines that apply equally to any
machine.
The installation may require some
modification of the brackets for
mounting the reference/direction
sensor, requiring only basic hand-
tools.

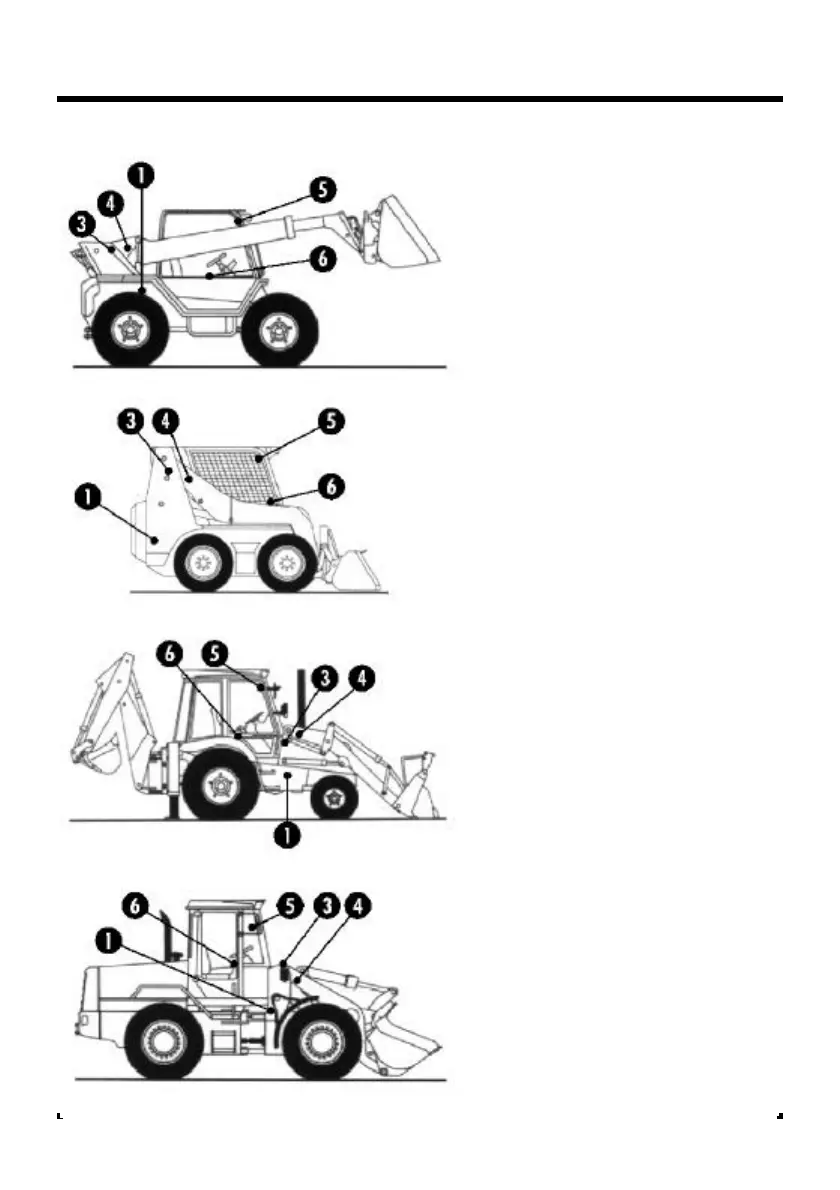

Typical mounting positions are:
1. Pressure Sensor
2. -
3. Reference/Direction
Sensor
4. Magnet
5. Head Unit
6. Remote Enter Button
7. Strain Sensor (Optional)
