Re T-one ULS User Manual

T-one ULS
Rev. 06/18 13/26

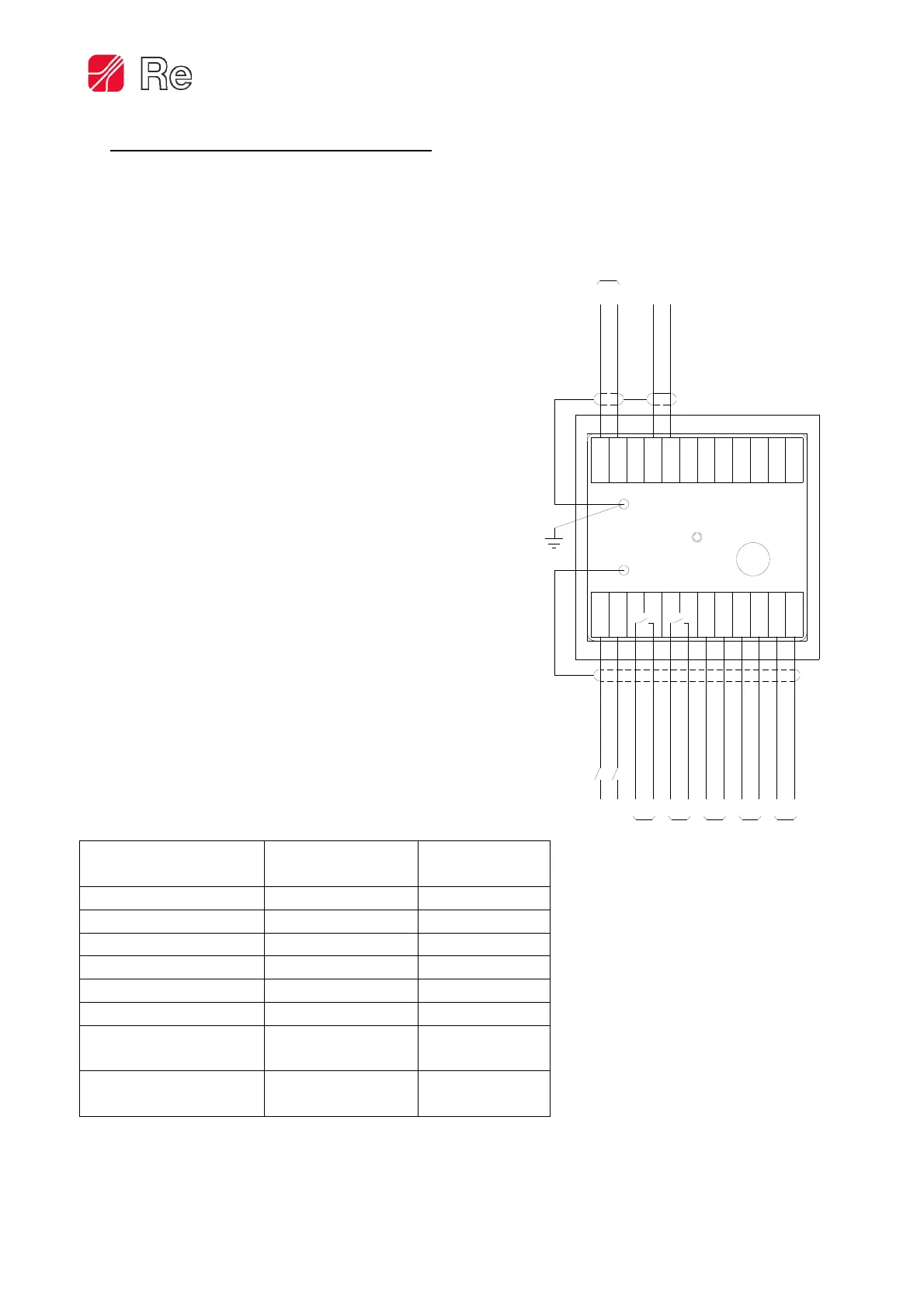

With the “Selematic” function activated
Inputs / Outputs Type
Electrical
characteristics
AIN0 Analog input 4÷20mA
AIN1 Analog input 0÷10Vdc
Auto/Stop Digital input 0÷24Vdc
Priority stop Digital input 0÷24Vdc
Brake control output Analog output 0÷10Vdc
Prop. diameter output Analog output 0÷10Vdc
EV.0 Digital output Relay 24Vdc
750mA max
EV.1 Digital output Relay 24Vdc
750mA max
The instrument must be connected to the
zero potential by using the screw located
close to the CN1 contact
The connection to ground must be
as short as possible
161513 14
2
1
4
3
NC
+ -
- +
- + - +
242319 20 21 22
17 18
96
5
8
7
1110 12
NC NC NC NC NC NC
+ -
Power supply
0V
AIN0
EV.0
AIN1
EV.1
DIN0 (Auto/Stop)
Analog output
Brake control analog output
DIN1 (Priority stop)
(proportional to the diameter)
CN1
CN2
