9
INSTALLATION INSTRUCTIONS (continued)

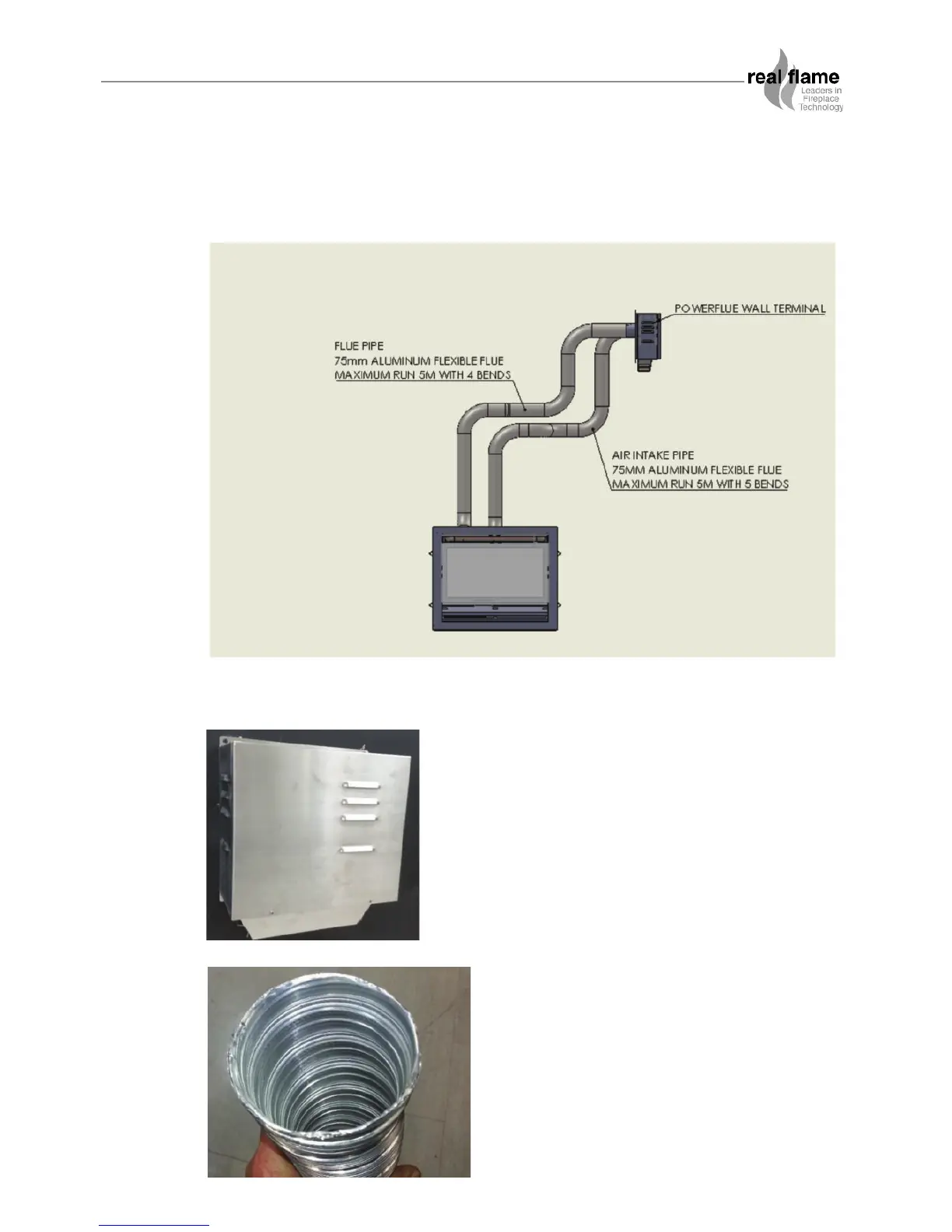

SETUP WITH EXTERNAL WALL MOUNTED FAN TERMINAL
Wall mounted fan terminal
1/ Wall mounted fan module – terminal must be
installed with clearances as specified by AS/NZS
5601.1 Clause 6.9.3
2/ Run exhaust flue and air intake flue as required
– Maximum run 5m. Flues can be run next to each
other. Maintain the required clearances to
combustibles.
3/ Connection to appliance
Cut tube to length where required.
Ensure ends are burr free and round, test fit flue
will slide over connection.
