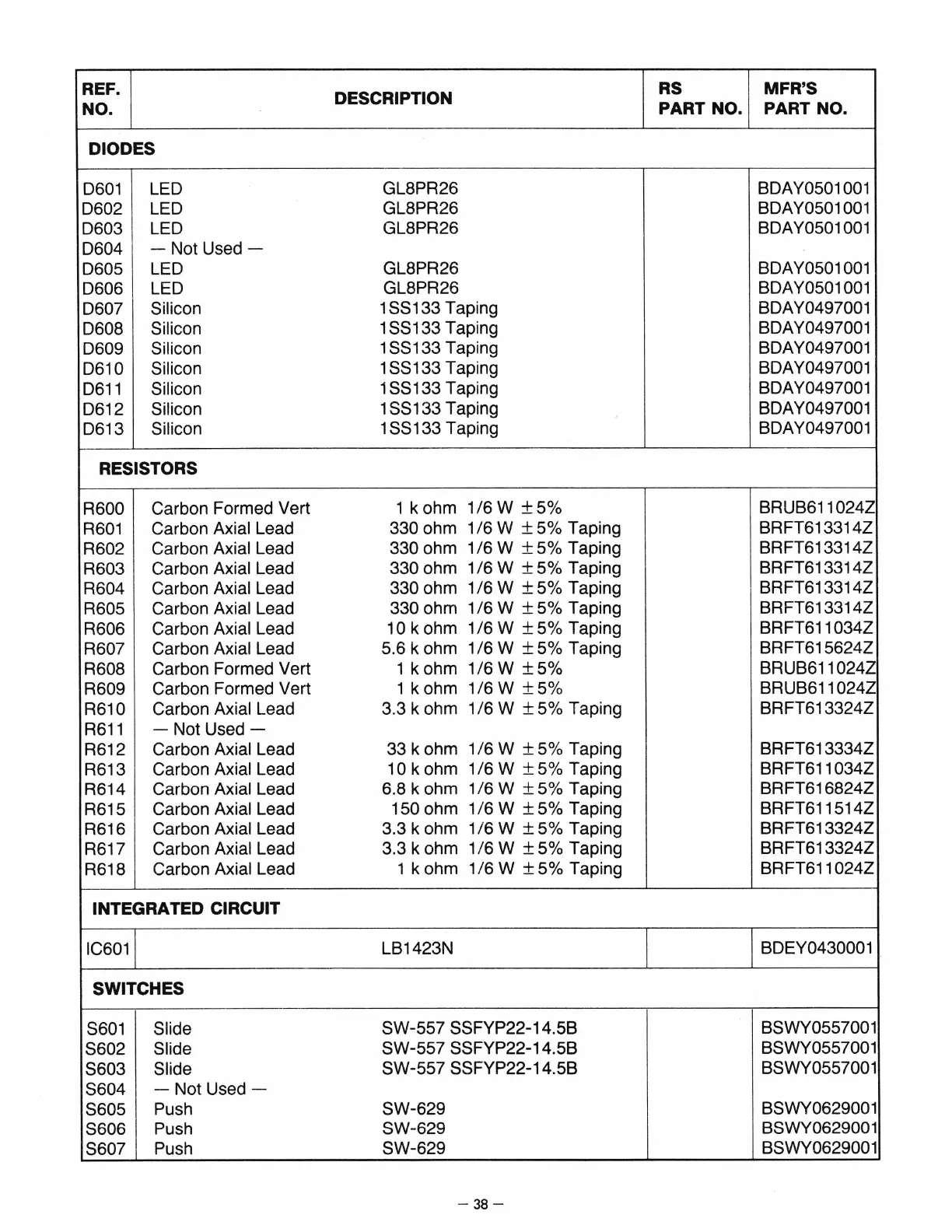

REF.
DESCRIPTION
RS
MFR'S
NO.
PART NO.
PART NO.
DIODES
0601
LED
GL8PR26
BOA Y0501 001
0602
LED
GL8PR26
BDAY0501 001
0603
LED
GL8PR26
BDAY0501 001
0604
-Not Used-
0605 LED
GL8PR26
BOA Y0501 001
0606 LED
GL8PR26
BDAY0501 001
0607
Silicon
1 SS133 Taping BOA Y0497001
0608
Silicon
1SS133
Taping
BDAY0497001
0609
Silicon
1 SS133 Taping BDAY0497001
0610 Silicon
1 SS133 Taping
BDAY0497001
0611
Silicon
1 SS133 Taping
BDAY0497001
0612
Silicon
1SS133
Taping
BOA Y0497001
0613 Silicon
1 SS133 Taping
BOA Y0497001
RESISTORS
R600
Carbon Formed Vert
1
kohm
1/6W ±5o/o
BRUB611
024Z
R601
Carbon Axial Lead
330 ohm
1/6 W ± 5o/o Taping
BRFT613314Z
R602
Carbon Axial Lead
330 ohm
1/6 W ± 5o/o Taping
BRFT613314Z
R603
Carbon Axial Lead
330 ohm 1/6 W ± 5o/o Taping
BRFT613314Z
R604
Carbon Axial Lead
330 ohm 1/6 W ± 5o/o Taping
BRFT613314Z
R605
Carbon Axial Lead
330 ohm 1/6 W ± 5o/o Taping
BRFT613314Z
R606
Carbon Axial Lead
10 k ohm
1/6 W ± 5o/o Taping
BRFT611
034Z
R607
Carbon Axial Lead
5.6 k ohm
1/6 W ± 5o/o Taping
BRFT615624Z
R608
Carbon Formed Vert 1 k ohm
1/6 W ±5o/o
BRUB611
024Z
R609
Carbon Formed Vert
1
kohm
1/6W ±5o/o
BR UB611
024Z
R610
Carbon Axial Lead
3.3 k ohm
1/6 W ± 5o/o Taping
BRFT613324Z
R611
-Not Used-
R612
Carbon
Axial Lead
33 k ohm
1/6 W ± 5o/o Taping
BRFT613334Z
R613
Carbon
Axial Lead
10 k ohm 1/6 W ± 5o/o Taping
BRFT611
034Z
R614 Carbon Axial Lead
6.8 k ohm
1/6 W ± 5o/o Taping
BRFT616824Z
R615
Carbon
Axial Lead
150 ohm 1/6 W ± 5o/o Taping
BRFT611514Z
R616
Carbon Axial Lead
3.3 k ohm
1/6 W ± 5o/o Taping
BRFT613324Z
R617
Carbon
Axial Lead
3.3 k ohm
1/6 W ± 5o/o Taping
BRFT613324Z
R618
Carbon Axial Lead
1
kohm 1/6 W ± 5o/o Taping
BRFT611
024Z
INTEGRATED CIRCUIT
IC601
LB1423N
BDEY0430001
SWITCHES
-
S601
Slide
SW-557 SSFYP22-14.5B
BSWY0557001
S602
Slide
SW-557 SSFYP22-14.5B
BSWY0557001
8603
Slide
SW-557 SSFYP22-14.5B
BSWY0557001
S604
-Not Used-
S605
Push
SW-629
BSWY0629001
8606
Push
SW-629
BSWY0629001
8607
Push
SW-629
BSWY0629001
-38-
