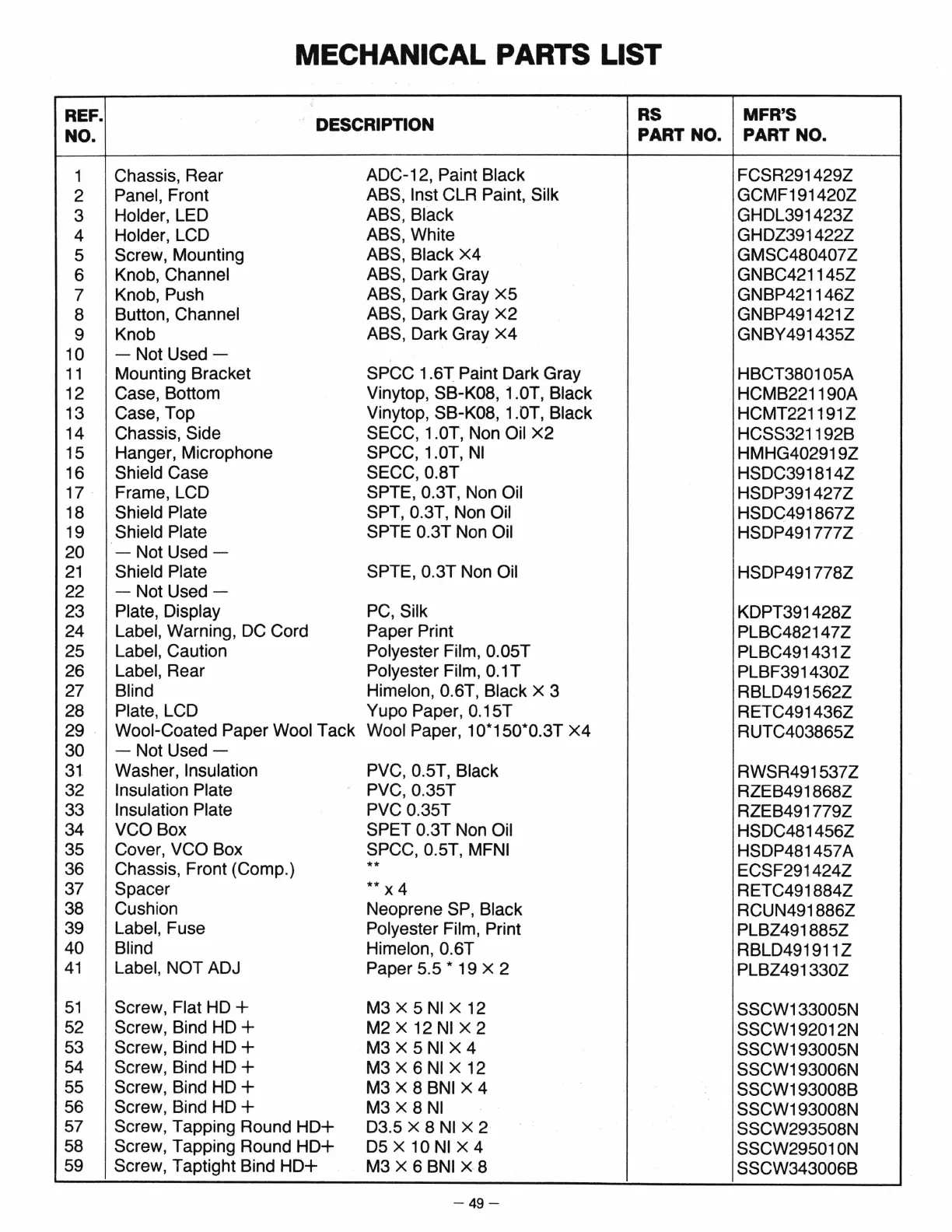

MECHANICAL PARTS LIST
REF.
..
DESCRIPTION
RS
MFR'S
NO.
PART NO. PART NO.
1
Chassis, Rear
ADC-12, Paint
Black
FCSR291429Z
2
Panel, Front
ABS, lnst CLR Paint, Silk
GCMF191420Z
3
Holder, LED
ABS, Black
GHDL391423Z
4
Holder, LCD
ABS, White
GHDZ391422Z
5
Screw, Mounting
ABS, Black X4
GMSC480407Z
6
Knob,
Channel
ABS,
Dark Gray
GNBC421145Z
7
Knob, Push
ABS, Dark Gray X5
GNBP421146Z
8
Button,
Channel
ABS,
Dark Gray X2
GNBP491421 Z
9
Knob
ABS, Dark Gray X4
GNBY491435Z
10
-Not Used-
11
Mounting Bracket SPCC 1 .6T Paint Dark Gray
HBCT3801 05A
12 Case, Bottom
Vinytop,
SB-KOB, 1.0T, Black
HCMB221190A
13
Case, Top
Vinytop,
SB-KOB, 1.0T, Black
HCMT221191 Z
14 Chassis, Side
SECC, 1.0T,
Non Oil X2
HCSS321192B
15
Hanger, Microphone
SPCC, 1.0T, Nl
HMHG402919Z
16 Shield Case
SECC, O.BT
HSDC391814Z
17 .
Frame, LCD
SPTE, 0.3T, Non Oil
HSDP391427Z
18
Shield Plate
SPT, 0.3T,
Non Oil
HSDC491867Z
19
Shield Plate SPTE 0.3T Non Oil
HSDP491777Z
20
-Not Used-
21 Shield Plate SPTE, 0.3T Non Oil
HSDP491778Z
22
-Not Used-
23
Plate, Display PC, Silk
KDPT391428Z
24 Label, Warning,
DC Cord Paper Print
PLBC48214
7Z
25
Label, Caution Polyester Film, 0.05T
PLBC491431Z
26
Label, Rear Polyester Film, 0.1 T
PLBF391430Z
27 Blind Himelon, 0.6T, Black X 3
RBLD491562Z
28 Plate, LCD Yupo Paper, 0.15T
RETC491436Z
29 Wool-Coated Paper
Wool Tack Wool Paper, 1 0*150*0.3T X4
RUTC403865Z
30
-Not Used-
31. Washer, Insulation
PVC, 0.5T, Black
RWSR491537Z
32 Insulation Plate PVC, 0.35T
RZEB491868Z
33
Insulation Plate PVC 0.35T
RZEB491779Z
34
VCO Box
SPET 0.3T Non Oil
HSDC481456Z
35
Cover,
VCO Box
SPCC, 0.5T, MFNI
HSDP481457 A
36
Chassis, Front (Camp.)
**
ECSF291424Z
37 Spacer
**X 4
RETC491884Z
38 Cushion
Neoprene
SP, Black
RCUN491886Z
39 Label, Fuse
Polyester
Film, Print
PLBZ491885Z
40 Blind
Himelon, 0.6T
RBLD491911 Z
41 Label, NOT ADJ
Paper 5.5 * 19
x 2
PLBZ491330Z
51
Screw, Flat HD +
M3 X 5
Nl X 12
SSCW133005N
52
Screw, Bind HD +
M2 X 12
Nl X 2
SSCW192012N
53 Screw, Bind HD +
M3 X 5
Nl X 4
SSCW193005N
54
Screw, Bind HD +
M3 X 6
Nl X 12
SSCW193006N
55
Screw, Bind HD +
M3 X 8
BNI X 4
SSCW193008B
56 Screw, Bind HD +
M3 X 8
Nl
SSCW193008N
57
Screw, Tapping Round
HD+
03.5 X 8 Nl X 2
SSCW293508N
58
Screw, Tapping Round HD+
D5 X 10 Nl X 4
SSCW29501 ON
59 Screw, Taptight Bind HD+
M3 X 6 BNI X.8
SSCW3430068
