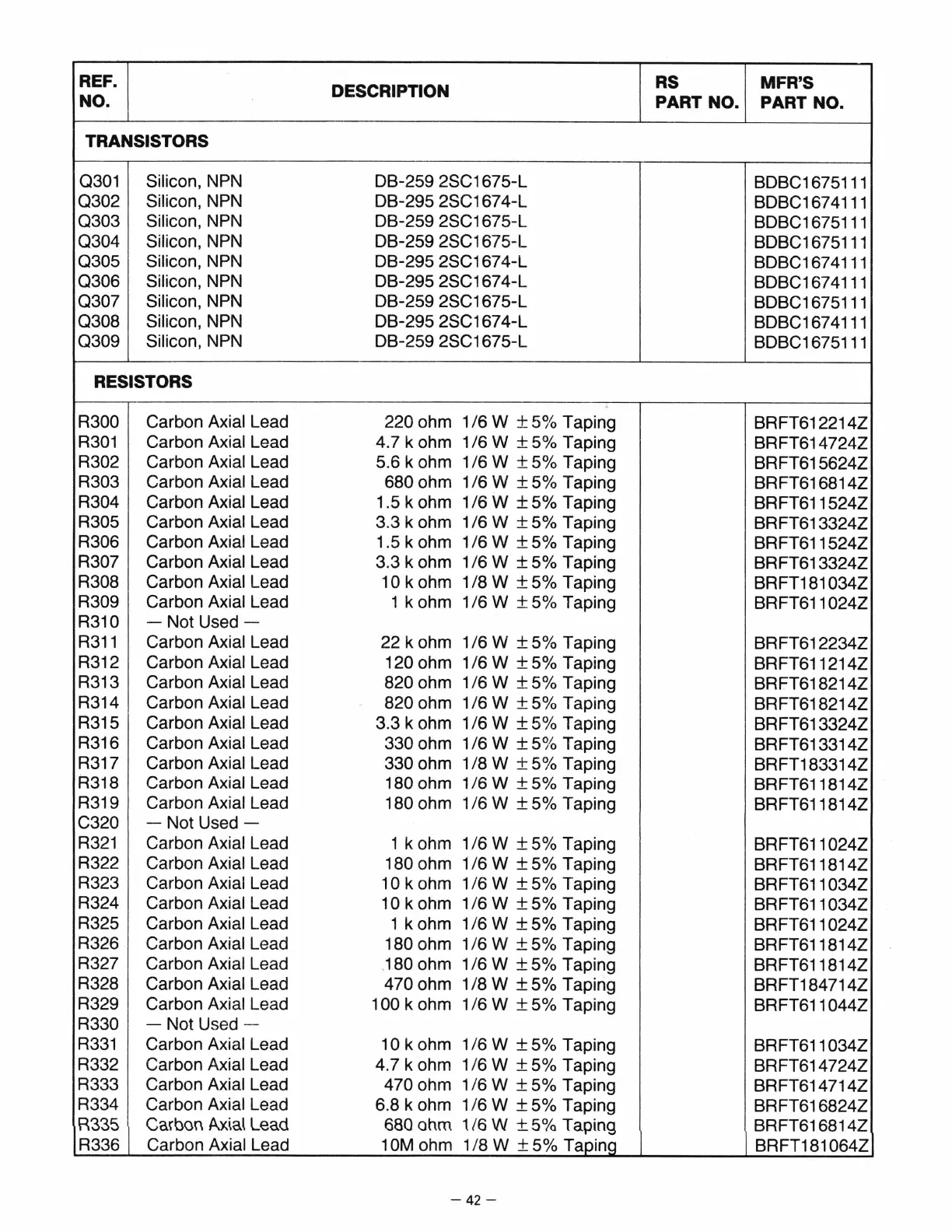

Realistic HTX-100 - Page 41

REF.
DESCRIPTION
RS
MFR'S
NO.
PART NO.
PART NO.
TRANSISTORS
Q301
Silicon, NPN DB-259 2SC1675-L
BDBC1675111
Q302
Silicon,
NPN
DB-295 2SC1674-L
BDBC1674111
Q303 Silicon,
NPN DB-259 2SC1675-L
BDBC1675111
Q304 Silicon,
NPN DB-259 2SC1675-L
BDBC1675111
Q305
Silicon, NPN
DB-295
2SC167 4-L
BDBC1674111
Q306 Silicon,
NPN DB-295 2SC1674-L
BDBC1674111
Q307 Silicon,
NPN DB-259 2SC1675-L
BDBC1675111
Q308 Silicon,
NPN DB-295 2SC1674-L
BDBC 167
4111
Q309
Silicon,
NPN
DB-259 2SC1675-L
BDBC1675111
RESISTORS
R300
Carbon Axial Lead
220 ohm 1/6 W ± 5o/o Taping
BRFT612214Z
R301 Carbon Axial Lead
4.7 k ohm
1/6 W ± 5o/o Taping
BRFT614724Z
R302 Carbon Axial Lead
5.6 k ohm
1/6 W ± 5o/o Taping
BRFT615624Z
R303 Carbon Axial Lead
680 ohm 1/6 W ± 5% Taping
BRFT616814Z
R304
Carbon Axial Lead
1.5 k ohm
1/6 W ± 5o/o Taping
BRFT611524Z
R305
Carbon Axial Lead
3.3 k ohm
1/6 W ± 5o/o Taping
BRFT613324Z
R306 Carbon Axial Lead
1.5 k ohm
1/6 W ± 5o/o Taping
BRFT611524Z
R307 Carbon Axial Lead
3.3 k ohm
1/6 W ± 5o/o Taping
BRFT613324Z
R308
Carbon Axial Lead
10kohm 1/8W ±5o/o Taping
BRFT181
034Z
R309
Carbon Axial Lead
1 k ohm 1/6 W ± 5o/o Taping
BRFT611
024Z
R310
-Not Used-
R311 Carbon Axial Lead
22 k ohm
1/6 W ±5o/a Taping
BRFT612234Z
R312 Carbon
Axial Lead
120 ohm
1/6 W ± 5o/o Taping
BRFT611214Z
R313 Carbon
Axial Lead
820 ohm
1/6 W ± 5o/o Taping
BRFT618214Z
R314
Carbon
Axial Lead
820 ohm
1/6 W ± 5o/o Taping
BRFT618214Z
R315 Carbon
Axial Lead
3.3 k ohm
1/6 W ± So/o Taping
BRFT613324Z
R316
Carbon
Axial Lead
330 ohm
1/6 W ± 5o/o Taping
BRFT613314Z
R317 Carbon
Axial Lead
330 ohm
1/8 W ± 5o/o Taping
BRFT183314Z
R318 Carbon
Axial Lead
180 ohm
1/6 W ± 5o/o Taping
BRFT611814Z
R319 Carbon
Axial Lead
180 ohm
1/6 W ± 5°/o Taping
BRFT611814Z
C320
-Not Used-
R321
Carbon Axial Lead
1 k ohm
1/6 W ± 5o/o Taping
BRFT611
024Z
R322
Carbon
Axial Lead
180 ohm
1/6 W ± 5o/o Taping
BRFT611814Z
R323
Carbon
Axial Lead
10 k ohm
1/6 W ± 5o/o Taping
BRFT611
034Z
R324 Carbon Axial Lead
10 k ohm
1/6 W ± 5o/o Taping
BRFT611
034Z
R325
Carbon
Axial Lead
1
kohm
1/6 W ±5% Taping
BRFT611
024Z
R326
Carbon
Axial Lead
180 ohm
1/6 W ± 5o/o Taping
BRFT611814Z
R327
Carbon
Axial Lead ,180 ohm
1/6 W ± 5o/o Taping
BRFT611814Z
R328
Carbon
Axial Lead
470 ohm
1/8 W ±
5o/o Taping
BRFT184714Z
R329
Carbon
Axial Lead
100 k ohm
1/6 W ± 5o/o Taping
BRFT611
044Z
R330
-Not Used --
R331
Carbon Axial Lead 10 k ohm
1/6 W ± 5o/o Taping
BRFT611
034Z
R332 Carbon Axial Lead
4.7 k ohm
1/6 W ± 5o/o Taping
BRFT614724Z
R333 Carbon
Axial Lead
470 ohm
1/6 W ± 5o/o Taping
BRFT614714Z
R334
Carbon
Axial Lead
6.8 k ohm
1/6 W ± 5o/o Taping
BRFT616824Z
R335
Carbon Ax~al Lead
680 ohm 1/6 W ±5°/o Taping
BRFT616814Z
R336 Carbon
Axial Lead
1OM ohm 1/8 W ± 5o/o Taping
BRFT181
064Z
-42-
