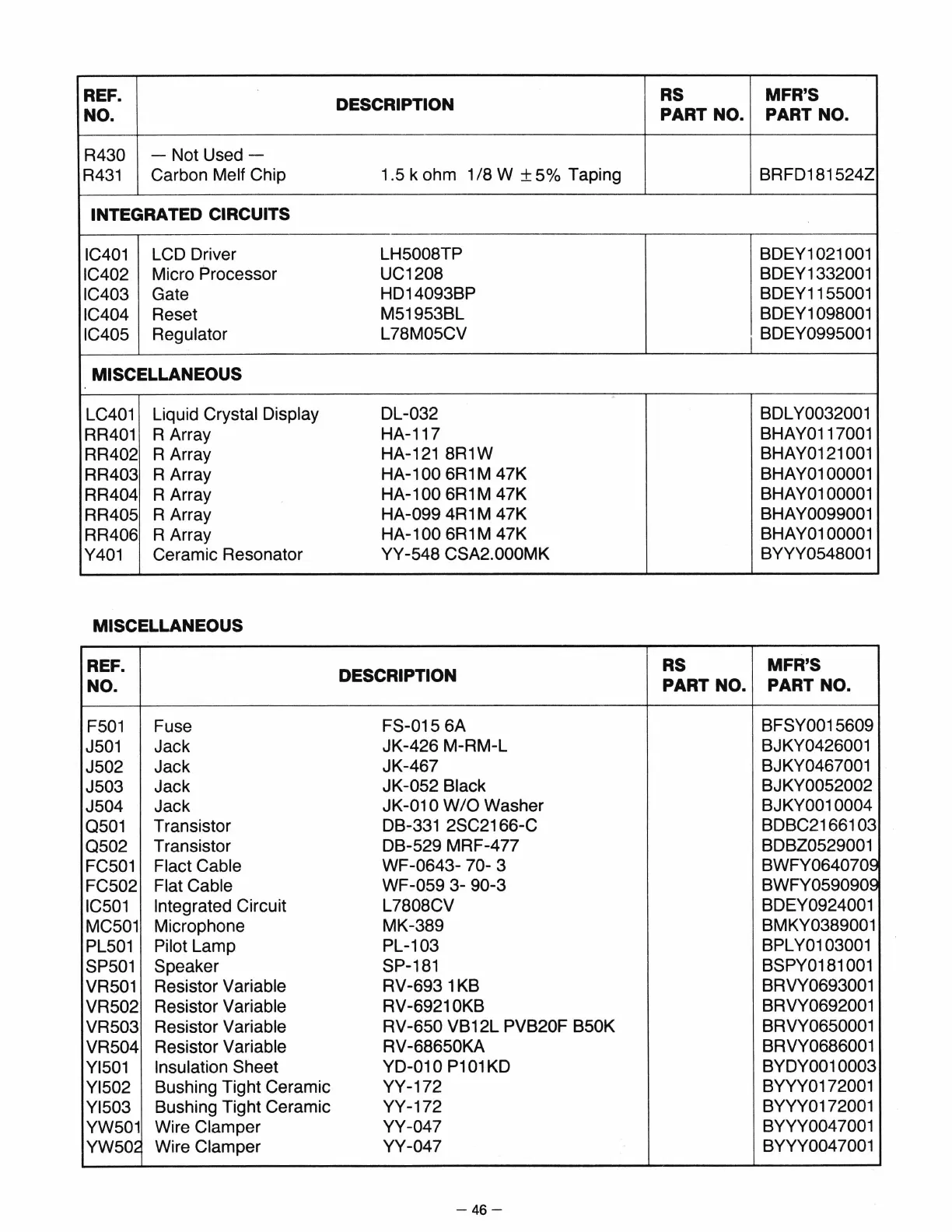

Realistic HTX-100 - Page 45

REF.
DESCRIPTION
RS MFR'S
NO.
PART NO. PART NO.
R430
-Not Used-
R431
Carbon Melf Chip 1.5 k ohm 1/8 W ± 5o/o Taping
BRFD181524Z
INTEGRATED CIRCUITS
IC401
LCD
Driver
LH5008TP BDEY1
021001
IC402
Micro Processor
UC1208
BDEY1332001
IC403
Gate
HD14093BP
BDEY1155001
IC404
Reset
M51953BL
BDEY1
098001
IC405
Regulator
L78M05CV
BDEY0995001
MISCELLANEOUS
LC401
Liquid Crystal Display
DL-032 BDL Y0032001
RR401
R Array
HA-117
BHA Y0117001
RR402
R Array
HA-121 8R1W BHAY0121 001
RR403
R Array
HA-1
00 6R1 M 47K BHAY01 00001
RR404
R Array
HA-1
00 6R1 M 47K
BHAY01 00001
RR405
R Array
HA-099 4R1M 47K
BHAY0099001
RR406
R Array
HA-100 6R1M 47K
BHAY01 00001
Y401
Ceramic Resonator
YY-548
CSA2.000MK
BYYY0548001
MISCELLANEOUS
REF.
DESCRIPTION
RS MFR'S
NO.
PART NO.
PART NO.
F501
Fuse
FS-015 6A BFSY001 5609
J501
Jack
JK-426
M-RM-L
BJKY0426001
J502
Jack
JK-467
BJKY0467001
J503
Jack
JK-052
Black
BJKY0052002
J504
Jack
JK-01
0 W/0 Washer
BJKY0010004
0501
Transistor
DB-331
2SC2166-C
BDBC21661 03
0502
Transistor
DB-529 MRF-477
BDBZ0529001
FC501
Flact
Cable
WF
-0643- 70- 3
BWFY0640709
FC502
Flat Cable
WF-059 3- 90-3 BWFY0590909
IC501
Integrated
Circuit
L7808CV
BDEY0924001
MC501
Microphone
MK-389
BMKY0389001
PL501
Pilot
Lamp
PL-1
03
BPL Y01 03001
SP501
Speaker
SP-181
BSPY0181
001
VR501
Resistor Variable
RV-6931KB
BRVY0693001
VR502
Resistor Variable
RV-69210KB
BRVY0692001
VR503
Resistor Variable
RV -650 VB
12L PVB20F B50K
BRVY0650001
VR504
Resistor Variable
RV-68650KA
BRVY0686001
Yl501
Insulation Sheet
YD-01 0
P1 01 KD
BYDY001 0003
Yl502
Bushing Tight Ceramic
YY-172
BYYY0172001
Yl503
Bushing Tight Ceramic
YY-172
BYYY0172001
YW501
Wire Clamper
YY-047
BYYY004
7001
YW502
Wire Clamper
YY-047
BYYY004 7001
-46-
