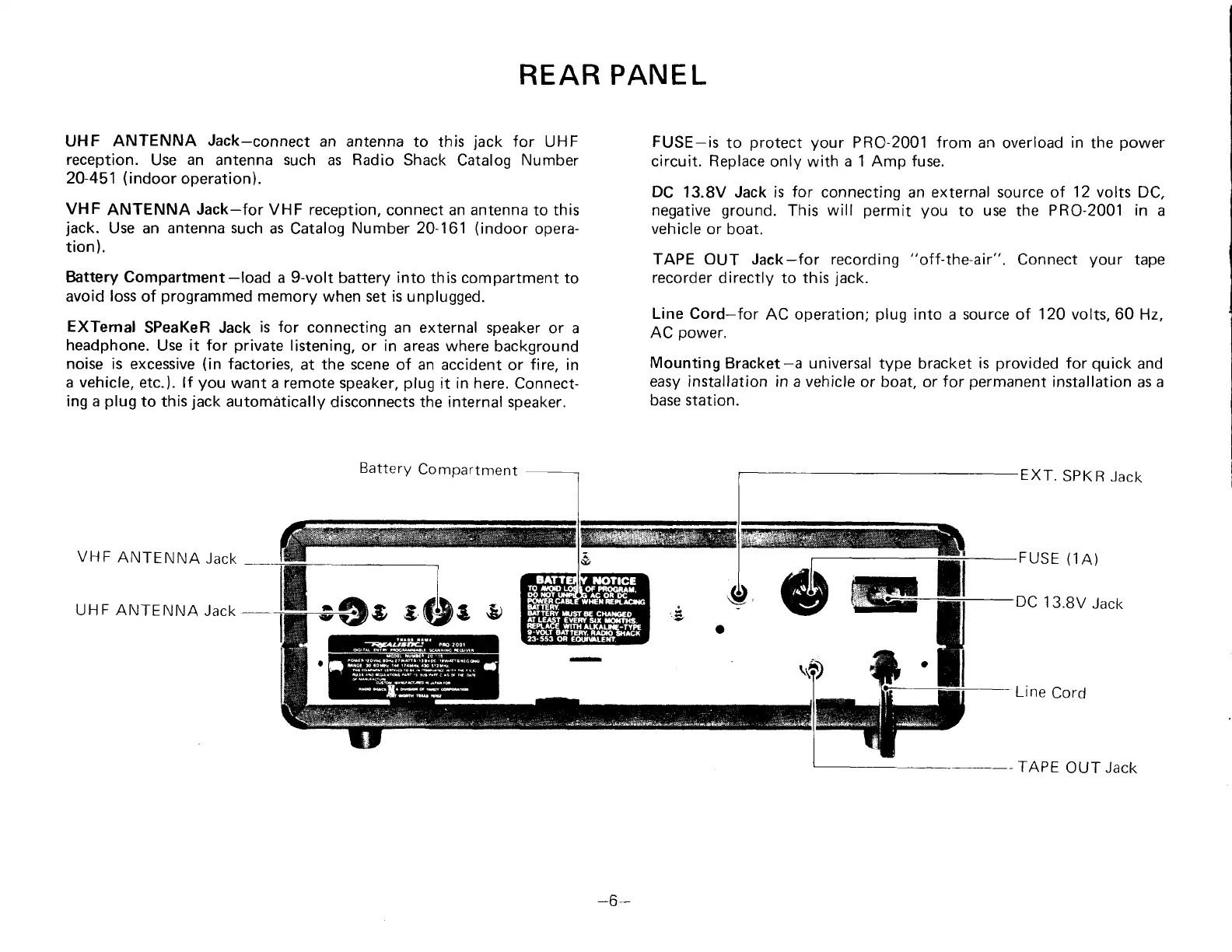

Realistic PRO-2001 - Rear Panel

UHF
ANTENNA
Jack-connect
an
antenna to this
jack
for
UHF
reception.
Use an antenna such as Radio Shack
Catalog
Number
20-451
(
i ndoor
operation
).
VHF
ANTENNA
Jack-for
VHF reception,
connect an antenna
to
this
jack.
Use
an
antenna such
as
Catalog
Number 20-161
(indoor
opera-
tion
).
Battery Compartment-load
a
9-volt
battery
into
this compartment to
avoid
loss
of
programmed
memory when set is
unplugged.
EXTernal
SPeaKeR Jack
is
for
connecting an external speaker
or a
headphone.
Use
it for
private
listening,
or in areas where
background
noise is excessive
(in
factories,
at
the
scene of an accident
or
fire, in
a
vehicle,
etc.). lf
you
wanta
remote
speaker,
plug
it in here. Connect-
ing
a
plug
to this
jack
automatically
disconnects the internal speaker.
VHF
ANTENNA
Jao<
_
UH
F
ANTENNA
JACK
-
FUSE-is
to
protect your
PRC-2001 from an
overload
in
the
power
circuit. Replace
only with
a 1 Amp fuse.
DC
13.8V Jack is
for
connecting
an
external source of
12
volts DC,
negative
ground.
This
will
permit
you
to
use
the
PRO-2001
in
a
vehicle
or
boat.
TAPE
OUT Jack-for recording
"off-the-air".
Connect
your
tape
recorder
directly to this
jack.
Line Cord-for
AC operation;
plug
into a source of
12O
volts,60 Hz,
AC
power.
Mounting
Bracket-a universal
type bracket
is
provided
for
quick
and
easy installation in a
vehicle or boat, or
for
permanent
installation
as
a
base station.
EXT.
SPKR
Jack
r-
u)tr
(1A)
13.8V
Jack
Line
Cord
---
TAPE
OUT
Jack
REAR PAN E L
Battery
Compartment
i
I
,s
s
69e
.p
-6-
