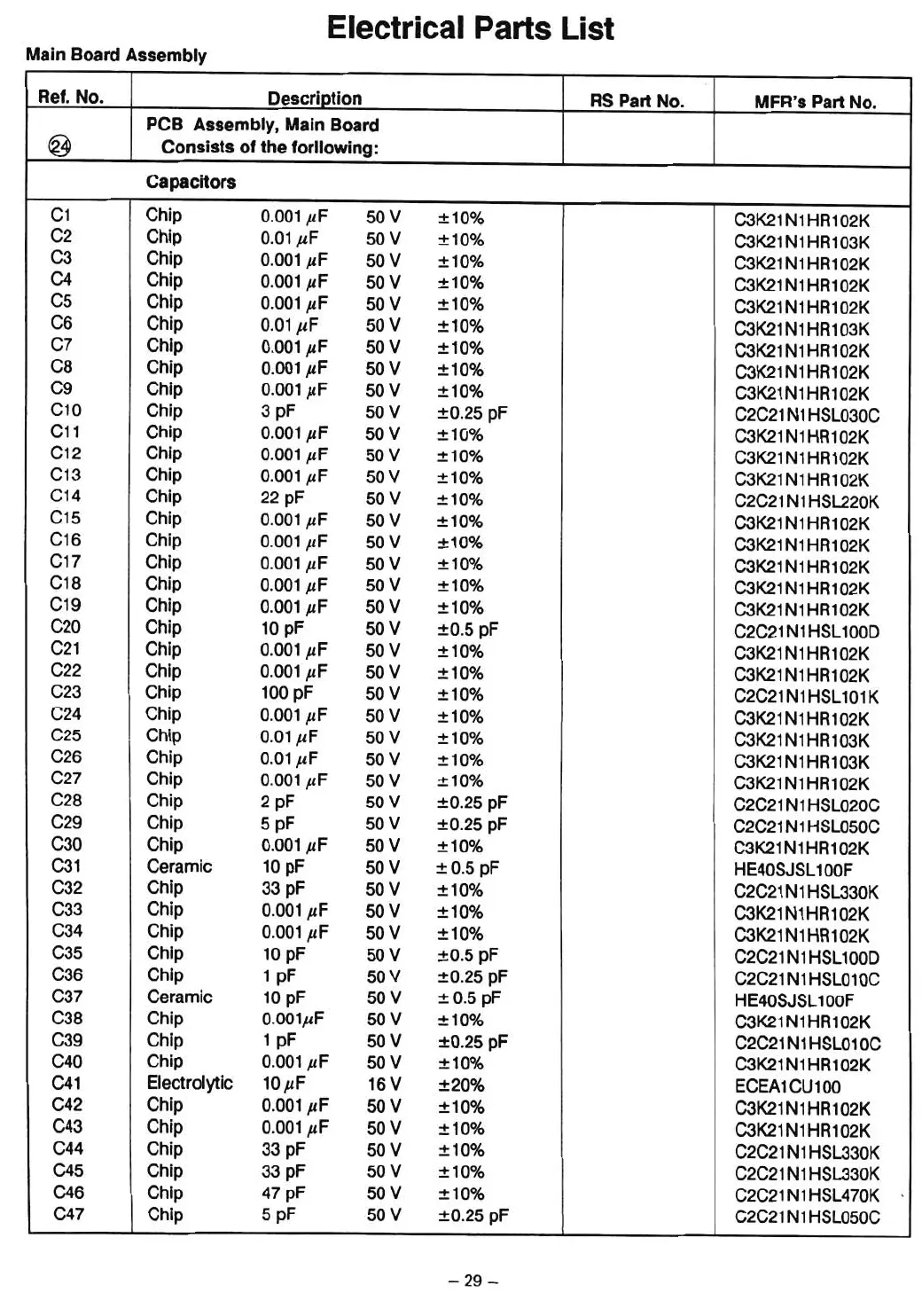

Realistic PRO-2022 - Electrical Parts List; Electrical Components List

Main Board Assembly
Electrical Parts List
Ref. No.
DescriDtion
RS Part No.
MFR's Part No.
PCB Assembly, Maln Board
~
Consists of the forllowing:
Capacitors
C1
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C2
Chip
0.01,uF
50V
±10%
C3K21N1HR103K
C3
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C4
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
Cs
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C6
Chip
0.01,uF
50V
±10%
C3K21N1HR103K
C7
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C8
Chip
0
.OO1,uF
50V
±10%
C3K21N1HR102K
C9
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C10
Chip
3 pF
50V
±0 .25 pF
C2C21N1HSL030C
C11
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C12
Chip
0.001,uF
SOV
±10%
C3K21N1HR102K
C13
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C14
Chip
22 pF
50V
±10%
C2C21N1HSL220K
C15
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C16
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C17
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C18
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C19
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C20
Chip
10 pF
50V
±0 .5 pF
C2C21N1HSL1
OOD
C21
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C22
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C23
Chip
100 pF
50V
±10%
C2C21N1HSL101K
C24
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C2S
Chip
0.01,uF
50V
±10%
C3K21N1HR103K
C26
Chip
0.01,uF
50V
±10%
C3K21N1HR103K
C27
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C28
Chip
2 pF
50V
±0 .25 pF
C2C21N1HSL020C
C29
Chip
5 pF
50V
±0.25 pF
C2C21N1HSLOSOC
C30 Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C31
Ceramic
10 pF
50V ±0.5 pF
HE40SJSL1
OOF
C32
Chip
33 pF
50V
±10%
C2C21N1HSL330K
C33
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C34
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C35 Chip
10 pF
50V
±0.5 pF
C2C21N1HSL100D
C36 Chip
1 pF
50V
±0.25 pF
C2C21N1HSL010C
C37
Ceramic
10 pF
50V ±O.S pF
HE40SJSL1
OOF
C38 Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C39 Chip
1 pF
50V
±O.25 pF
C2C21N1HSL010C
C40
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C41
Electrolytic
10,uF
16V
±20%
ECEA1CU100
C42
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C43
Chip
0.001,uF
50V
±10%
C3K21N1HR102K
C44
Chip
33 pF
50V
±10%
C2C21N1HSL330K
C45 Chip
33 pF
50V
±10%
C2C21N1HSL330K
C46
Chip 47 pF
50V
±10%
C2C21N1HSL470K
C47
Chip
5 pF
50V
±0.25 pF
C2C21N1
HSLOSOC
