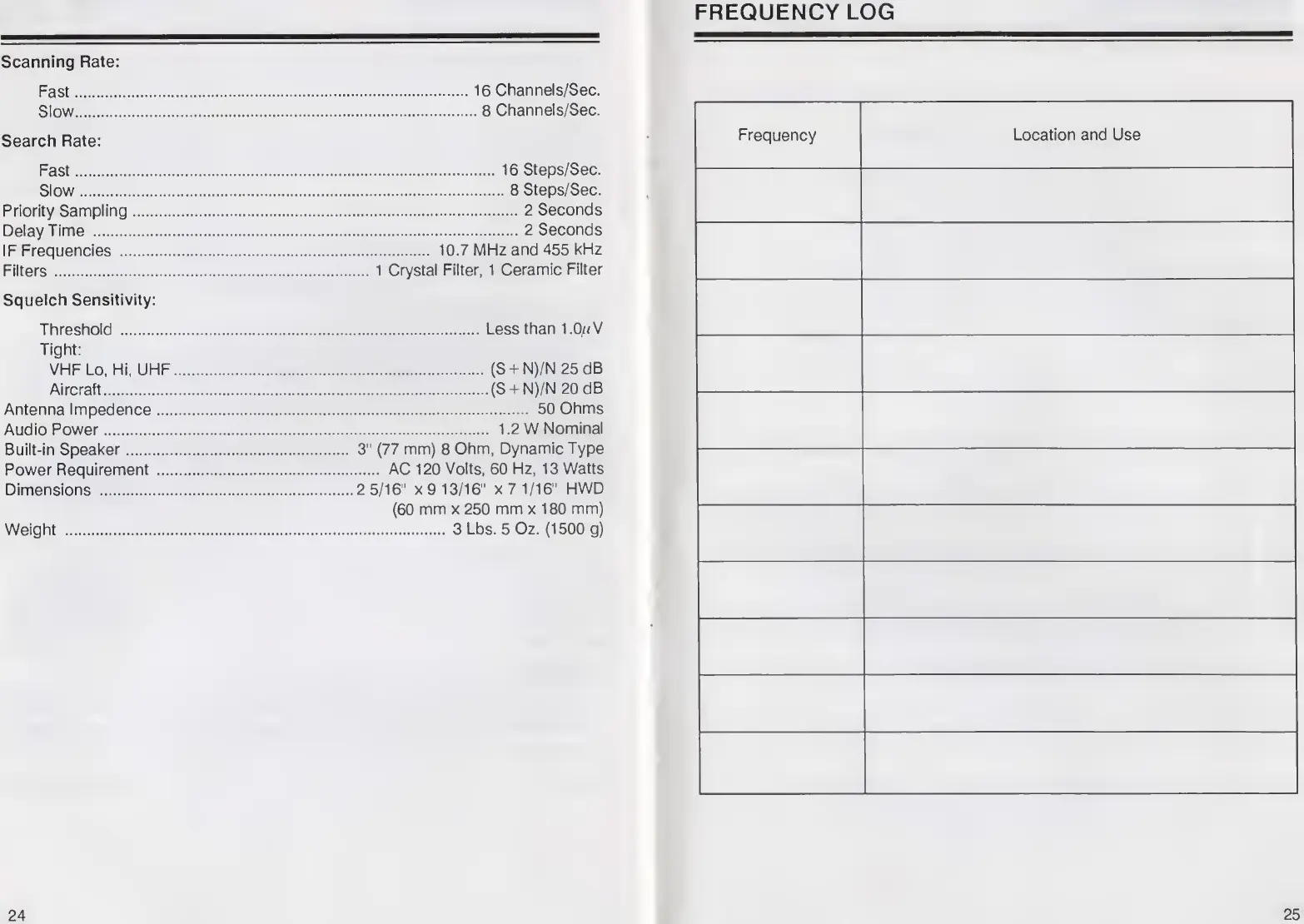

Realistic PRO-2024 - Page 13

16 Channels/Sec.
. 8 Channels/Sec.
Scanning Rate:
Fast.
Slow.
Search Rate:
Fast.
Slow.
Priority Sampling.
Delay Time .
IF Frequencies .
Filters.
Squelch Sensitivity:
Threshold .
Tight:
VHF Lo, Hi, UHF
Aircraft.
Antenna Impedence ....
Audio Power.
Built-in Speaker.
Power Requirement ....
Dimensions .
Weight .
.16 Steps/Sec.
.8 Steps/Sec.
.2 Seconds
.2 Seconds
. 10.7 MHz and 455 kHz
1 Crystal Filter, 1 Ceramic Filter
.Less than 1.0/<V
.(S + N)/N 25 dB
.(S + N)/N 20 dB
. 50 Ohms
. 1.2 W Nominal
3" (77 mm) 8 Ohm, Dynamic Type
. AC 120 Volts, 60 Hz, 13 Watts
2 5/16* X 9 13/16" X 7 1/16" HWD
(60 mm x 250 mm x 180 mm)
.3 Lbs. 5 Oz. (1500 g)
24
FREQUENCY LOG
Frequency
Location and Use
