Realistic STA-720 - Dial Stringing Diagram

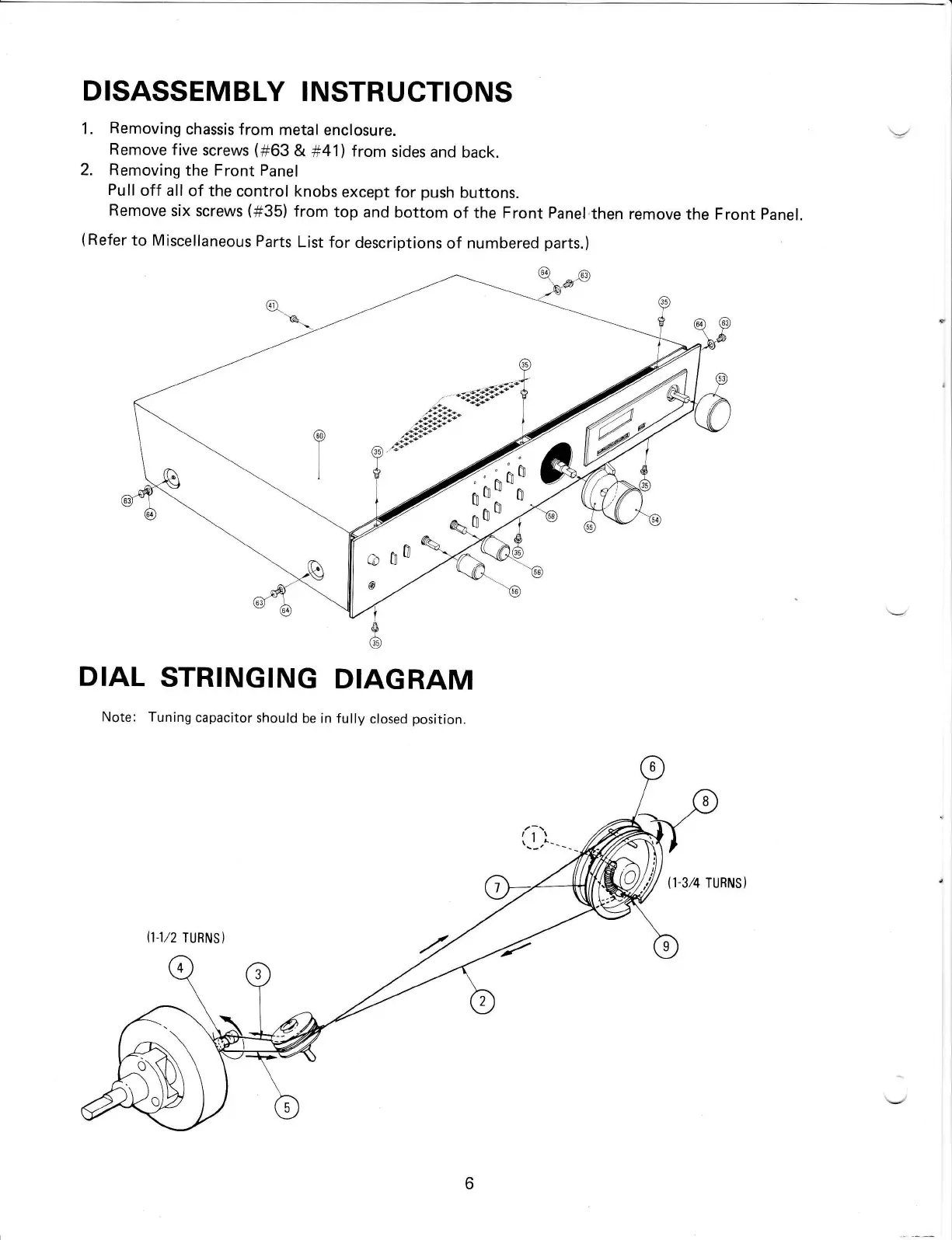

DISASSEMBLY
INSTRUCTIONS
1.
Removing
chassis
from
metal
enclosure.
Remove
five
screws
(#63
&
#41lr
from
sides
and
back.
2. Removing
the
Front Panel
Pull
off all
of the
control knobs
except
for
push
buttons.
Remove
six screws
(#35)
from
top
and bottom
of
the Front Panel,then
remove
the Front Panel.
(Refer
to Miscellaneous
Parts
List for
descriptions
of
numbered
parts.)
DIAL
STRINGING
DIAGRAM
Note: Tuning
capacitor
should
be in
fully
closed
position.
fi-rl2
TURNS)
6
