Realistic trc-448 - Alignment Connections; Band Pass Filter Alignment; Transmitting Section Alignment Setup

Best wave form

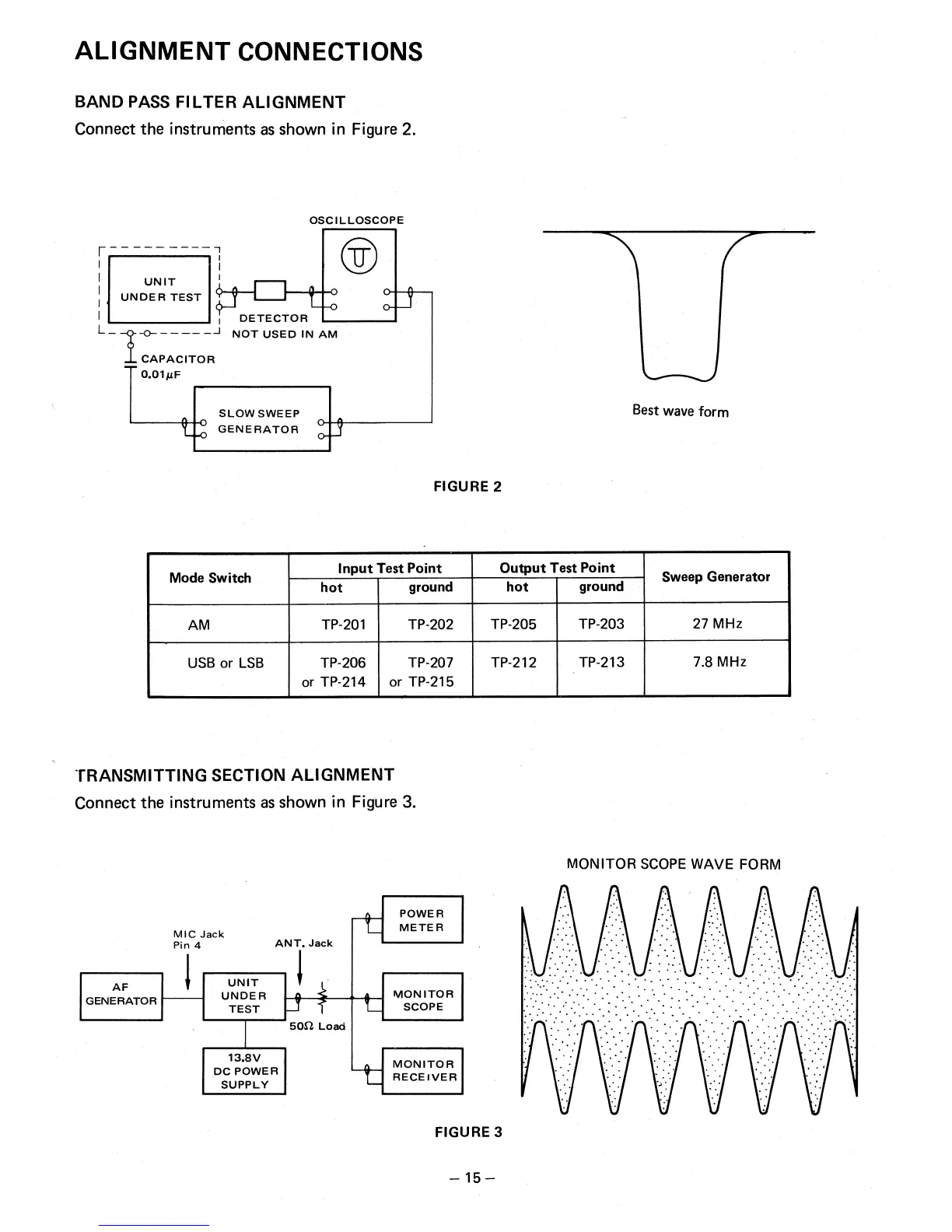

ALIGNMENT CONNECTIONS
BAND PASS FILTER ALIGNMENT
Connect the instruments as shown in Figure 2.
FIGURE 2
Mode Switch
Input Test Point
Output Test Point
Sweep Generator
hot
ground
hot
ground
AM
TP-201
TP-202
TP-205
TP-203
27 MHz
USB or LSB
TP-206
or TP-214
TP-207
or TP-215
TP-212
TP-213
7.8 MHz
TRANSMITTING SECTION ALIGNMENT
Connect the instruments as shown in Figure 3.
MONITOR SCOPE WAVE FORM
FIGURE 3
— 15 —
