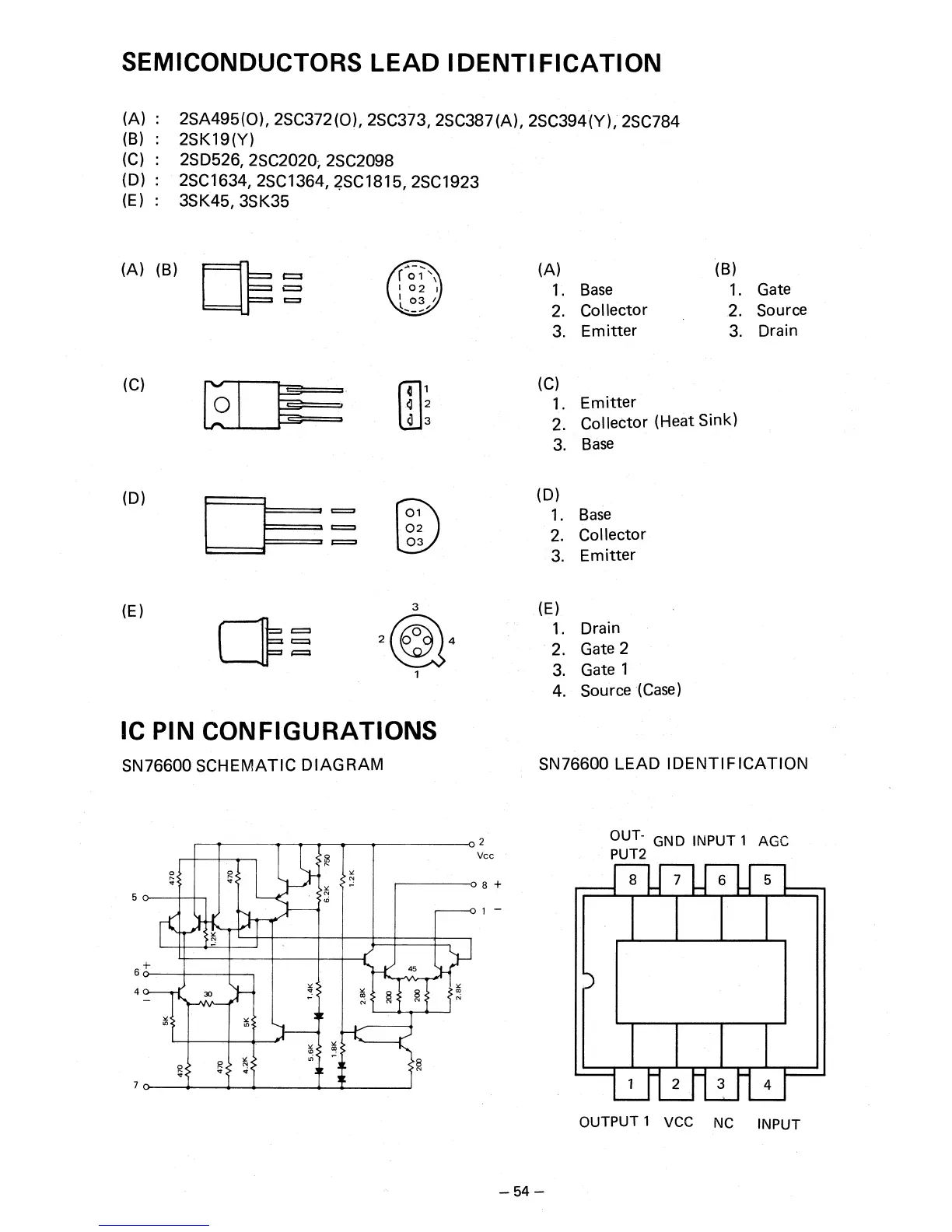

SEMICONDUCTORS LEAD IDENTIFICATION
(A)
: 2SA495(0), 2SC372(0), 2SC373, 2SC387(A), 2SC394(Y), 2SC784
(B)
: 2SK19(Y)
(C)
: 2SD526, 2SC2020, 2SC2098
(D)
: 2SC1634, 2SC1364, ?SC1815, 2SC1923
(E)
: 3S K45, 3S K35
(A) (B)
(A)
1.
Base
2.
Collector
3.
Emitter
(B)
1.
Gate
2.
Source
3.
Drain
(C)
T
4
1
2
3
(C)
1.
Emitter
2.
Collector (Heat Sink)
3.
Base
(D)
(D)
1.
Base
2.
Collector
3.
Emitter
(E)
(E)
1.
Drain
2.
Gate 2
3.
Gate 1
4.
Source (Case)
IC PIN CONFIGURATIONS
SN76600 SCHEMATIC DIAGRAM

SN76600 LEAD IDENTIFICATION
OUTPUT 1 VCC NC INPUT
