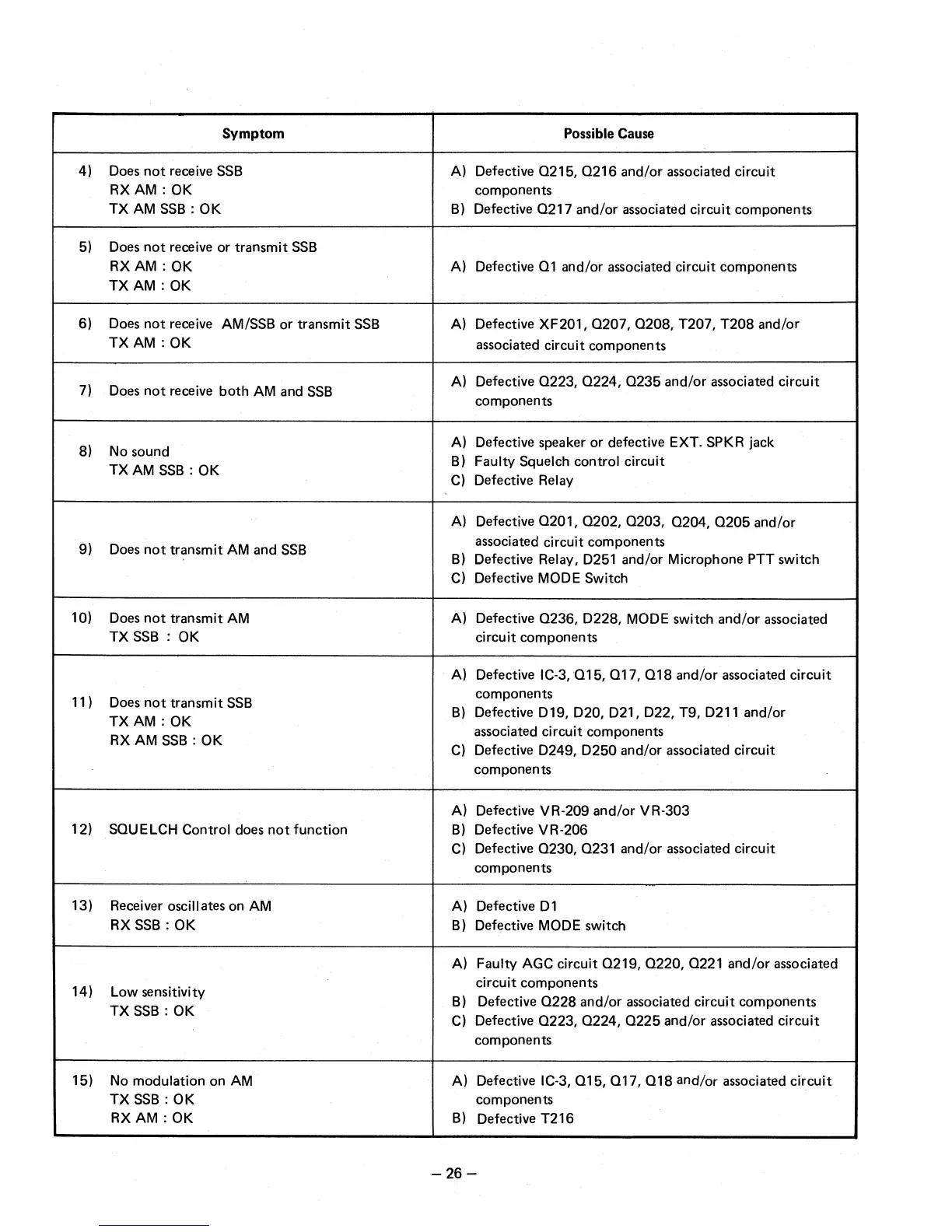

Symptom Possible Cause
4)
Does not receive SSB
RX AM : OK
TX AM SSB : OK
A)
Defective Q215, Q216 and/or associated circuit
components
B)
Defective Q217 and/or associated circuit components
5) Does not receive or transmit SSB
RX AM : OK
TX AM : OK
A) Defective Q1 and/or associated circuit components
6)
Does not receive AM/SSB or transmit SSB
TX AM : OK
A) Defective XF201, Q207, Q208, T207, T208 and/or
associated circuit components
7)
Does not receive both AM and SSB
A) Defective Q223, Q224, Q235 and/or associated circuit
components
8) No sound
TX AM SSB : OK
A)
Defective speaker or defective EXT. SPKR jack
B) Faulty Squelch control circuit
C)
Defective Relay
9)
Does not transmit AM and SSB
A)
Defective Q201, Q202, Q203, Q204, Q205 and/or
associated circuit components
B)
Defective Relay, D251 and/or Microphone PTT switch
C) Defective MODE Switch
10)
Does not transmit AM
TX SSB : OK
A) Defective Q236, D228, MODE switch and/or associated
circuit components
11)
Does not transmit SSB
TX AM : OK
RX AM SSB : OK
A)
Defective IC-3, Q15, Q17, Q18 and/or associated circuit
components
B) Defective D19, D20, D21, D22, T9, D211 and/or
associated circuit components
C)
Defective D249, D250 and/or associated circuit
components
12)
SQUELCH Control does not function
A)
Defective VR-209 and/or VR-303
B) Defective VR-206
C)
Defective Q230, Q231 and/or associated circuit
components
13)
Receiver oscillates on AM
RX SSB : OK
A) Defective D1
B)
Defective MODE switch
14)
Low sensitivity
TX SSB : OK
A) Faulty AGC circuit Q219, Q220, Q221 and/or associated
circuit components
B) Defective Q228 and/or associated circuit components
C)
Defective Q223, Q224, Q225 and/or associated circuit
components
15)
No modulation on AM
TX SSB : OK
RX AM : OK
A) Defective IC-3, Q15, Q17, Q18 and/or associated circuit
components
B) Defective T216
— 26 --
