Realtek RTL8201(L) - Characteristics; Transmission Without Collision; Reception Without Error

RTL8201(L)
2002-01-18 Rev.1.04
24
8.2 A.C. Characteristics
8.2.1 Transmission Without Collision

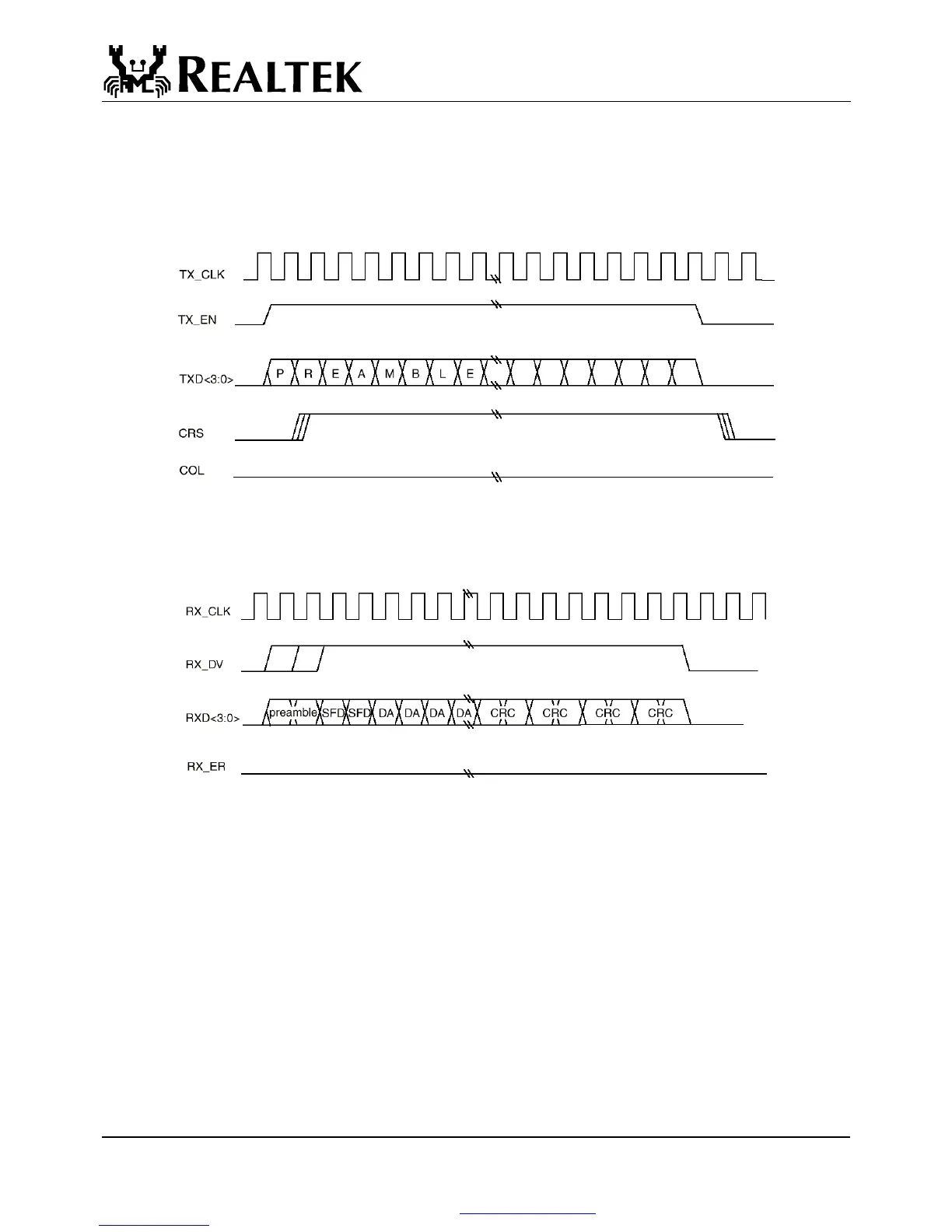

Shown is an example transfer of a packet from MAC to PHY.
8.2.2 Reception Without Error
Shown is an example of transfer of a packet from PHY to MAC
