RTL8762E Evaluation Board User Manual
6
Copyright 2021 Realtek Semiconductor Corporation.
All Rights Reserved.
1. RTL8762E Evaluation Board Introduction
1.1 RTL8762E EVB introduction
This document introduces usage of 8762E Bluetooth
®
Evaluation Board (EVB) Hardware. 8762E EVB provides
hardware environment for customer to develop their own application, which includes:
1. Voltage converter.
2. 6-axis motion sensor.
3. 4 LEDs and 6 keys.
4. Button battery and Li-ion battery holder.
5. USB to UART converter (FT232RL).
1.2 Evaluation Board Interface
1.2.1 Interface Description

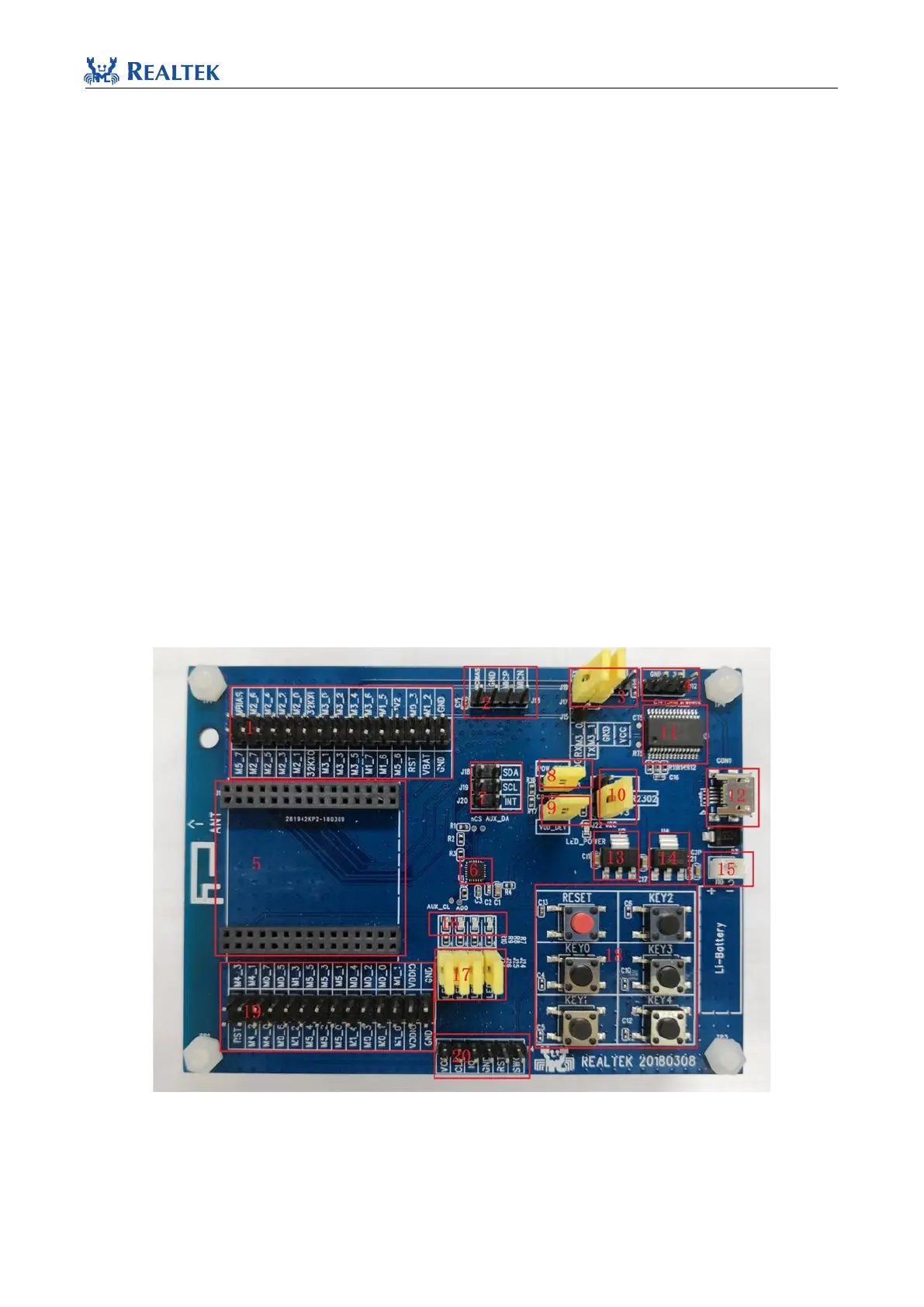

Distribution of EVB block and interface is shown in Figure 1-1 and Figure 1-2.
Figure 1-1 EVB Interface Block Diagram
