RTL8762E Evaluation Board User Manual
9
Copyright 2021 Realtek Semiconductor Corporation.
All Rights Reserved.
8) Mark 4: GND jumper.
1.2.4 IO Port
1) Mark 1: 2 × 15 IO Jumper
2) Mark 19: 2 × 14 IO Jumper
1.2.5 Interface
1) Mark 2: MIC Test Jumper for external MIC
2) Mark 3: UART /LOG Test Jumper.

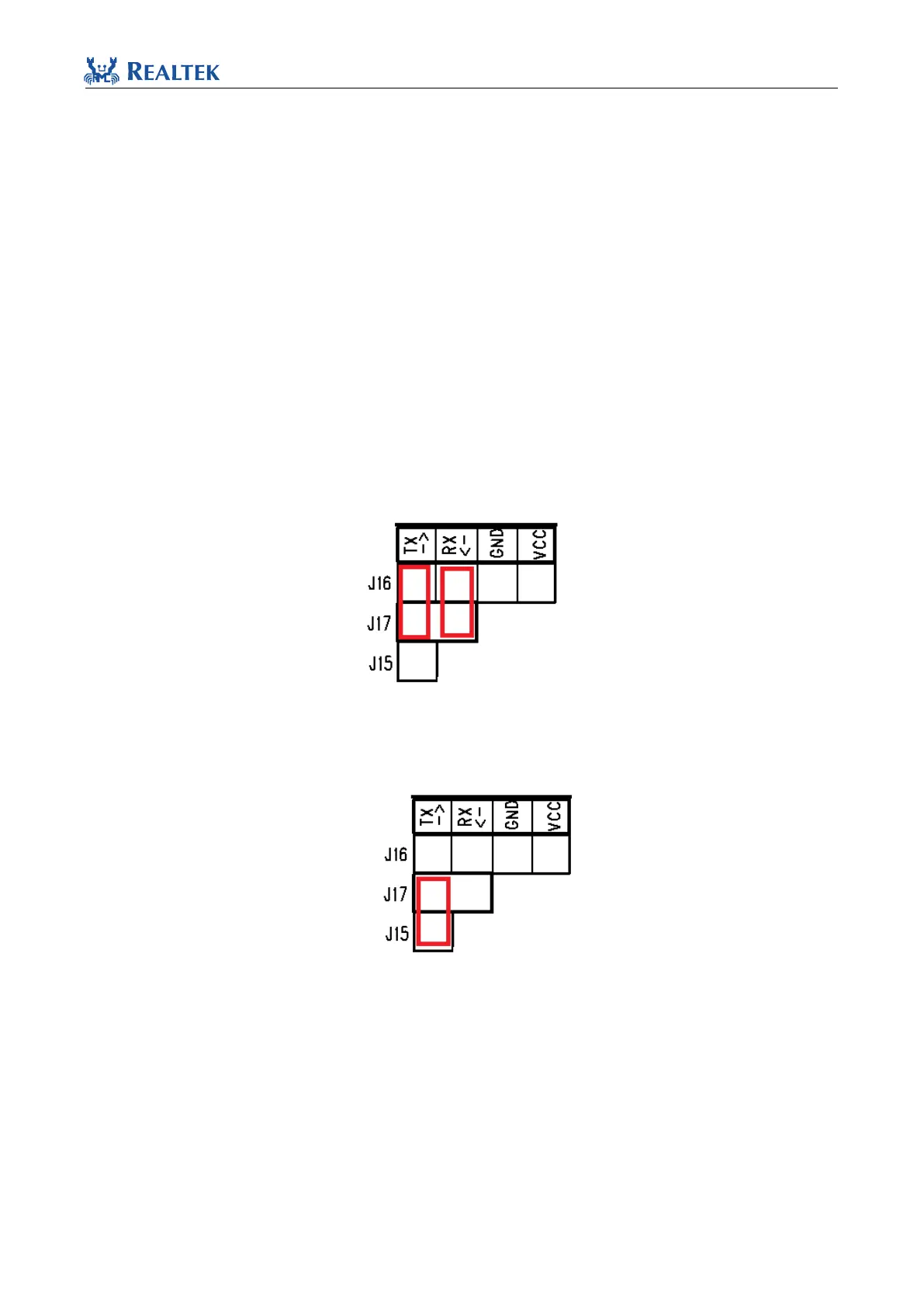

a) Connection of Jumper for HCI UART Test is shown in figure 1-5:
Figure 1-5 Connection of HCI UART Jumper
b) Connection of Jumper for Log Test:
Figure 1-6 Connection of LOG
3) Mark 6: G-sensor, which is a 6-axis motion sensor, is powered by VDD_DEV. Thus, J6 need be connected
when G-sensor is required.
4) Mark 7: I2C interface of 6-axis motion sensor. Connection of Jumper J18, J19 and J20 is shown in figure 1-7.
