Filter Box
Shows the name of the currently selected RX (!) audio filter. Top line is the upper
frequency, lower line the characteristic parameter:
• BPF -> ~300 - upper frequency
• LPF -> 0 - upper frequency
• otherwise width (300/500 -> for narrow CW filters) or center frequency (for
narrow SSB filters) is shown

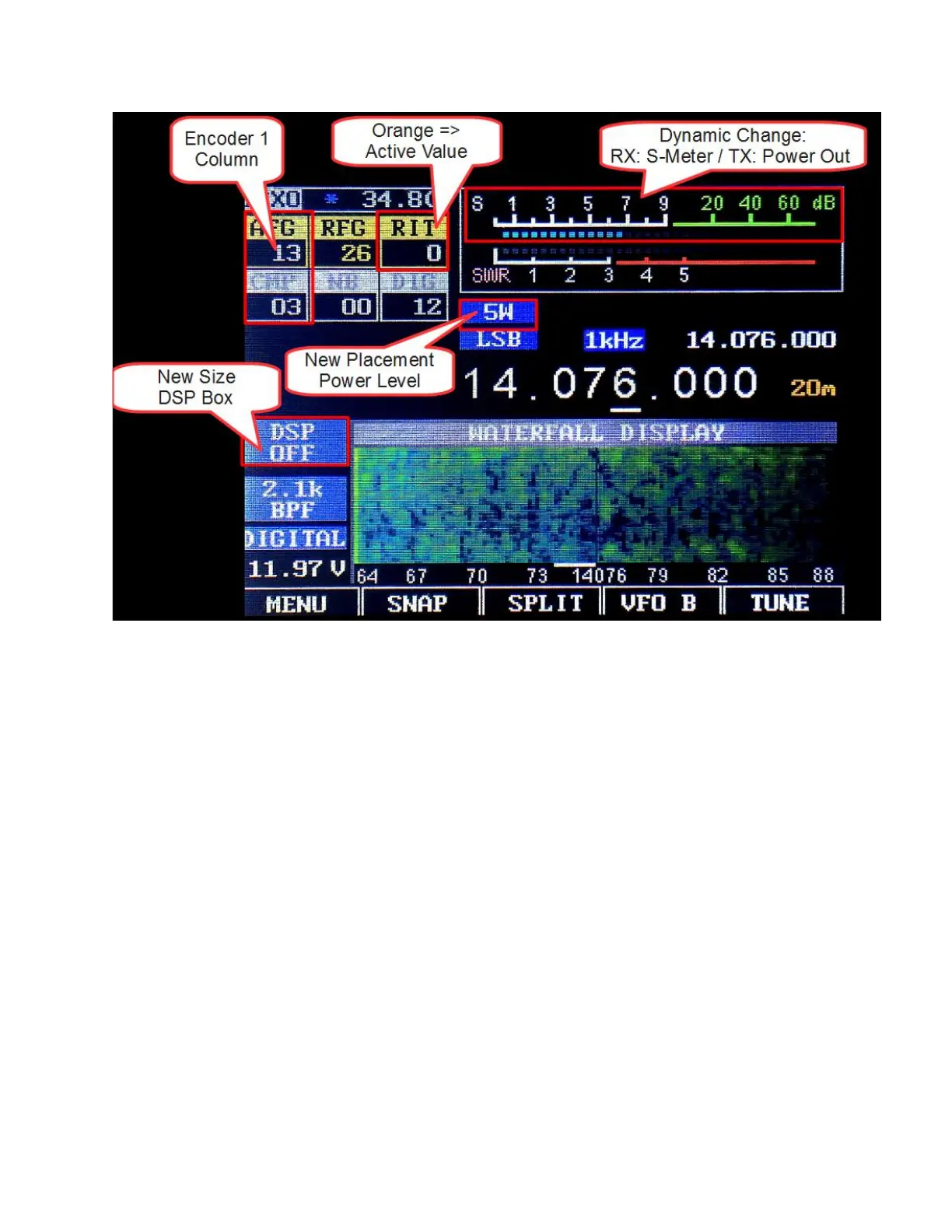

LCD Touchscreen Functions
To Next Page
