User Guide for FCA Series Hand Laser Welding System
26
5.2 Monitor Page

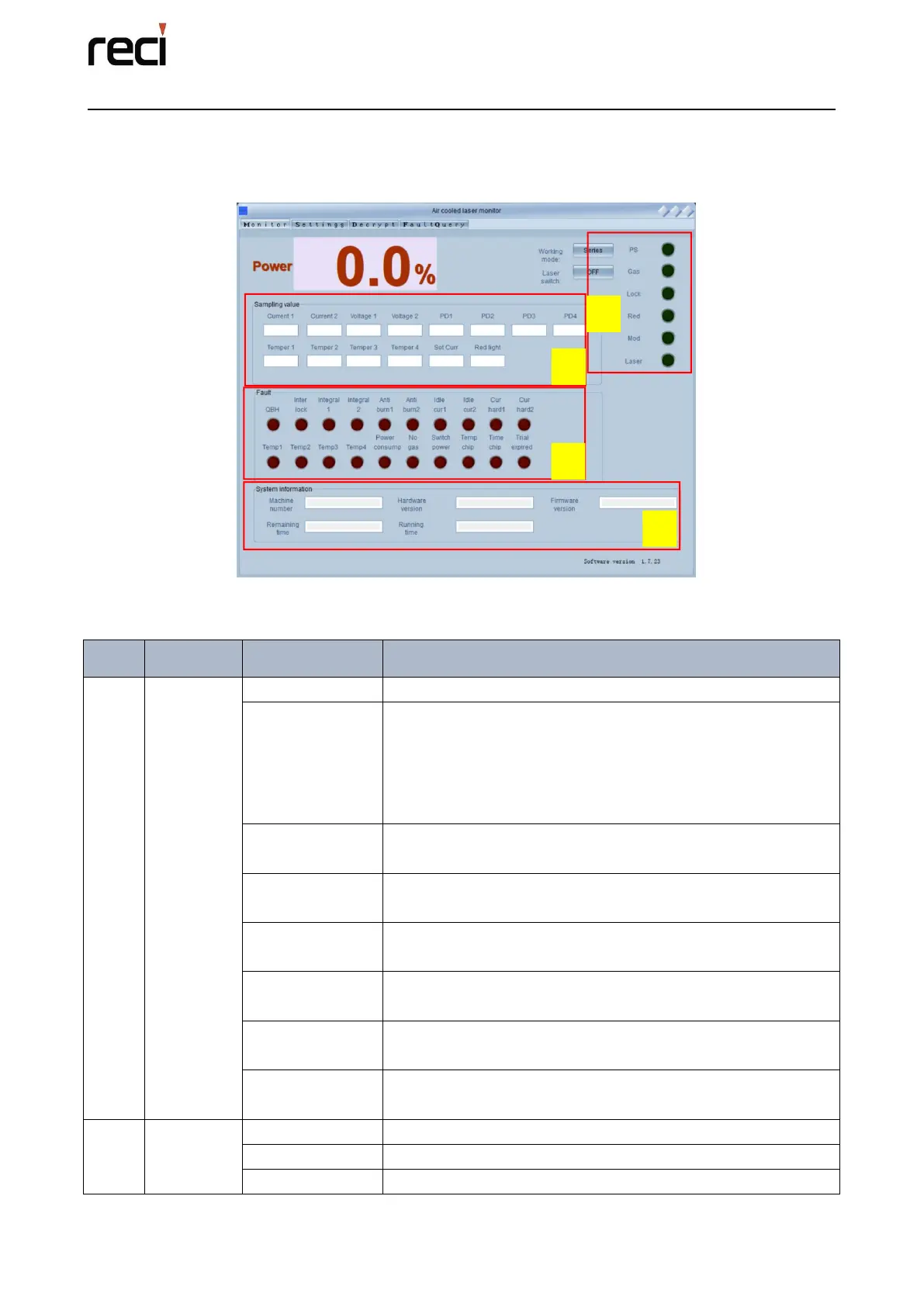

Click “Monitor” to cut over the interface to “Monitor Page”, just as the following figure 5.3:
11Figure5.3 Monitor Page
Table 5.1 The function of the buttons on Monitor Page
NO
MODULE
DESCRIPTION
FUNCTION
1.
Operation
instructions
Work mode
The laser has two work modes: series and spot welding.
Laser en
This function is used to turn on and turn off the laser. In the
off state, there is only red indicator light and no laser
outputs, which is often used for galvanometer debugging.
In the on state, the red indicator light and laser are
automatically switched according to the input conditions
PS
When the light is on, the power supply of the device is
ready.
Gas
When the light is on, the air pressure at GAS IN meets the
requirements.
Lock
When the light is on, it means that the workpiece clamp and
the weld head are closed.
Red
When the light is on, it means that the red indicator light is
being emitted.
MOD
When the light is on, it means that the button on the weld
head is closed.
Laser
When the light is on, it means that the laser is being
emitted, please pay attention to protection.
2.
Sampled
value
Current
Display current sampling value.
Voltage
Display voltage sampling value.
PD
Display laser sampling value.
1
2
3
4
1
2
4
3
