8. Assembly

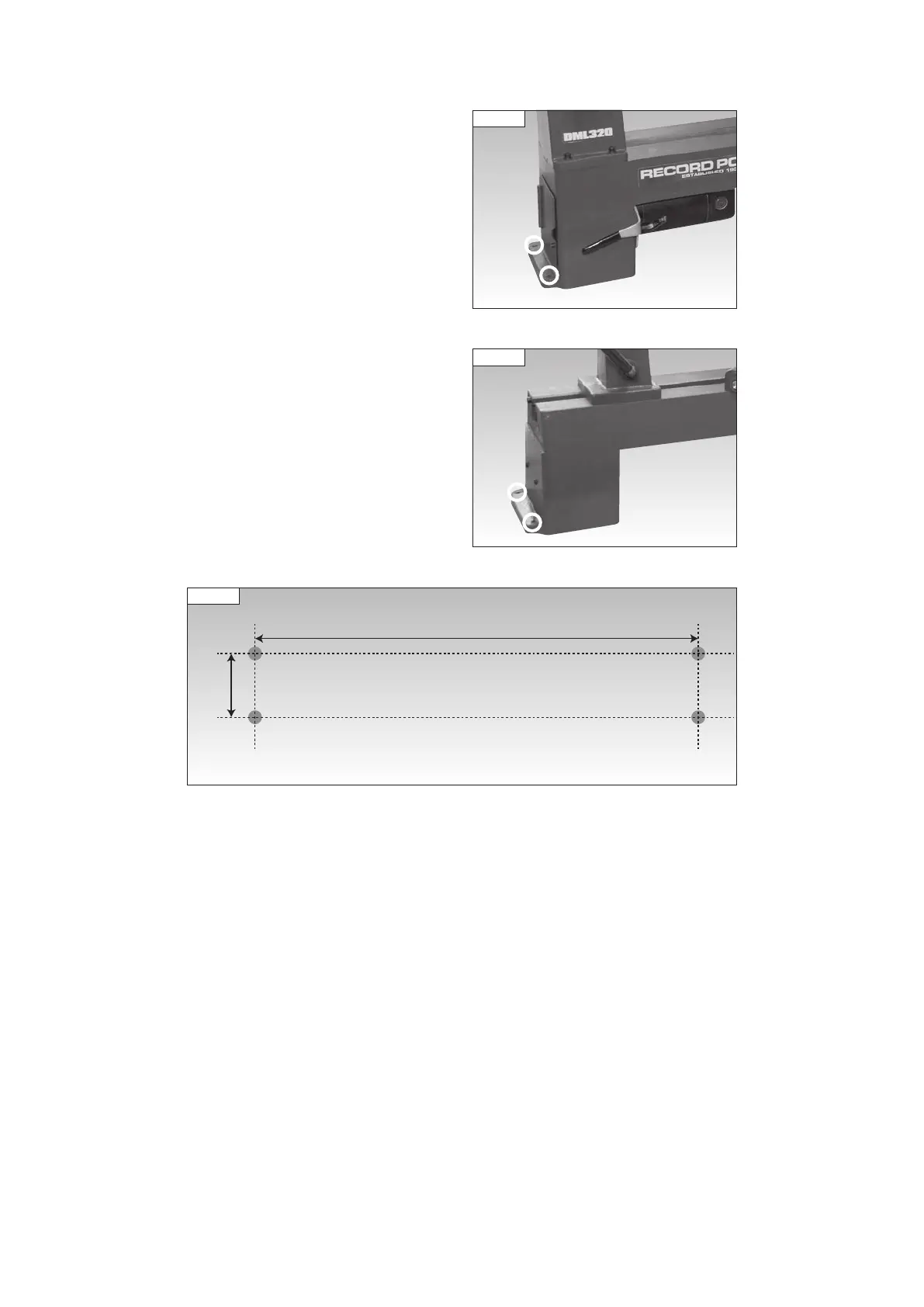

Fig 8.8
905 mm
130 mm
Secure the Lathe to a Solid Work Surface or Suitable Stand
The lathe must be attached to a solid work surface at least 25 mm thick, or a
suitable stand. Four mounting holes are located at the base of the lathe, 2 to
the left of the headstock, Fig 8.6, and 2 to the right of the tailstock, Fig 8.7.
If mounting to a bench, drill holes in the work surface, using a 9 mm (5/16”)
drill bit, following the measurements shown in Fig 8.8.
Please note: Use of the DML305/A Leg Stand is recommended.
Fig 8.6
Fig 8.7
To Next Page
