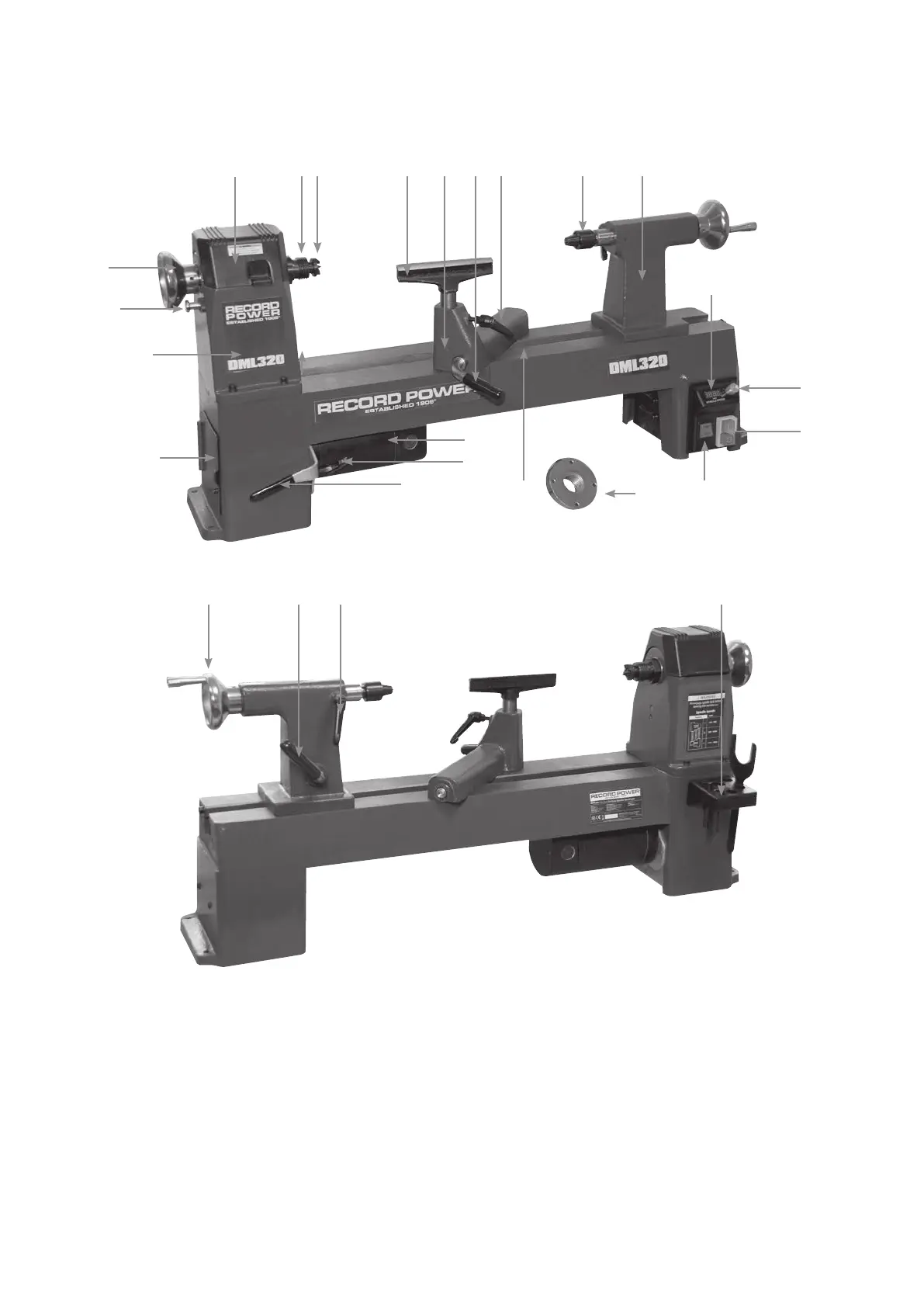

Record Power DML320 - Getting to Know Your Lathe

9
1 Motor
2 Motor securing lever
3 Motor positioning lever
4 Motor pulley access hatch
5 Headstock
6 Indexing lock
7 Hand wheel
8 Headstock cover
9 Spindle
10 4 prong drive centre
11 Tool rest
12 Tool rest holder
13 Tool rest holder locking lever
14 Tool rest locking lever
15 Revolving centre
16 Tailstock
17 Digital spindle speed readout
18 Spindle speed control knob
19 On / off switch
20 Forward / reverse switch
21 Faceplate
22 Lathe bed
23 Tailstock hand wheel
24 Tailstock locking lever
25 Tailstock spindle locking lever
26 Tool holder and tools
