Fitting the Bridge Guard & Bracket

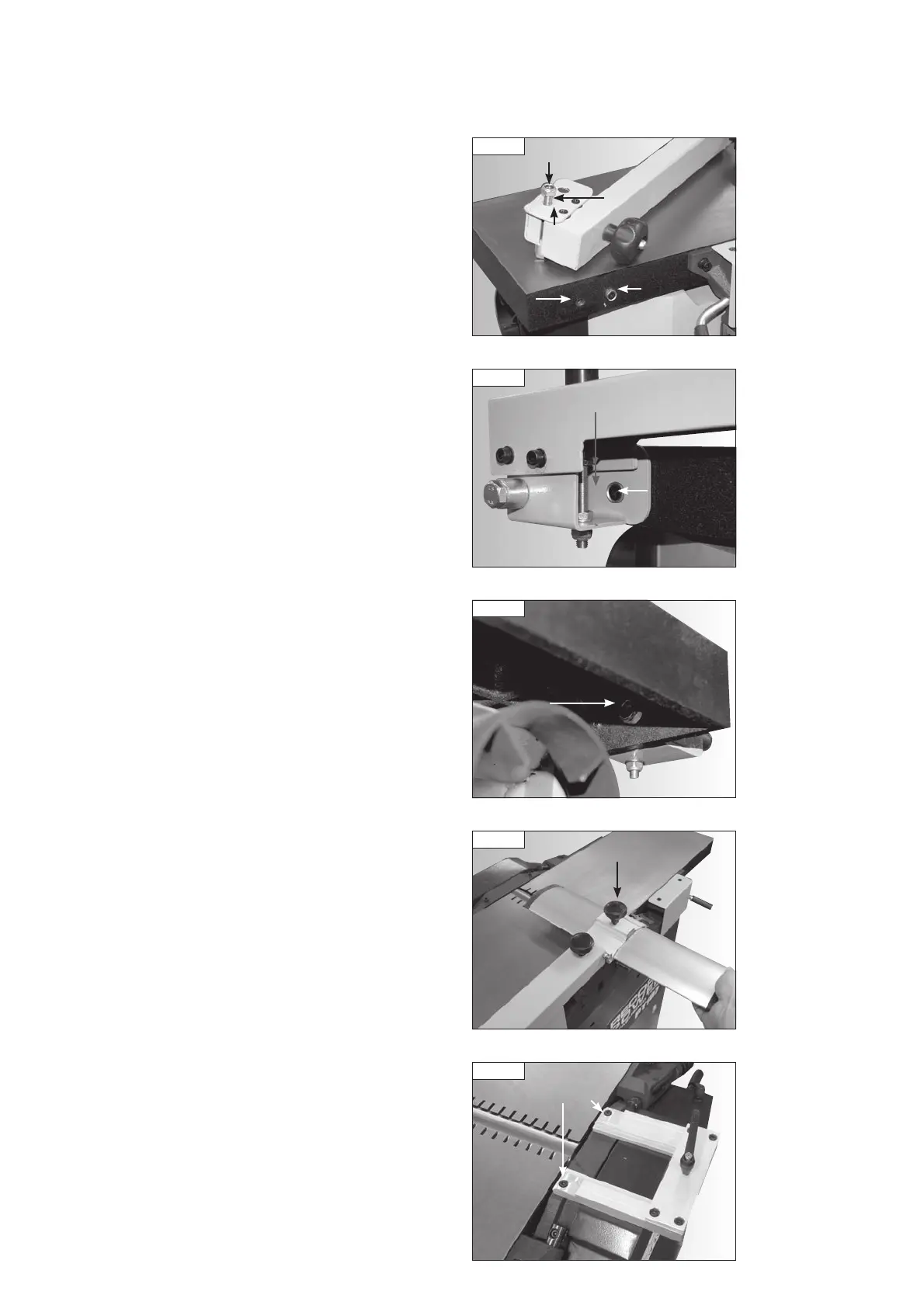

The bridge guard bracket is supplied with an M10 x 100 mm securing bolt,
spacer plate and nylon locking nut already fitted, Fig. 8.3. Remove the nut
and attach the bracket to the outfeed table by screwing the bolt into the
threaded hole in the outfeed table, locating the hole in the spacer plate over
the registration collar and securing with the nylon locking nut, Fig 8.4. To fit
the nut, access to the bolt is gained from the underside of the outfeed table,
Fig. 8.5.
Slide the bridge guard into the holder on the bracket as shown in Fig 8.6
and tighten the locking knob on top of the holder.
8. Assembly
Fig 8.7
Hex head
socket bolts
Fig 8.4
Spacer plate
Registration
collar
Fig 8.5
Table
Nylon
locking
nut
Fig 8.6
Locking knob
Fig 8.3
Securing
bolt
Nylon locking nut
Spacer
plate
Threaded
hole
Registration
collar
Fitting the Fence
Attach the fence carrier to the machine body using the 2 hex head socket
bolts as shown in Fig. 8.7.
