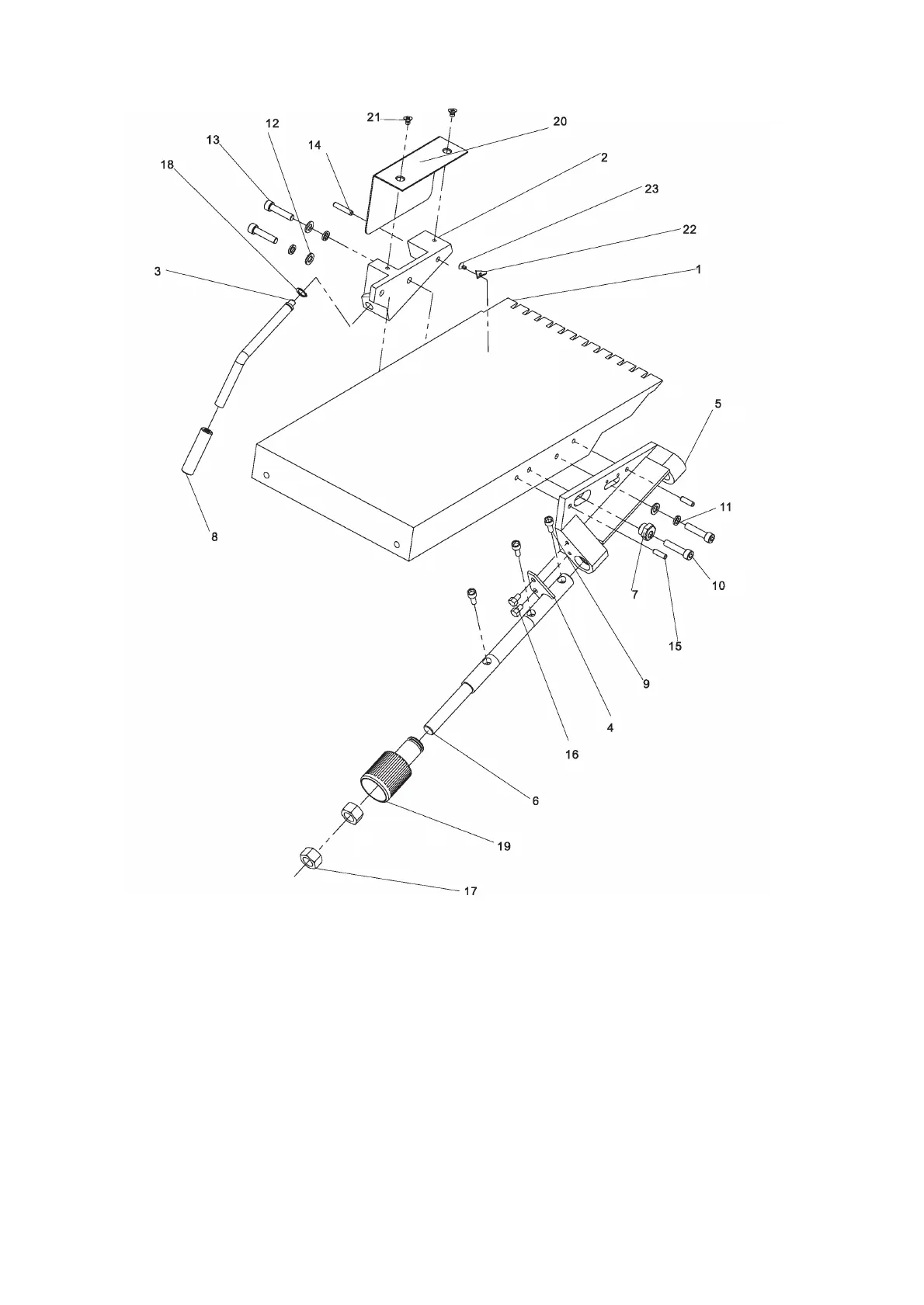

16. Parts Lists & Diagrams - cont.
NO. DESCRIPTION QUANTITY
1 Feed table, planer 1
2 Table lock seat 1
3 Table lock 1
4 Fork 1
5 Table swing seat 1
6 Table swing shaft 1
7 Eccentric seat 1
8 Sleeve, table lock 1
9 Hex screw M6 x 20 mm 3
10 Hex screw M8 x 30 mm 2
11 Spring washer 8 mm 3
12 Washer 8 mm 3
NO. DESCRIPTION QUANTITY
13 Hex screw M8 x 25 mm 2
14 Roll pin D6 x 30 mm 1
15 Roll pin D6 x 20 mm 2
16 Hex head screw M6 x 12 mm 2
17 Hex nut M16 2
18 Circle ring 12 mm 1
19 Handle, table swing 1
20 Shield plate 1
21 Cross sunk head screw M6 x 8 mm 2
22 Pointer 1
23 Pan head screw M4 x 8 mm 1
