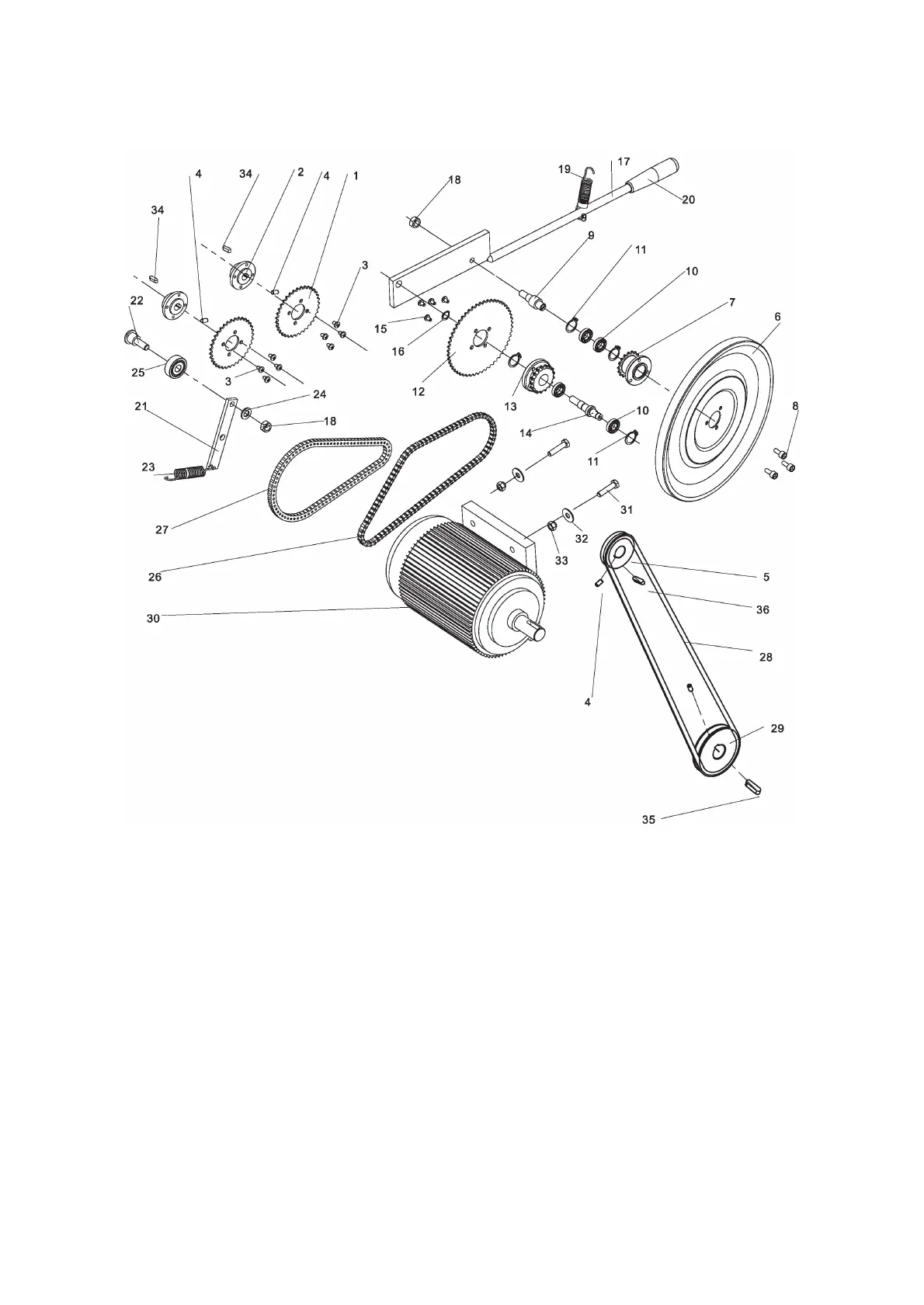

16. Parts Lists & Diagrams - cont.
NO. DESCRIPTION QUANTITY
1 Sprocket A 2
2 Flange 2
3 Pan head screw M5 x 8 mm 8
4 Set screw M6 x 6 mm 4
5 Shaft pulley 1
6 Friction wheel 1
7 Sprocket B 1
8 Hex screw M6 x 12 mm 3
9 Shaft, friction wheel 1
10 Bearing 61901 4
11 Circle ring 24 mm 4
12 Sprocket C 1
13 Sprocket D 1
14 Shaft, sprocket 1
15 Pan head screw M6 x 8 mm 4
16 Circle ring 12 mm 1
17 Lever, friction wheel 1
18 Hex nut M10 2
NO. DESCRIPTION QUANTITY
19 Spring 1
20 Handle, friction lever 1
21 Tension plate 1
22 Tension rod 1
23 Spring 1
24 Washer 10mm 1
25 Bearing 6303 1
26 Feeding chain 1
27 Chain 1
28 Belt XPZ1250 1
29 Motor pulley 1
30 Motor 1
31 Hex head screw w.flange M8 x 25 mm 4
32 Special flat washer 8 mm 4
33 Cap nut M8 4
34 Flat key 5 x 5 x 16 mm 2
35 Flat key 8 x 7 x 28 mm 1
36 Flat key 6 x 6 x 16 mm 1
