BACKPACK QUICKPLATE AND BACKPACK QUICKPLATE (SHORT)
The optional BACKPACK QUICKPLATE and BACKPACK QUICKPLATE (SHORT) attach to the back of the BACK-
PACK BASE PLATE to provide a compact RED BRICK configuration for your DSMC.
NOTE: BACKPACK BASE PLATE is required for use of the BACKPACK QUICKPLATE and the BACKPACK QUICK-
PLATE (SHORT).
BACKPACK QUICKPLATE CONNECTOR
The BACKPACK QUICKPLATE has one D-tap connector for auxiliary accessories (70 W max).
PIN DESCRIPTION
1 Ground
2 +12VDC

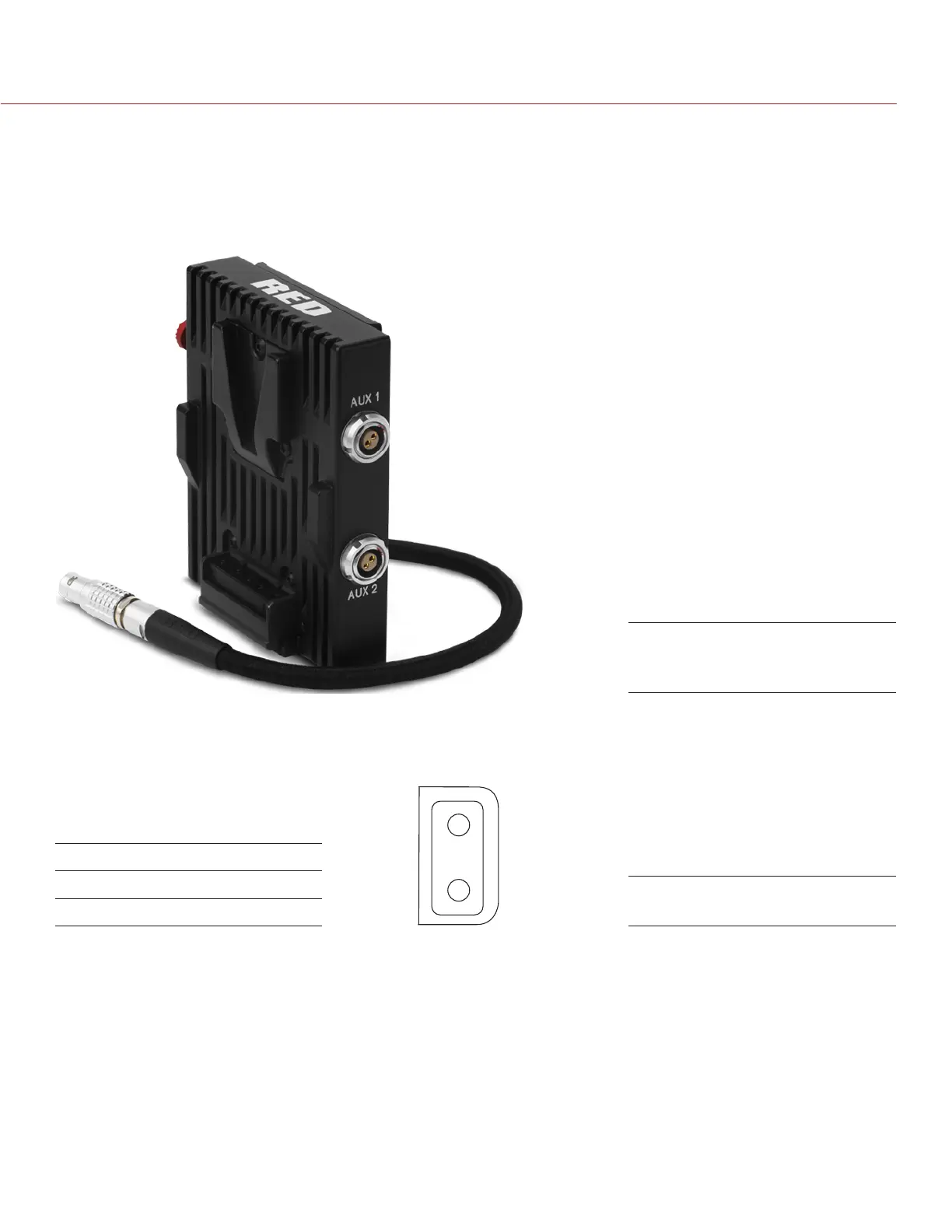

BACKPACK QUICKPLATE (SHORT) CONNECTORS
The BACKPACK QUICKPLATE (SHORT) has two 1B 2-pin auxiliary connectors that provide a maximum com-
bined output of 3.8 A. For example, if you’re pulling 2.0 A out of one port, you can pull up to 1.8 A out of the
other port.
BACKPACK QUICKPLATE
(SHORT)
2
1
D-tap Connector
