POWER CONSUMPTION
The camera draws approximately 60 watts when recording in 5K resolution, at 24 FPS in MOVIE mode. The
camera is cooled by convection from the camera body assisted by a fan contained in a sealed air duct.
Under typical operating conditions, a REDVOLT
®
battery will run the camera and accessories for about 30 min-
utes and a REDVOLT
®
XL battery will run the camera and accessories for about 90 minutes.
POWER DRAW
Power draw is prioritized as follows when multiple power sources are available to the camera:
1. DC (Voltage) or Brick (%)
2. Battery module batteries
3. REDVOLT battery in the DSMC SIDE HANDLE
POWER SOURCES

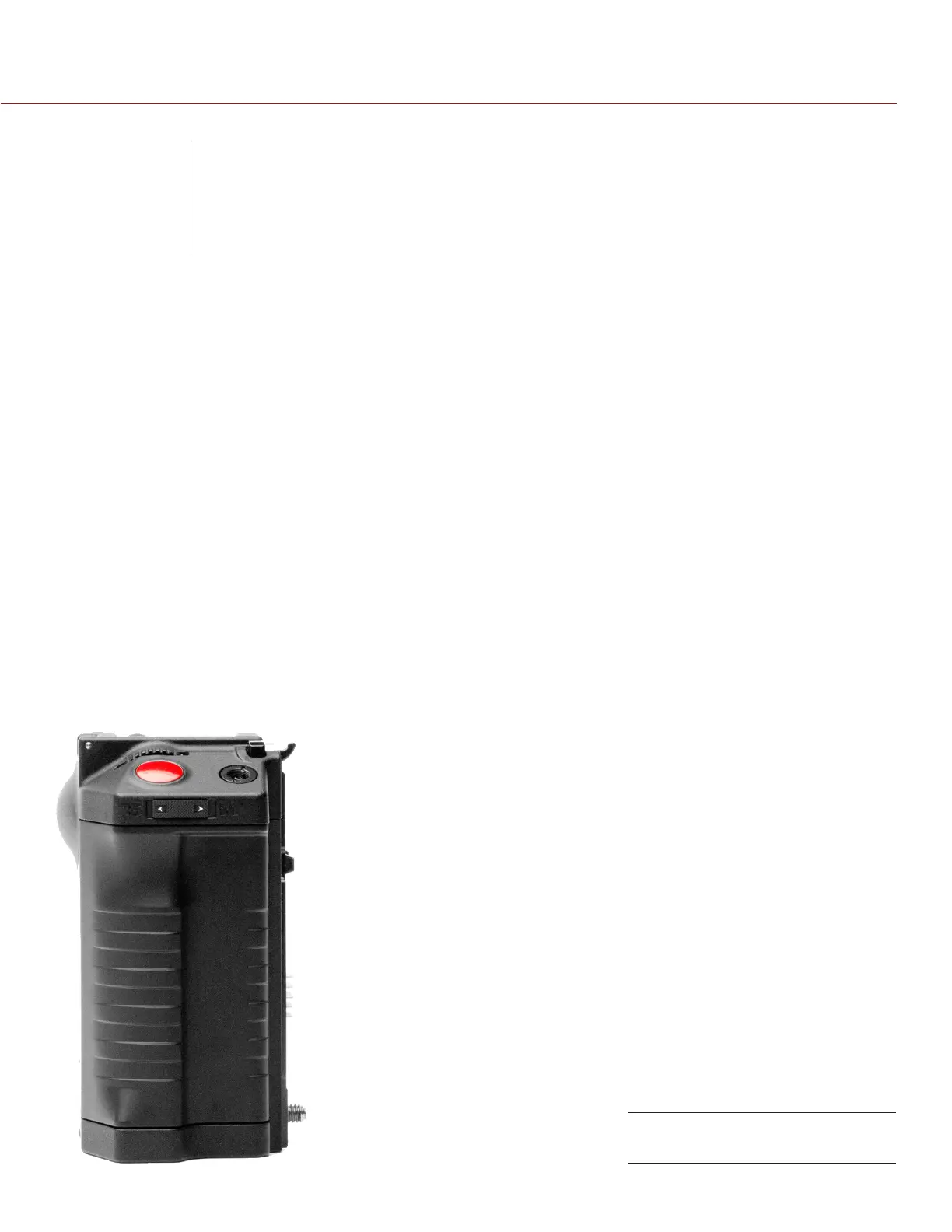

DSMC SIDE HANDLE: REDVOLT
The optional DSMC SIDE HANDLE accepts one REDVOLT.
DSMC SIDE HANDLE
03
POWER THE
DSMC
