INSTALLATION

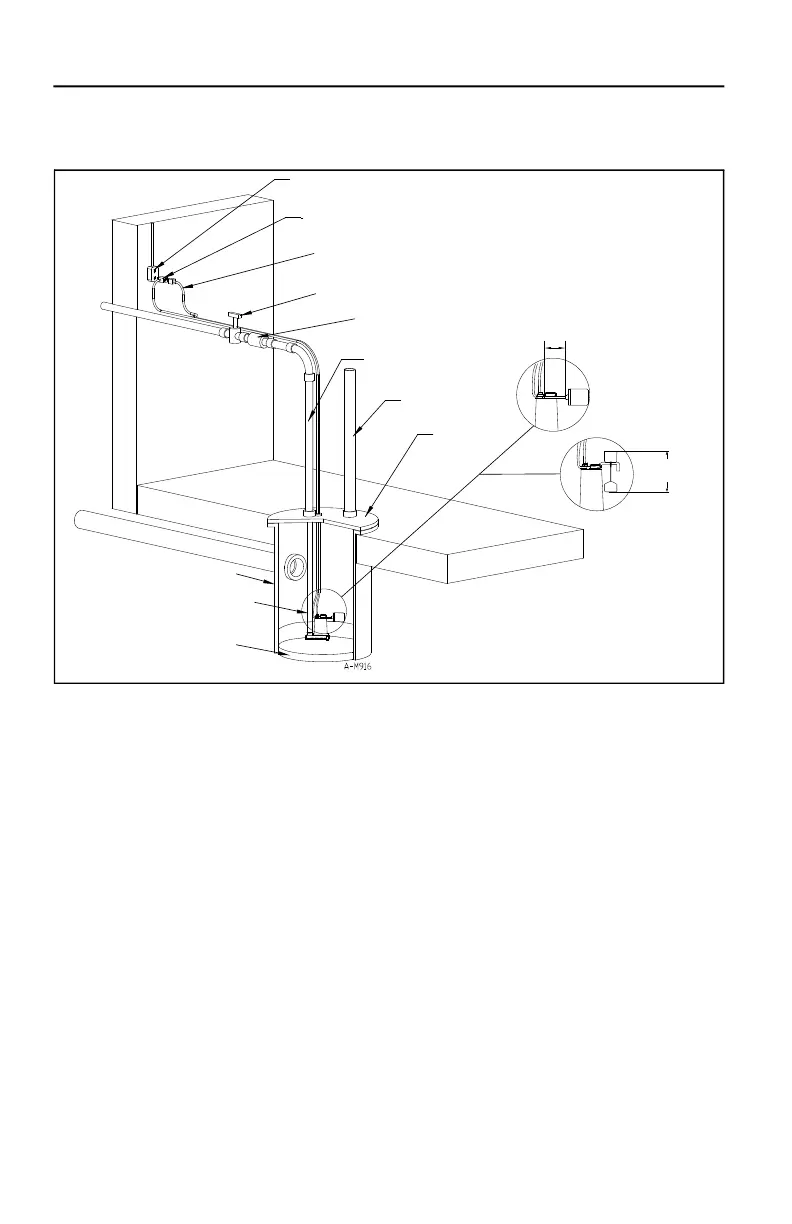

Typical Installation
4
INSTALLATION
Typical Installation
GAS-TIGHT BASIN
PLACE PUMP ON HARD, LEVEL
SURFACE. NEVER PLACE DIRECTLY ON
CLAY, EARTH, OR GRAVEL SURFACE
BASIN COVER
2” OR 3” VENT PIPE
(51 OR 76 mm)
DISCHARGE PIPE NO SMALLER
THAN PUMP OUTLET
CHECK VALVE
GATE VALVE
PUMP POWER CORD
FLOAT SWITCH POWER CORD
SEPARATE PROTECTED AND GROUNDED SERVICE OUTLET, 4’ FROM FLOOR MINIMUM
3/16” (4.8 mm) AIR BLEED HOLE IN DISCHARGE PIPE
O
TETHER LENGTH:
3-1/2” (89 mm)
On: 13” (330 mm)
O: 5” (127mm)
VERTICAL FLOAT SWITCH
On: 7” (178 mm)
O: 2.25” (57 mm)
