TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE
Motor will not start
No power to pressure switch due to blown fuses,
open switches or loose connections.
Pump pressure switch not closed.
Pump fails to
deliver water
Pump not completely primed.
Suction lift is too great.
Foot valve is either not submerged, buried in
the mud or plugged.
Restrictor valve is fully closed.
Pump loses prime
Air leaks in suction line.
Well draws down too far.
Faulty foot valve.
For well point
installations where
pump is losing
pressure or unable
to prime
Have an electrician install a low pressure cut-o switch
to shut down the pump prior to critical failure.
Install or adjust a restrictor valve to oset
available capacity.
Add a larger tank (20 gallon or larger) for
additional capacity.
PROBLEM POSSIBLE CAUSE
Pump delivers
water but not at
rated capacity
Leaks in suction or discharge line.
Foot valve, suction line, impeller or nozzle are
partially plugged.
Suction lift is greater than recommended.
Improper impeller rotation or low speed.
Venturi or diuser is plugged.
Motor is wired for improper voltage.
Low line voltage at motor.
Filtration cartridge (if used) needs changing or is not
installed properly.
Pump starts and
stops too often
Faulty air volume control.
Air leaks in tank above the water level.
Incorrect setting on pressure switch.
Tank is water logged or incorrectly charged.
Foot valve leaks or is stuck open.

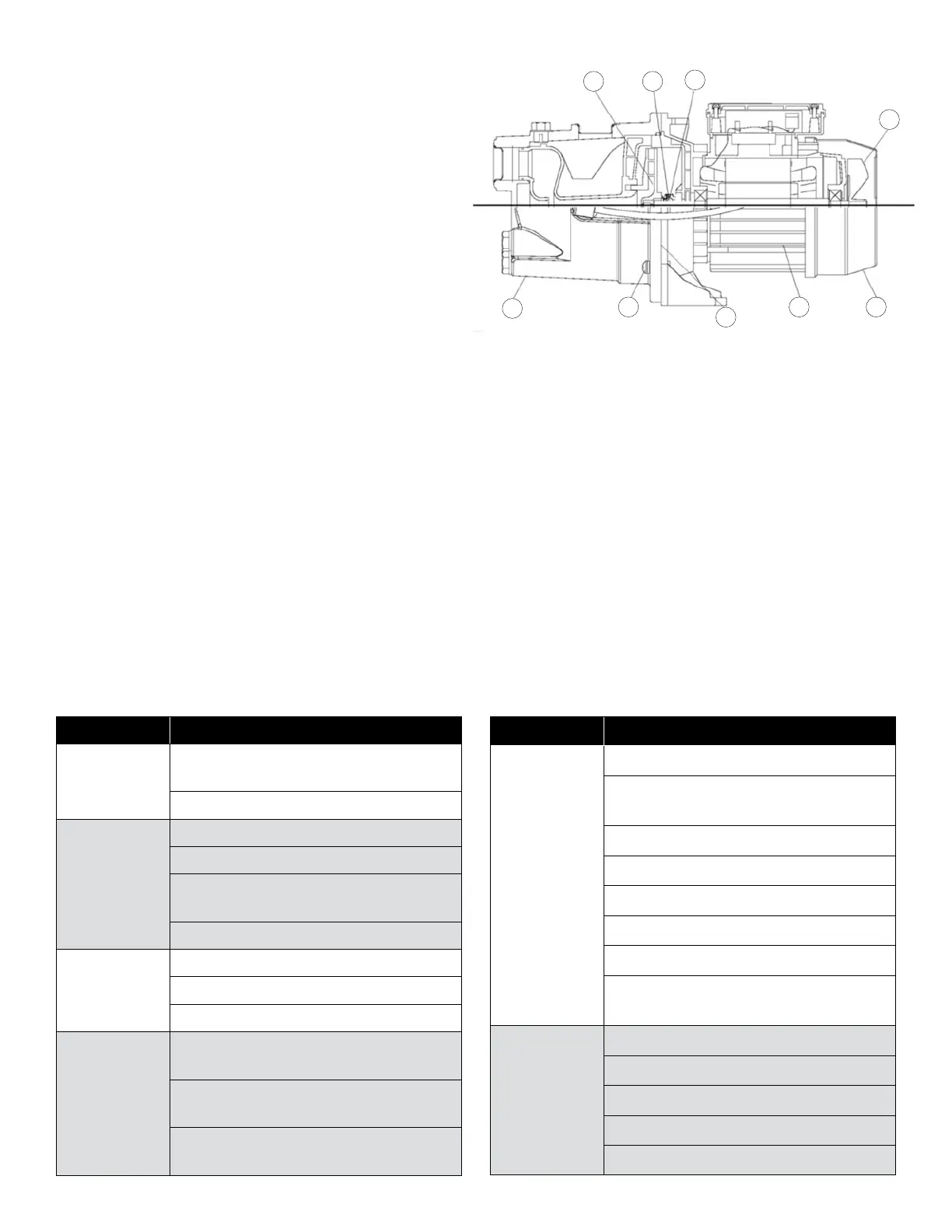

Figure 8
4 8
9
5
36
7
1
4
4. Lubricate the rubber components of the rotating seal (9) (soapy
water) and slip it on to the shaft with the ‘carbon’ ring towards
the ceramic seat.Replace the impeller (6) and the diuser (4).
s CAUTION
!
Care must be taken not to
contaminate the ceramic seal face.
5. Replace the impeller (4) and the shroud with fasteners.
Lubricate and replace the O-ring.
6. Replace the casing (2), making sure that O-ring is not damaged
and is in place.
7. Replace drain and fill plugs.
8. Reconnect power.
9. Prime the pump.
14
