red lion RL-SWJ Series User Manual

A12
A13
A10
A5
A3
A2
A4
A9
A6
A7
A8
A3
B9
B1
B1
B1
B3
B8
B2
B5
B7B6
B4
A1
A11
A14
A15
B10
B11
B12
B14
B13
Contents Item Replacement Parts Where Used
A5 & A10 305585001 Case/Seal Plate RL-SWJ50 & RL-SWJ75
A2, A3, A4 & A9 305585002 Hardware Kit RL-SWJ50 & RL-SWJ75
A6, A7 & A8 305585005 Overhaul Kit RL-SWJ50
A6, A7 & A8 305585006 Overhaul Kit RL-SWJ75
A7 305585008 Impeller Kit RL-SWJ50
A7 305585009 Impeller Kit RL-SWJ75
A8 305585011 Shaft Seal Kit RL-SWJ50 & RL-SWJ75
A1, A14 & A15 305585012 Pressure Switch Kit RL-SWJ50 & RL-SWJ75
B2 & B9 305585003 Case/Seal Plate RL-SWJ100
B1, B3 & B8 305585004 Hardware Kit RL-SWJ100
B5, B6 & B7 305585007 Overhaul Kit RL-SWJ100
B6 305585010 Impeller Kit RL-SWJ100
B7 305585011 Shaft Seal Kit RL-SWJ100
B4, B12 & B13 305585012 Pressure Switch Kit RL-SWJ100
C3, C4 305592001 Pump/Tank Hardware Kit RL-SWJ50/RL6H
C3
C4

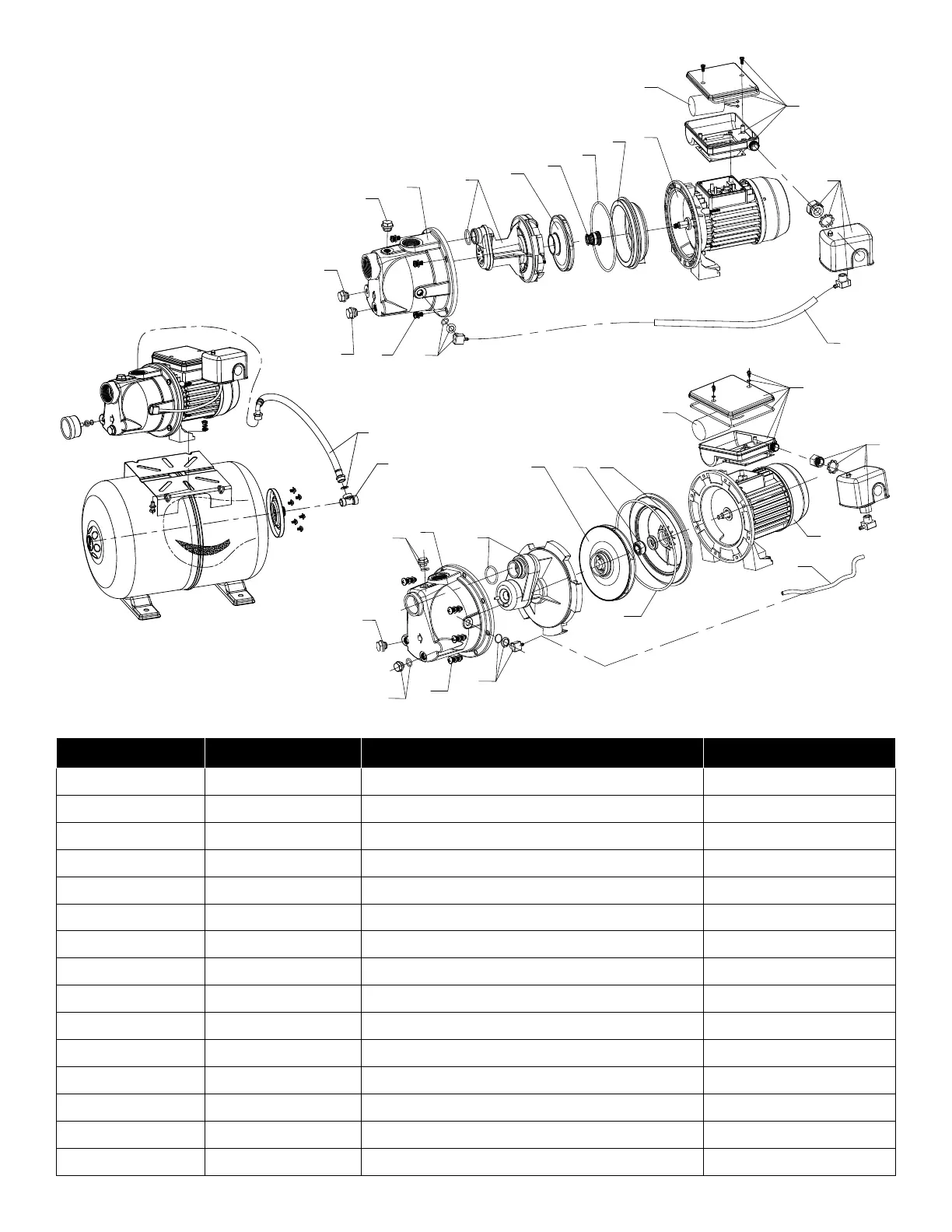

REPLACEMENT PARTS
15
