INSTALLATION
Physical Installation
5
INSTALLATION
Physical Installation

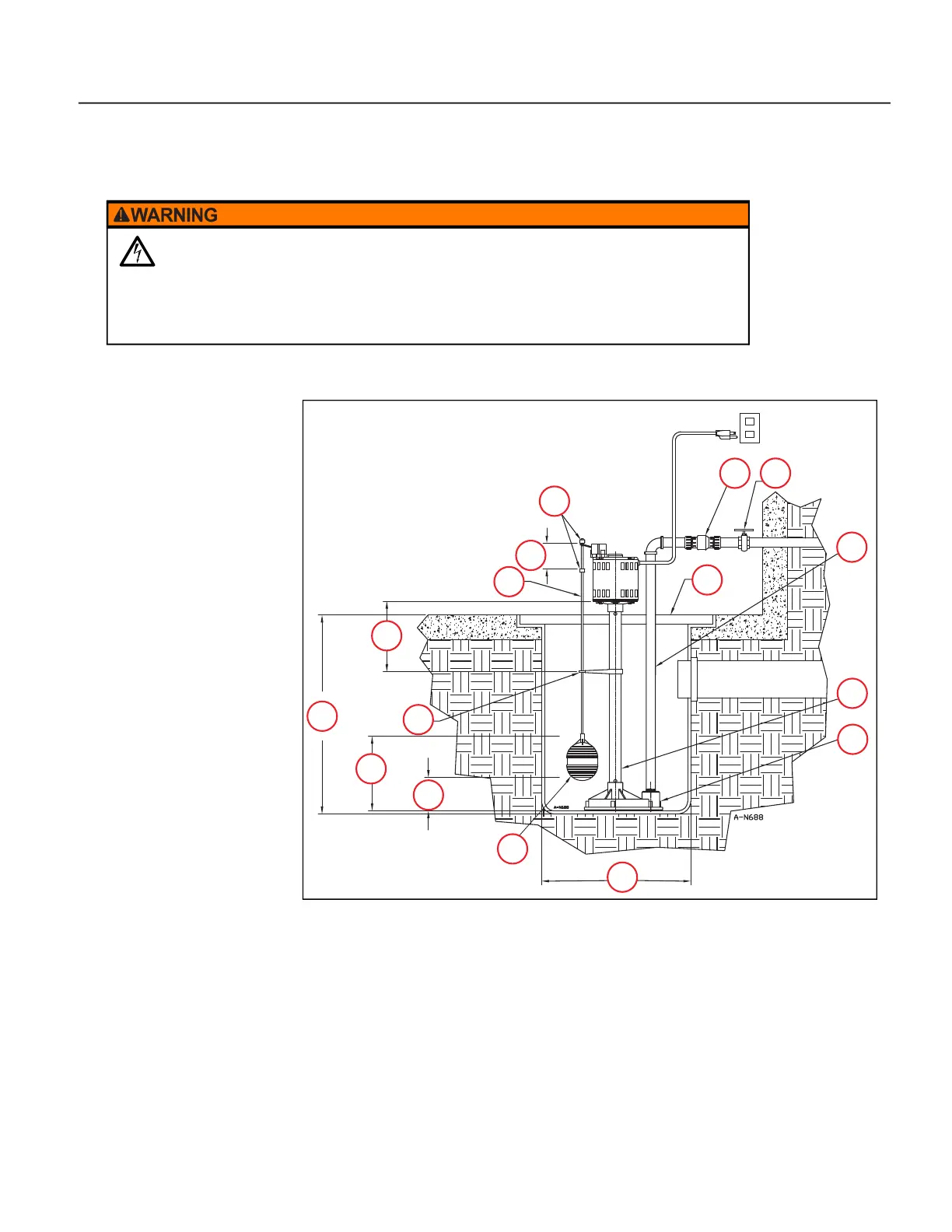

Typical Installation
1. Rubber Stoppers
2. 5.5” (140 mm) Maximum
3. Float Stem
4. Float Stem Guide
5. Float
6. Pump Base / Volute
Discharge
7. Pump Column
8. Discharge Pipe
9. Check Valve
10. Sump Pit Cover
(optional)
11. Ball or Gate Valve
12. Pump ON Level:
8-10” (203-254 mm)
13. Pump OFF Level:
3-5” (76-127 mm)
14. 8.5” (215 mm) Maximum
Basin Dimensions:
15. Basin Height
24” (610 mm) Maximum
18” (457 mm) Minimum
16. Basin Diameter:
13” (330 mm) Minimum
Risk of severe injury or death by electrical shock.
• Always disconnect the electrical power before touching the pump or discharge.
• Check local electrical and building codes before installation. The installation must be in accordance
with their regulations as well as the most recent National Electrical Code (NEC).
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
