13 - MAINTENANCE AND CLEANING

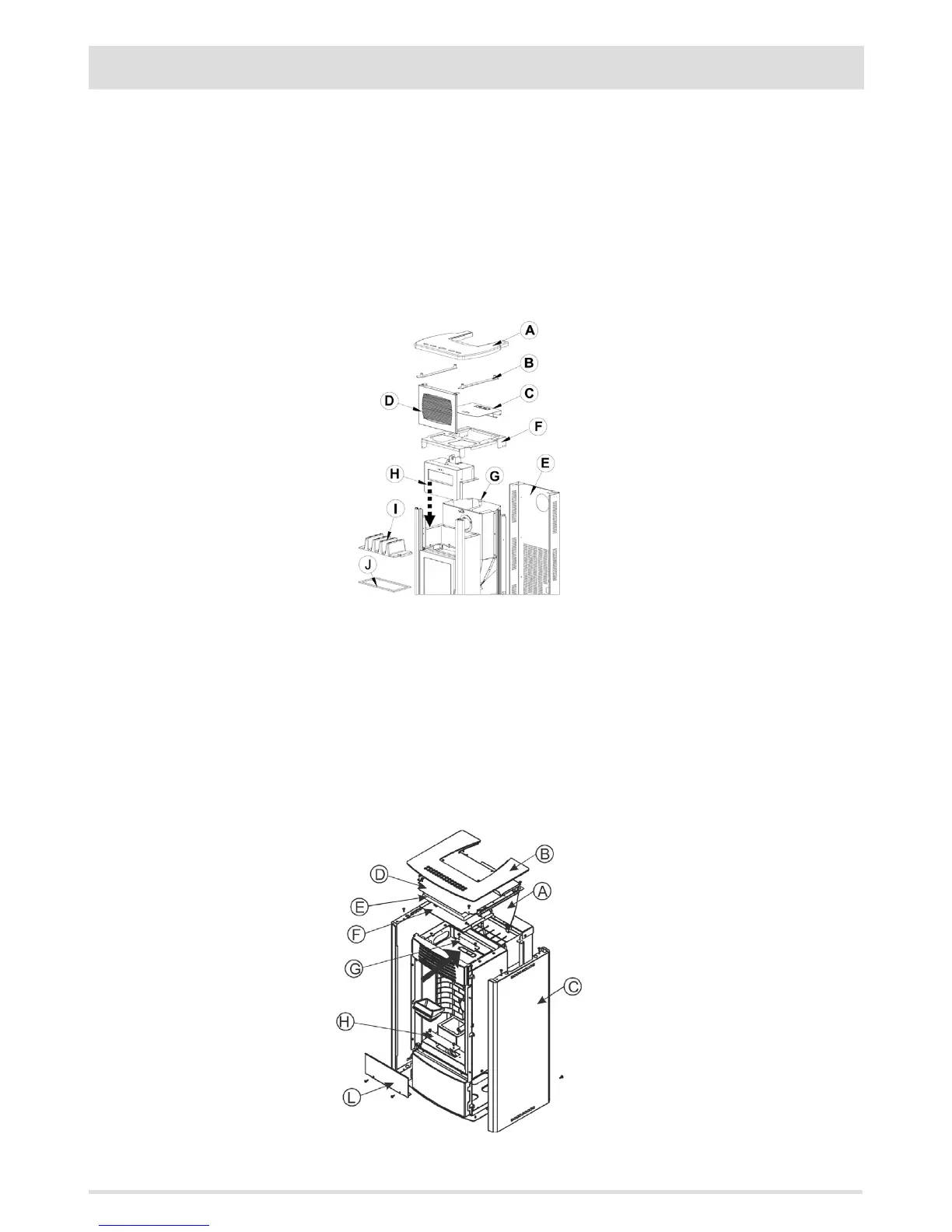

CLEANING THE UPPER COMPARTMENT OF ORCHIDEA/PRIMULA MULTIAIR STOVES
Remove the cast iron top “A” and the sides when the stove is cold. Remove the screws that block the supports of the top “B” and remove
the cast iron grid “D”. Lift the cover of the hopper “C” and remove the black screws that block it to the structure. Remove the back “E” by
unscrewing all the screws on the rear and upper parts. Remove the upper protection “F” by removing the screws secured to the back of the
hopper and those secured to the side uprights. Remove the nut that is in the end fork of the adjusting lever “G” and lift the upper casing
“H” by unscrewing the black screws that secure it to the side covers. Remove the exchanger “I” by unscrewing the screws that secure it
to the structure. Access the inspection hole to carry out the cleaning (see the dotted arrow): By using a sti rod or a bottle brush, scrape
the walls of the hearth in order to make the ash fall into the lower ash box. Clean and reassemble everything using a new head seal “J”.
CLEANING THE UPPER COMPARTMENT OF THE DALIA STOVE
Lift the cover "A" and remove the steel top “B”, which is simply placed on rubbers, when the stove is cold. Then remove the sides “C”.
Remove the other cover “D” that is secured to the structure with four screws (two at the front and two at the back) and then remove the
isolating panel “E” and panel “F” y removing the two screws on the right and the two screws on the left.
There is a small plate “G” on the underlying level secured with two screws; remove this piece too and access the inspection hole to carry
out the cleaning (see arrow).
By using a sti rod or a bottle brush, scrape the walls of the hearth in order to make the ash fall into the lower ash box. Clean and
reassemble everything.
