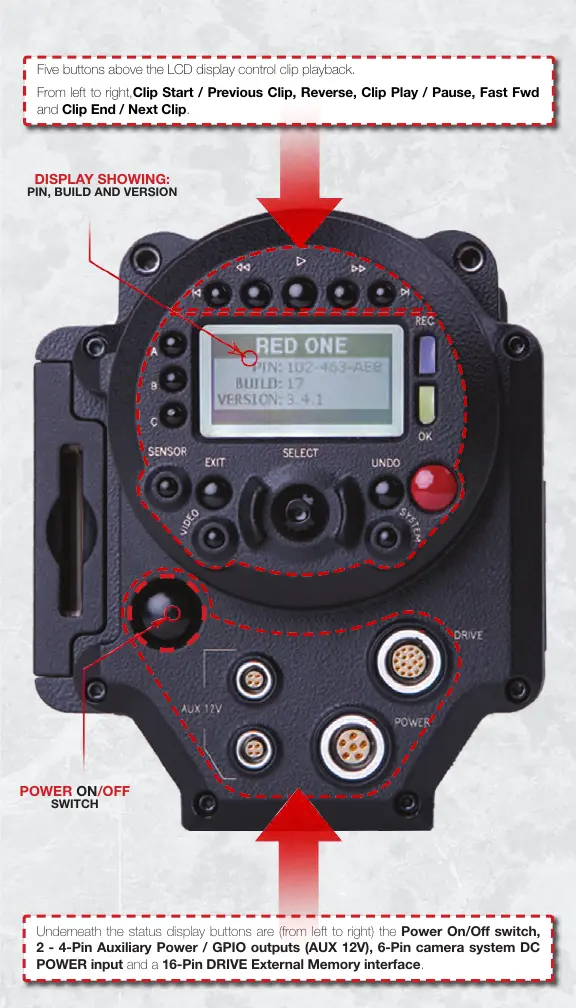

Five buttons above the LCD display control clip playback.

From left to right,Clip Start / Previous Clip, Reverse, Clip Play / Pause, Fast Fwd

and Clip End / Next Clip.

Underneath the status display buttons are (from left to right) the Power On/Off switch,

2 - 4-Pin Auxiliary Power / GPIO outputs (AUX 12V), 6-Pin camera system DC

POWER input and a 16-Pin DRIVE External Memory interface.

POWER ON/OFF

SWITCH

DISPLAY SHOWING:

PIN, BUILD AND VERSION
