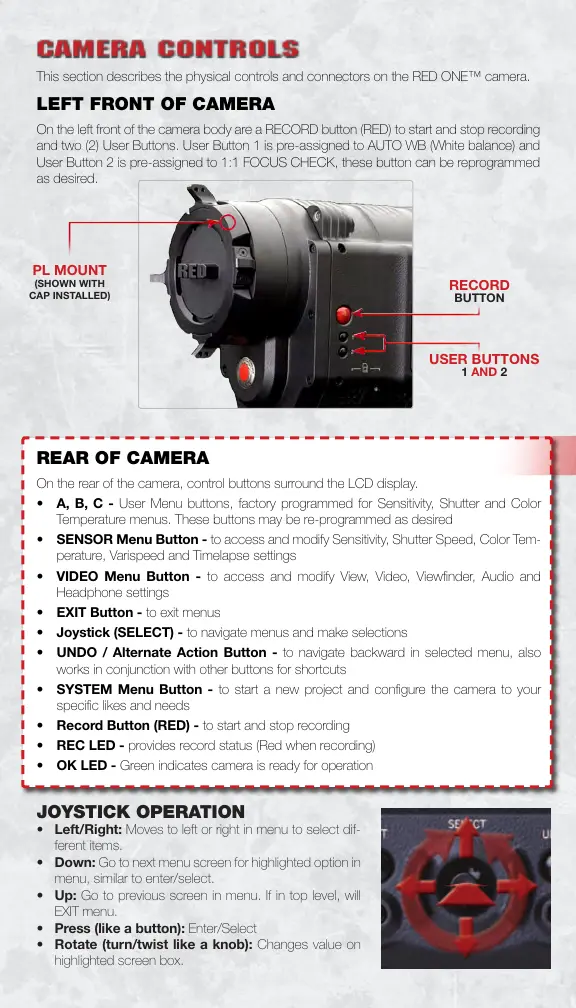

This section describes the physical controls and connectors on the RED ONE™ camera.
LEFT FRONT OF CAMERA
On the left front of the camera body are a RECORD button (RED) to start and stop recording
and two (2) User Buttons. User Button 1 is pre-assigned to AUTO WB (White balance) and
User Button 2 is pre-assigned to 1:1 FOCUS CHECK, these button can be reprogrammed
as desired.
REAR OF CAMERA
On the rear of the camera, control buttons surround the LCD display.
• A, B, C - User Menu buttons, factory programmed for Sensitivity, Shutter and Color
Tempe ratu re m enus . Th ese butt o ns m ay b e re -pro gram med as d esire d
• SENSOR Menu Button - to access and modify Sensitivity, Shutter Speed, Color Tem-
perature, Varispeed and Timelapse settings
• VIDEO Menu Button - to access and modify View, Video, Viewnder, Audio and
Headphone settings
• EXIT Button - to exit menus
• Joystick (SELECT) - to navigate menus and make selections
• UNDO / Alternate Action Button - to navigate backward in selected menu, also
works in conjunction with other buttons for shortcuts
• SYSTEM Menu Button - to start a new project and congure the camera to your
specic likes and needs
• Record Button (RED) - to start and stop recording
• REC LED - provides record status (Red when recording)
• OK LED - Green indicates camera is ready for operation
JOYSTICK OPERATION
• Left/Right: Moves to left or right in menu to select dif-
ferent items.
• Down: Go to next menu screen for highlighted option in
menu, similar to enter/select.
• Up: Go to previous screen in menu. If in top level, will
EXIT menu.
• Press (like a button): Enter/Select
• Rotate (turn/twist like a knob): Changes value on
highlighted screen box.
PL MOUNT
(SHOWN WITH
CAP INSTALLED)
RECORD
BUTTON
USER BUTTONS
1 AND 2
