RED ONE User Manual

Copyright RED Digital Cinema Nov 12 2008
68
Pin:
Signal
Description
Direction
1
Ground
Camera ground
-
2
TIMECODE_IN_P
Serial timecode input, positive
In
3
TIMECODE_IN_N
Serial timecode input, negative
In
4
-
- No connect -
-
5
TIMECODE_OUT
Serial timecode output
Out
Aux 232 Port
The Auxiliary / RS232 port provides up to 500mA of regulated +12V power to motorized 2/3” B4
mount lenses. The two inputs labeled SW1 and SW2 are GPI signals that activate Record Start /
Stop and Playback of the last recorded clip respectively. These are typically triggered by the B4
lens, or by a controller such as Preston MDR-2 using an appropriate adaptor cable.
Note: Do not attempt to power a cinema lens motor from this connector. Depending on
your max current requirement, extract power from either one of the two Auxiliary Power
outputs, or the D-Tap connector on the battery V-Plate.
Mating connector: LEMO FHG.1B.310.CLAD62Z
5
10
8
2
9
7
6
4
3
1

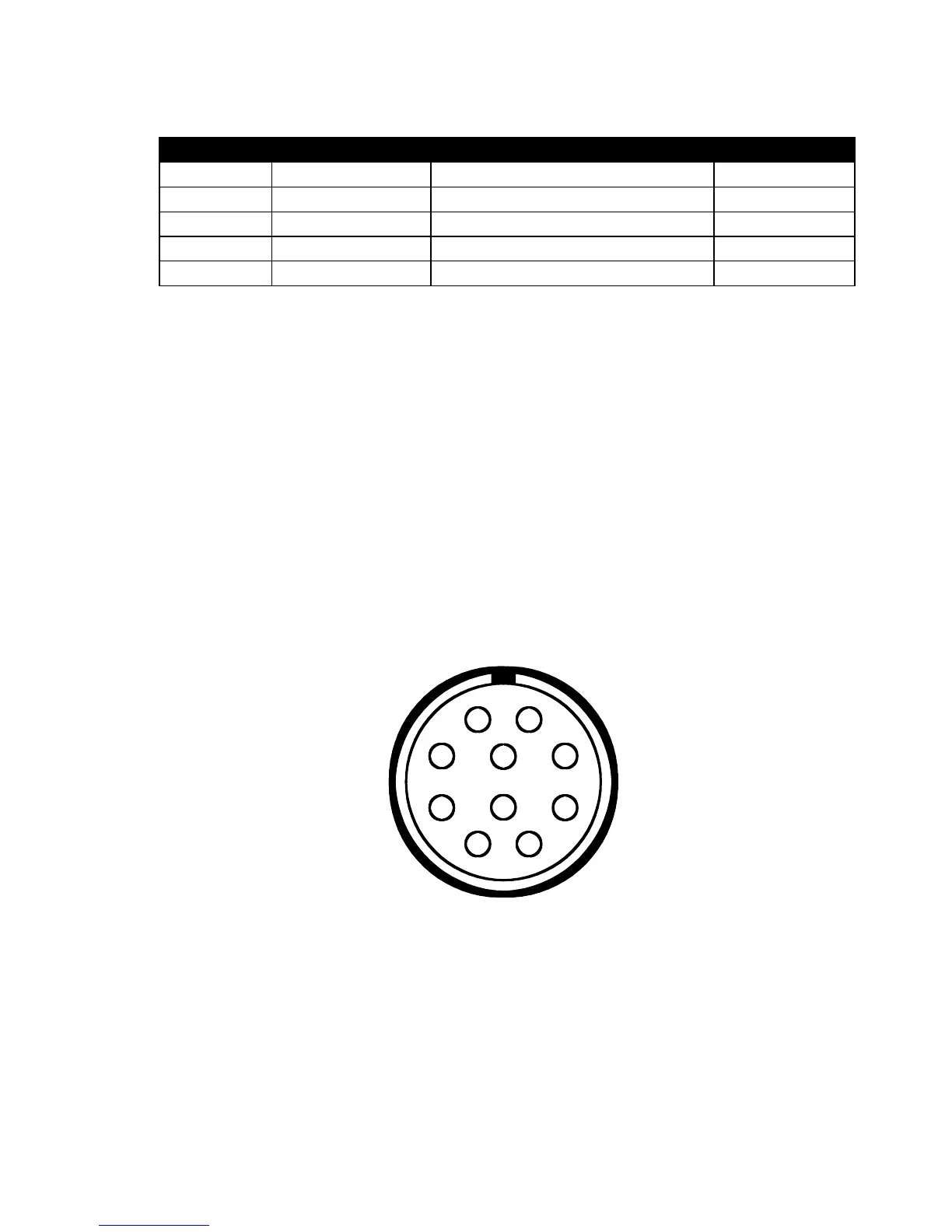

View into camera Auxiliary / RS232 connector

RED ONE Specifications

General

Frame Rates	1-120 fps
Lens Mount	PL Mount
Recording Format	REDCODE RAW
Sensor Size	24.4mm x 13.7mm
Resolution (pixels)	4520 x 2540
Video Output	HD-SDI
Weight	10 lbs (body only)
Recording Media	CF card
